PR 6Y22CH B - Poulan Pro Walk-Behind Mower (2000-12) Drive Parts Diagram

Walk-Behind Mower

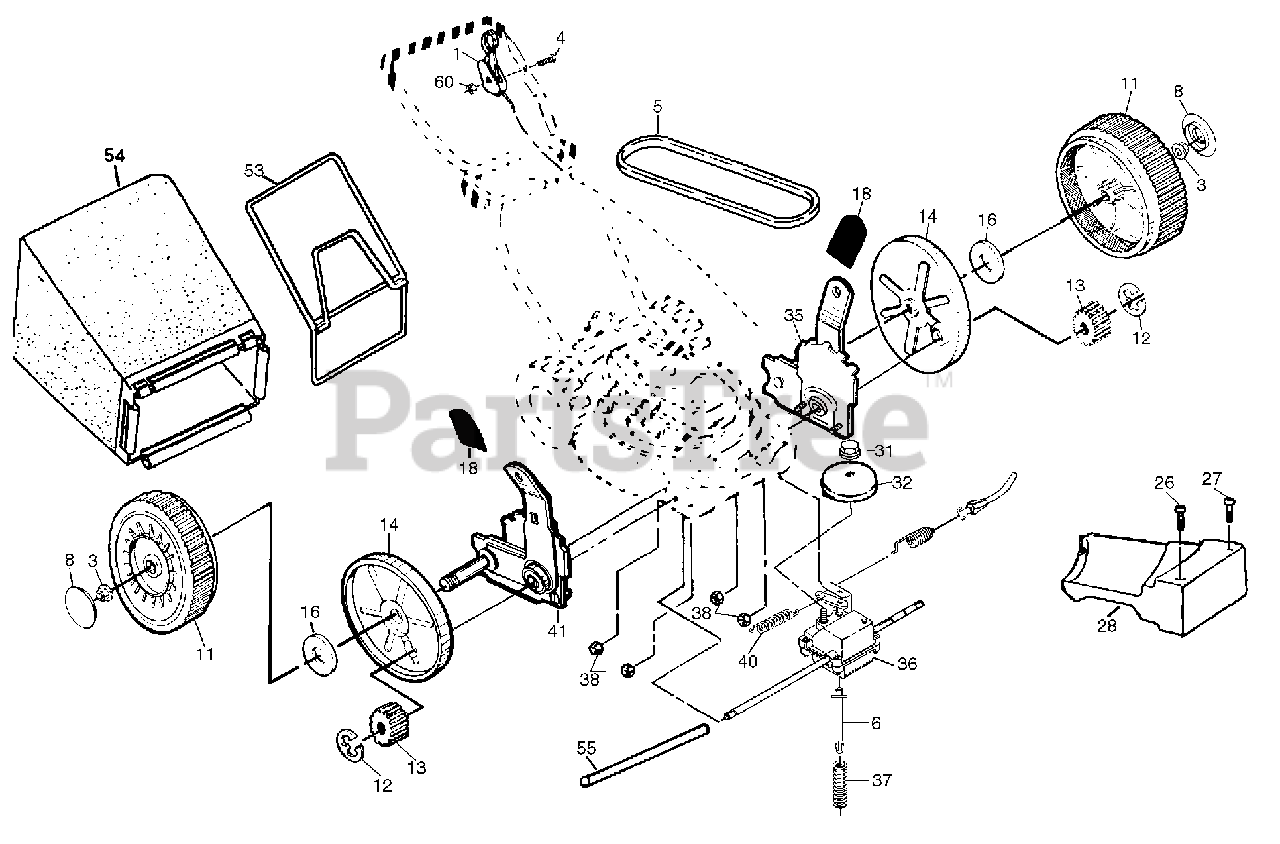

Drive Parts Diagram

  • Title
1

Electrolux/AYP 170296

Control Cable Assembly
(Superseded to 583135001)

$66.99

$

Usually ships in 3-10 days

0

3

Murray 145212

Flanged Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 158755

Hex Washer Head Screw 1/4-20 x 2.12
(Superseded to 532158755)

$

$

Not available

$

$

Not available

6

Electrolux/AYP 150495

Spring Retainer
(Superseded to 532150495)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 77400

Hubcap
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

11

Electrolux/AYP 170263

Wheel & Tire Assembly
(Superseded to 532193144)

$

$

Not available

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 137054

Pinion
(Superseded to 532137054)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 88080

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 67725

Washer 1/2 x 1-1/2 x .134
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 170143

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 146072

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532146072)

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 149746

Pan Head Screw #10-24 x 1- 3/4
(Superseded to 532149746)

$7.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 170151

Drive Cover
(Superseded to 583036801)

$

$

Not available

31

Electrolux/AYP 132010

Hex Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 137052

Drive Pulley
(Superseded to 532194126)

$

$

Not available

35

Electrolux/AYP 172291

Wheel Adjuster Assembly (Left)
(Superseded to 532172291)

$36.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 702511

Gear Case Assembly

$

$

Not available

37

Electrolux/AYP 137090

Spring
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

38

Electrolux/AYP 63601

Locknut 1/4-20

$

$

Not available

40

Electrolux/AYP 75192

Spring
(Superseded to 532075192)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 172290

Wheel Adjuster Assembly (Right)
(Superseded to 532172290)

$

$

Not available

53

Electrolux/AYP 169931

Frame Assembly
(Superseded to 532169931)

$54.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 175472

Grass Catcher
(Superseded to 583142901)

$

$

Not available

55

Electrolux/AYP 86012

Driveshaft Cover

$

$

Not available

60

Electrolux/AYP 751152

Nut
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0
