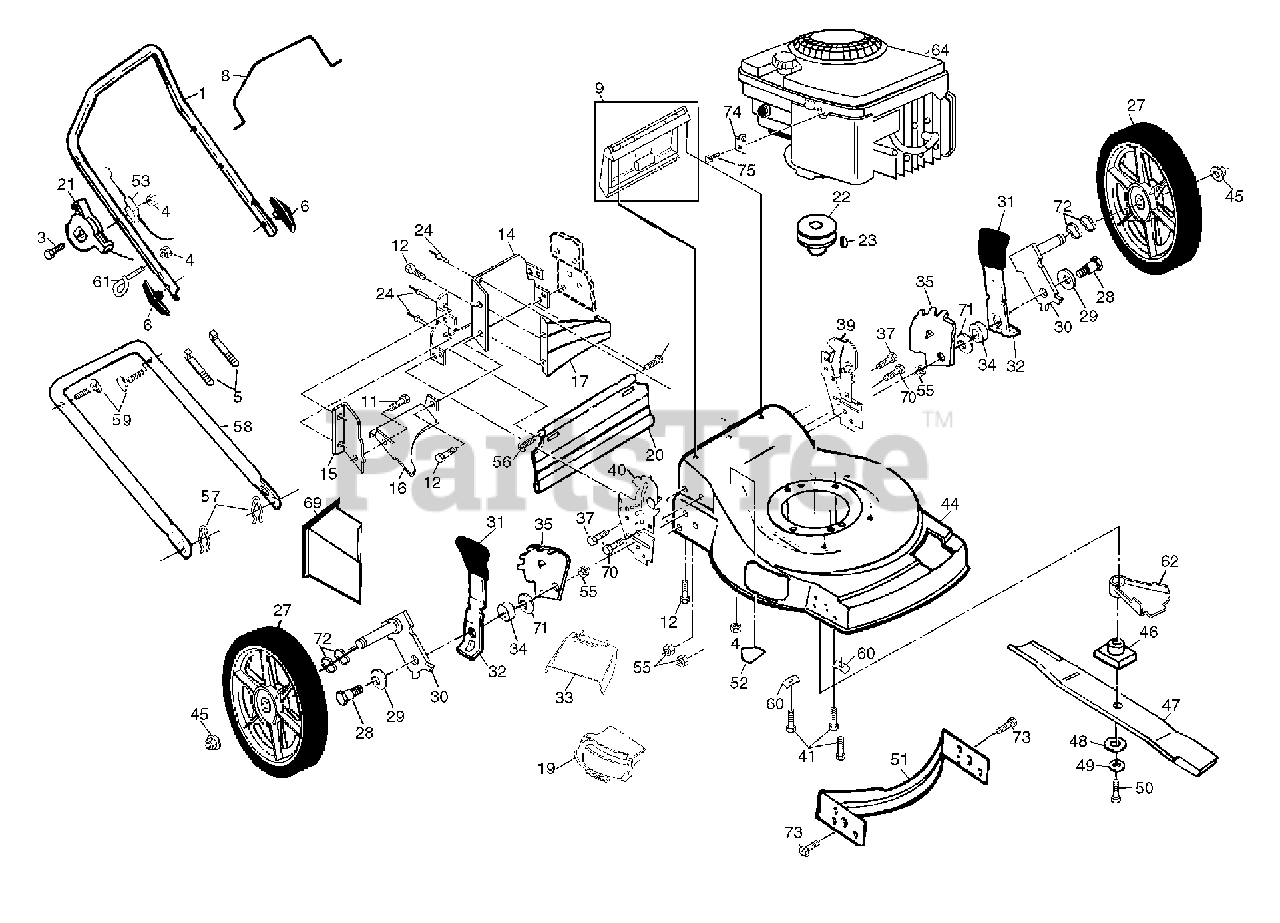

PR 6Y22CH A - Poulan Pro Walk-Behind Mower (1999-12) Frame Parts Diagram

Walk-Behind Mower

Frame Parts Diagram

  • Title
1

Electrolux/AYP 166862X479

Upper Handle
(Superseded to 532166862)

$84.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 144929

Hex Washer Head Screw 1/4-20 x 2-1/8
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 63601

Locknut 1/4-20

$

$

Not available

5

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 170146

Handle Knob
(Superseded to 532183724)

$

$

Not available

8

Electrolux/AYP 170287

Control Bar
(Superseded to 583678201)

$

$

Not available

9

Electrolux/AYP 151023

Rear Door Kit
(Superseded to 532151023)

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 150050

Self Tapping Screw #10-24 x 5/8
(Superseded to 532150050)

$4.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 54583

Hex Tapping Screw w/Sems 1/4-20 x 1/2
(Superseded to 532054583)

$

$

Not available

$

$

Not available

15

$

$

Not available

16

Electrolux/AYP 133190X479

Discharge Baffle

$

$

Not available

17

Electrolux/AYP 133040X479

Rear Baffle
(Superseded to 532133040)

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 148195

Combi-cut Door
(Superseded to 532147738)

$30.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 140540

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 173489

Throttle Control
(Superseded to 532700637)

$

$

Not available

22

Electrolux/AYP 84596

Engine Pulley
(Superseded to 532084596)

$34.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 87677

Hi-Pro Key #505
(Superseded to 532087677)

$

$

Not available

24

Electrolux/AYP 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 170258

Wheel
(Superseded to 532170258)

$84.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 142748

Shoulder Bolt 3/8-16 x 1-3/8
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

29

Electrolux/AYP 61651

Spring Washer

$2.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 750913X004

Axle Arm Assembly
(Superseded to 532750913)

$

$

Not available

31

Electrolux/AYP 170143

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

32

Electrolux/AYP 700331X004

Selector Spring
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 145285

Clip-on Discharge Deflector
(Superseded to 532145285)

$

$

Not available

34

Electrolux/AYP 146630

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

35

Electrolux/AYP 700325X007

Wheel Adjusting Bracket
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

37

Electrolux/AYP 150078

Thread Cutting Screw w/Sems 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

39

Electrolux/AYP 161814X479

Handle Bracket Assembly (Left)
(Superseded to 532161814)

$9.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 161812X479

Handle Bracket Assembly (Right)

$

$

Not available

41

Electrolux/AYP 150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 172287

Lawn Mower Housing

Note: (Incl. Key Nos. 14, 15, 51 & 52)

$108.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 83923

Flanged Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

46

Electrolux/AYP 851514

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 141114

Blade 22"
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

49

Electrolux/AYP 850263

Helical Washer
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 170557

Front Baffle Kit
(Superseded to 532170557)

$34.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 107339X

Danger Decal
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 130861

Cable
(Superseded to 532130861)

$

$

Not available

55

Electrolux/AYP 751592

Locknut 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 88652

Hinge Screw 1/4-20 x 1-1/4
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

57

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 151721X479

Lower Handle
(Superseded to 532175245)

$

$

Not available

59

Electrolux/AYP 131959

Handle Bolt
(Superseded to 532183724)

$

$

Not available

$

$

Not available

61

Electrolux/AYP 132001

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

62

Electrolux/AYP 134612

Debris Shield

$

$

Not available

64

Engine-Briggs and Stratton 12H802

Note: Order parts from engine manufacturer

$

$

Not available

69

Electrolux/AYP 166649

Mulcher Plug
(Superseded to 532166649)

$

$

Not available

70

Electrolux/AYP 74760612

Bolt
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

71

Electrolux/AYP 88348

Washer
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

72

Electrolux/AYP 57143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

73

Electrolux/AYP 17600406

Screw Hx Serrated 1/4 x 20.TT
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 111190X

Clamp
(Superseded to 532111190)

$

$

Not available

75

Electrolux/AYP 83816

Screw
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 172787

Operator's Manual (English)

$

$

Not available

75

Electrolux/AYP 172788

Operator's Manual (French)

$6.49

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 162300

Warning Decal
(Superseded to 532162300)

Note: (Not Shown)

$

$

Not available

75

Electrolux/AYP 172289

Repair Parts Manual
(Superseded to 917172289)

$4.99

$

Usually ships in 3-10 days

0
