PR 675 Y22RHPE (961420136-00) - Poulan Walk-Behind Mower (2016-01) DRIVE Parts Diagram

Walk-Behind Mower

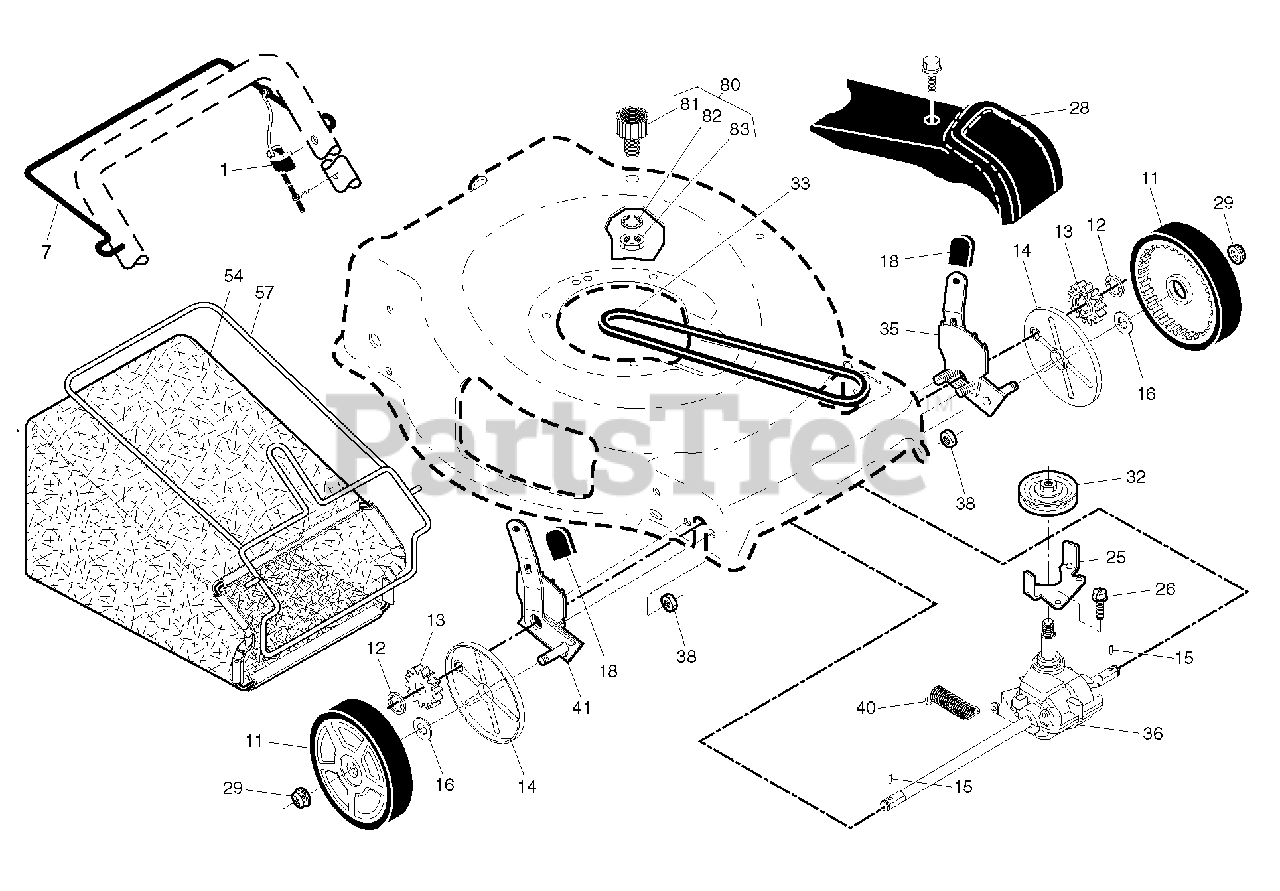

DRIVE Parts Diagram

  • Title
1

Poulan 532420562

CABLE.DRIV.DUAL.LEVER.BAIL.FGD

$34.99

$

Usually ships in 3-10 days

0

7

Poulan 532435281

BAIL.DRIVE.S/S.ROUND.MARI.21

$12.99

$

In Stock, only 1 left!

0

11

Poulan 581009205

WHEEL.8X1.75.5SPK.RAD.YELLOW
(Superseded to 581009201)

$34.99

$

In Stock, only 2 left!

0

12

Poulan 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

14

Poulan 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, only 1 left!

0

15

Poulan 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

16

Poulan 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

18

Poulan 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

25

Poulan 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP
(Superseded to 532430458)

$

$

Not available

26

$7.49

$

In Stock, Qty 6

0

28

Poulan 587997801

COVER.DR.ASM.22+FGD.GENERIC

Note: Includes Mounting Screw Pushnut

$20.99

$

Usually ships in 3-10 days

0

29

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Poulan 586989701

PULLEY.DRIVEN.EZ/VARI (2 2MC)

$7.49

$

Usually ships in 3-10 days

0

33

Poulan 532196853

BELT.DRIVE.FGD.

$20.99

$

Usually ships in 3-10 days

0

35

Poulan 581497907

Adjuster Assembly Kit, LH Front

Note: FRONT LEFT

$

$

Not available

36

Poulan 532424741

TRANSMISSION.22+.FWGD.SS
(Superseded to 589600601)

$125.99

$

In Stock, only 2 left!

0

38

Poulan 532438130

NUT.FLANGE.1-4-20-SERR
(Superseded to 596041001)

$3.99

$

In Stock, Qty 20+

0

40

$8.99

$

In Stock, Qty 7

0

41

Poulan 581497908

Adjuster Assembly Kit, RH Front

Note: FRONT RIGHT

$22.99

$

In Stock, Qty 8

0

54

Poulan 580947309

GBAG.A1640416S.BLK.PPRO.MRG.
(Superseded to 580947302)

$

$

Not available

57

Poulan 585054702

Grass Bag Frame, 22+ Black

$34.99

$

In Stock, Qty 6

0

80

Poulan 532421114

KIT.WASH-OUT.PORT

$24.99

$

In Stock, only 2 left!

0

81

Poulan 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

82

Poulan 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

83

Poulan 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0
