PR 675 Y22 (961420107-00) - Poulan Pro Walk-Behind Mower (2012-03) FRAME ENGINE Parts Diagram

Walk-Behind Mower

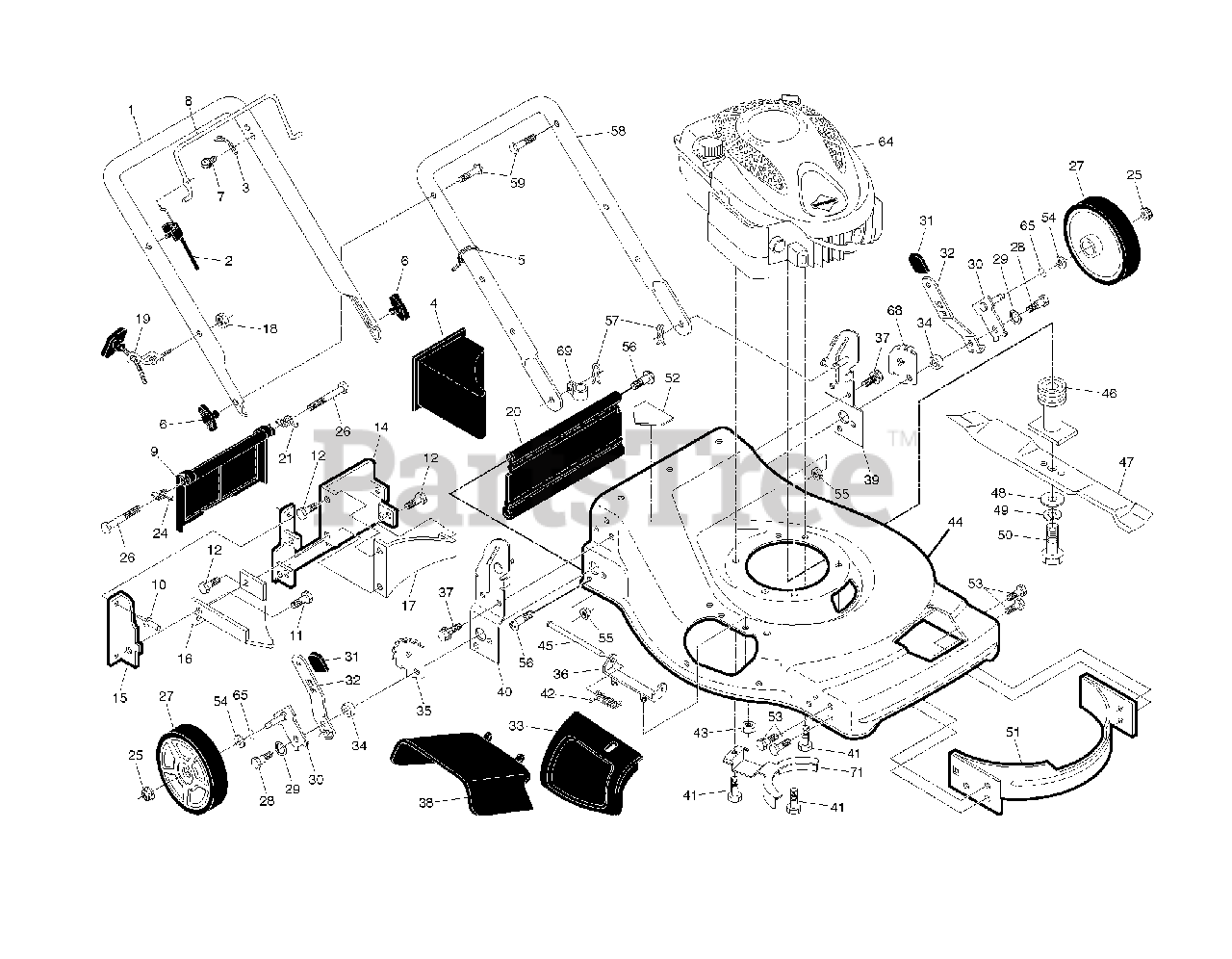

FRAME ENGINE Parts Diagram

  • Title

1

Poulan 532427738

HANDLE.UP.DSTR.FG/RGD.BLACK

$30.99

$

Usually ships in 3-10 days

0

2

Poulan 532183567

CABLE.MZR

$17.99

$

In Stock, only 2 left!

0

3

Poulan 532125162

(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

4

Poulan 532166649

PLUG.MULCH.22RD

$

$

Not available

5

Poulan 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

6

Poulan 532445019

KNOB.WING.PLASTIC.BLACK
(Superseded to 532185577)

$9.49

$

In Stock, Qty 13

0

7

Poulan 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

8

Poulan 532414806

BAIL.MZR.CURVED.YELLOW

$21.99

$

Usually ships in 3-10 days

0

9

Poulan 532408492

REAR DOOR ASSY
(Superseded to 532401813)

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

12

Poulan 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Poulan 532197076

Back Plate
(Superseded to 532195622)

$15.99

$

Usually ships in 3-10 days

0

15

Poulan 532411334

SIDE BAFFLE
(Superseded to 532410545)

$7.49

$

Usually ships in 3-10 days

0

16

Poulan 532177133

DISCHARGE BAFFLE
(Superseded to 532176655)

$

$

Not available

17

Poulan 532148941

REAR BAFFLE
(Superseded to 532087597)

$

$

Not available

18

Poulan 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Poulan 532413160

SKIRT.REAR.22RD/SD.FO/VE

$13.99

$

Usually ships in 3-10 days

0

21

Poulan 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 3 left!

0

24

Poulan 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 3 left!

0

25

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

26

Poulan 532184193

BOLT

$

$

Not available

27

Poulan 532435276

WHEEL.8X1.75.CF5SPK.RAD.BLACK
(Superseded to 581009401)

$

$

Not available

28

Poulan 532174719

BOLT SHOULDER 3/8 -16X1

$9.49

$

In Stock, only 1 left!

0

29

Poulan 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

30

Poulan 532407871

AXLE ARM ASSY.
(Superseded to 532401179)

$7.49

$

In Stock, only 1 left!

0

31

Poulan 532436348

KNOB.ERGO.DLX.PLAS.MARI.MULTI
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

32

Poulan 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

33

Poulan 532196053

DOOR.MULCH.22.REAR.FWG.BLACK

$17.99

$

Usually ships in 3-10 days

0

34

Poulan 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

35

Poulan 532410624

Wheel Adjusting Bracket
(Superseded to 532407492)

Note: RH

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

37

Poulan 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 6

0

38

Poulan 532403073

DEFLECTOR.CLIPPING.22.FGD.BLAC
(Superseded to 532402574)

$

$

Not available

39

Poulan 532197028

Handle Bracket Assembly, LH
(Superseded to 532195916)

Note: LH

$10.99

$

Usually ships in 3-10 days

0

40

Poulan 532197027

Handle Bracket Assembly, RH
(Superseded to 532195917)

Note: RH

$10.99

$

Usually ships in 3-10 days

0

41

Poulan 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

43

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 532430511

Note: . 14 15 51

$

$

Not available

45

Poulan 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

46

Poulan 532421176

ADAPTER.BLADE/PULLEY.25M

$28.99

$

In Stock, only 1 left!

0

47

Poulan 532406713

BLADE.22.MULCH.STANDARD

$26.99

$

In Stock, Qty 10

0

48

Poulan 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

49

Poulan 532850263

(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Poulan 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Poulan 532170031

FRONT BAFFLE KIT

Note: . 53

$

$

Not available

52

Poulan 532404763

No Step Decal
(Superseded to 532182166)

$4.99

$

In Stock, only 3 left!

0

53

Poulan 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

54

Poulan 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

55

Poulan 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

56

Poulan 532088652

HINGE SCREW

$7.49

$

In Stock, only 2 left!

0

57

Poulan 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

58

Poulan 532434514

HANDLE.LOWER.D-STRAIT.BLACK

$

$

Not available

59

Poulan 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

64

Poulan 000000000

Note: B S 126T02-1601-B1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

65

Poulan 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

68

Poulan 532410623

Wheel Adjusting Bracket, LH
(Superseded to 532407493)

Note: LH

$

$

Not available

69

Poulan 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

71

Poulan 532429001

BRACKET.ENG/BELTKEEPER.BZP

$7.49

$

In Stock, only 3 left!

0

Poulan 532404764

Warning Decal

Note: NOT SHOWN

$8.99

$

Usually ships in 3-10 days

0
