PR 675 Y22 (961420107-00) - Poulan Pro Walk-Behind Mower (2012-03) DRIVE Parts Diagram

Walk-Behind Mower

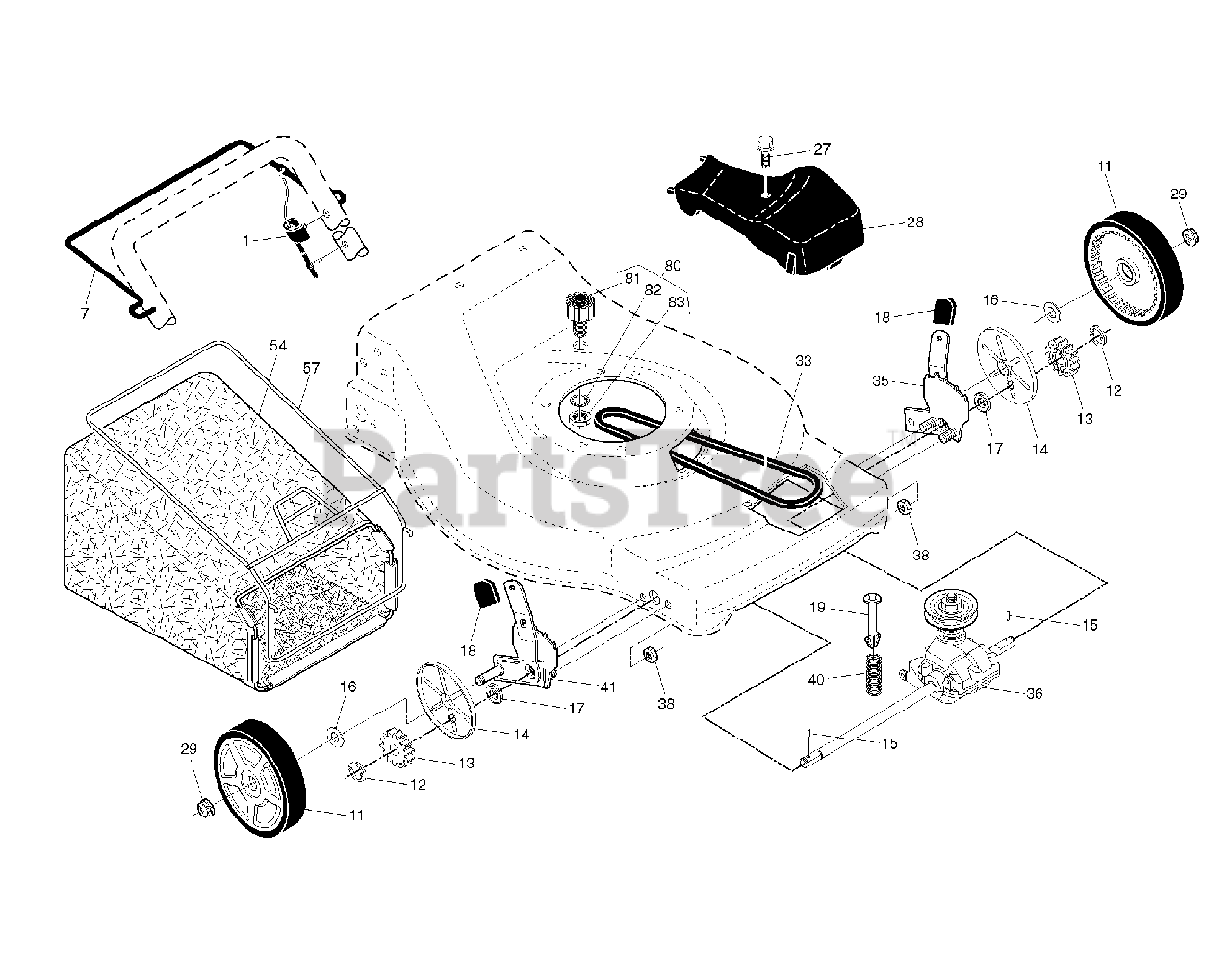

DRIVE Parts Diagram

  • Title
1

Poulan 532194653

CONTROL.DRIVE.S/SPEED.FWGD

$26.99

$

In Stock, only 1 left!

0

7

Poulan 532435281

BAIL.DRIVE.S/S.ROUND.MARI.21

$12.99

$

In Stock, only 1 left!

0

11

Poulan 532430452

RP.WHEEL.8X1.75.5SPK.RAD3.BLCK
(Superseded to 581009201)

$34.99

$

In Stock, only 2 left!

0

12

Poulan 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

14

Poulan 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

15

Poulan 532404845

PAWL, DRIVE

$5.99

$

In Stock, only 3 left!

0

16

Poulan 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

17

Poulan 532421836

BEARING.ASM.
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

18

Poulan 532436348

KNOB.ERGO.DLX.PLAS.MARI.MULTI
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

19

Poulan 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

27

Poulan 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 1 left!

0

28

Poulan 532403342

Drive Cover, Torus B&S Black

$

$

Not available

29

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

33

Poulan 532146527

BELT THERM .32
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

35

Poulan 532438485

KIT ADJUSTER ASM.438151.

Note: . 17 18

$44.99

$

Usually ships in 3-10 days

0

36

Poulan 532415226

TRANSMISSION.22.FGD/W/PULLEY

$84.99

$

Usually ships in 3-10 days

0

38

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

41

Poulan 532438486

KIT ADJUSTER ASM.438148

Note: . 17 18

$

$

Not available

54

Poulan 532411062

GBAG.87510416S.BLK.PPR*SUBS/
(Superseded to 583327401)

$66.99

$

Usually ships in 3-10 days

0

57

Poulan 532411952

Grass Bag Frame, 22" EZ Empty SC

$

$

Not available

80

Poulan 532421114

KIT.WASH-OUT.PORT

Note: . 81 82 83

$24.99

$

In Stock, only 2 left!

0

81

Poulan 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

82

Poulan 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

83

Poulan 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0
