PR 627 ES (961920038-06) - Poulan Pro Snow Thrower (2013-07) CHASSIS /ENGINE /PULLEY Parts Diagram

Snow Thrower

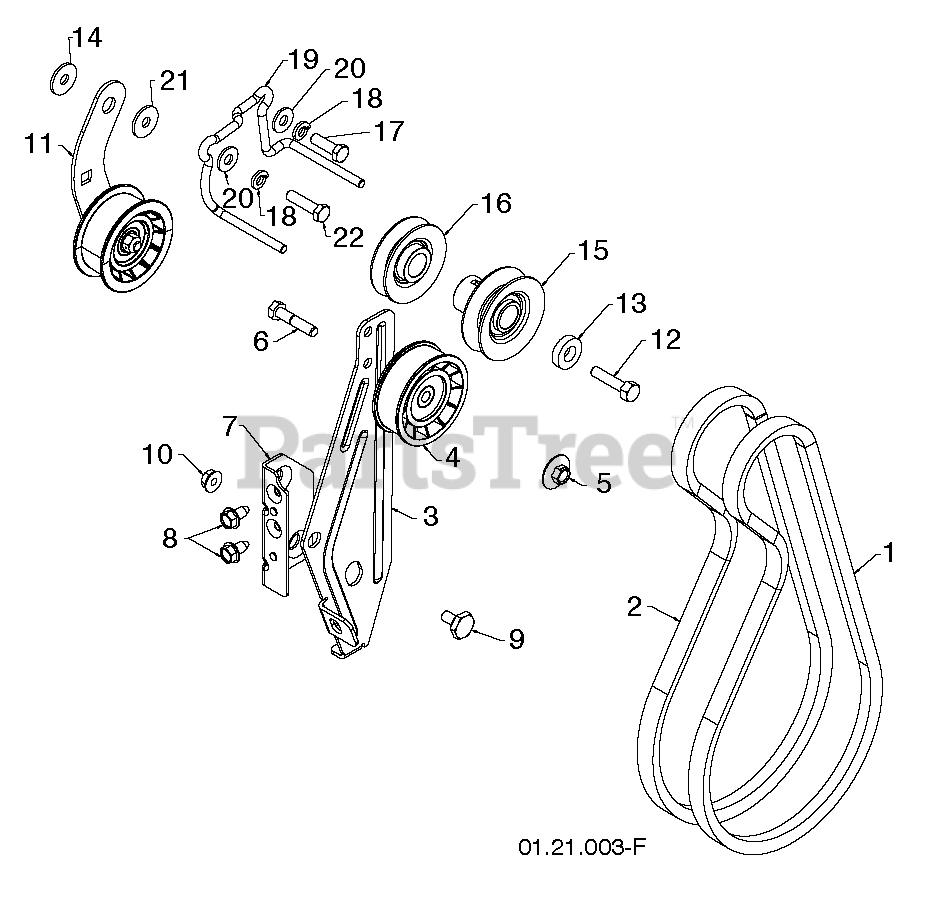

CHASSIS /ENGINE /PULLEY Parts Diagram

  • Title

1

Poulan 532408007

BELT.V.IMPELLER

$43.99

$

In Stock, Qty 5

0

2

Poulan 532419744

V-BELT TRACTION 34.25

$34.99

$

In Stock, only 2 left!

0

3

Poulan 584232402

ARM.IDLER BRAKE.CLEAR.ZINC

$

$

Not available

4

Poulan 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

5

Poulan 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 15

0

6

Poulan 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

7

Poulan 585284901

BRACKET.IDLER.PIVOT.ZINC
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

9

Poulan 532424297

BOLT.SHOULDER.1/2X12

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

11

Poulan 585238401

ARM.ASM.TRACTION.IDLER.SNOW

$44.99

$

In Stock, only 2 left!

0

12

Poulan 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

13

Poulan 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

14

Poulan 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

15

Poulan 532426491

PULLEY.IMPELER.

$26.99

$

Usually ships in 3-10 days

0

16

Poulan 532426490

PULLEY.ENG.TRACTION

$15.99

$

Usually ships in 3-10 days

0

17

Poulan 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

18

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

19

Poulan 585058201

RB GUIDE.BELT.CHAIN.LS.SNOW
(Superseded to 585540501)

$14.99

$

Usually ships in 3-10 days

0

20

Poulan 532155415

WASHER.20X8.5

$5.99

$

In Stock, only 2 left!

0

21

Poulan 532175331

BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

22

Poulan 874610520

CAPSCREW.HEXHD.5/16X1.25.

$9.49

$

Usually ships in 3-10 days

0
