PR 627 ES (961920038-03) - Poulan Pro Snow Thrower (2012-08) HANDLE Parts Diagram

Snow Thrower

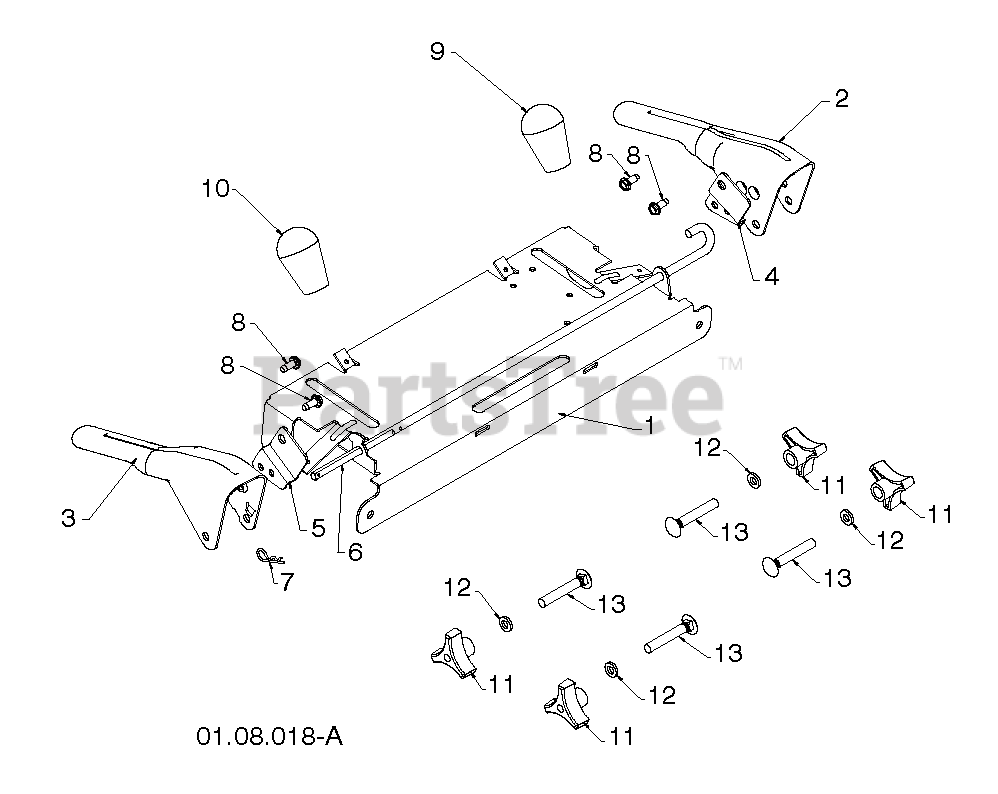

HANDLE Parts Diagram

  • Title

1

Poulan 580796702

PANEL.CONTROL.SNOW.BLACK

$

$

Not available

2

Poulan 580687802

LEVER.CONTROL.LH.BLACK

Note: LH

$28.99

$

Usually ships in 3-10 days

0

3

Poulan 580687702

LEVER.CONTROL.RH.PNT.BLACK

Note: RH

$22.99

$

Usually ships in 3-10 days

0

4

Poulan 580359002

BRACKET.ROD.TRACT.LH.ZINC

$2.99

$

Usually ships in 3-10 days

0

5

Poulan 580358902

BRACKET.ROD.IMP.RH.ZINC

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 580796801

(Superseded to 532412677)

$14.99

$

Usually ships in 3-10 days

0

7

Poulan 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

8

Poulan 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 532414280

KNOB LEVER, BLACK

$7.99

$

Usually ships in 3-10 days

0

10

Poulan 532414281

RED KNOB SHIFTER

$22.99

$

In Stock, only 1 left!

0

11

Poulan 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

12

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

13

Poulan 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0
