PR 627 ES (961920038-00) - Poulan Pro Tiller (2010-04) Control Panel/Chute Parts Diagram

Tiller

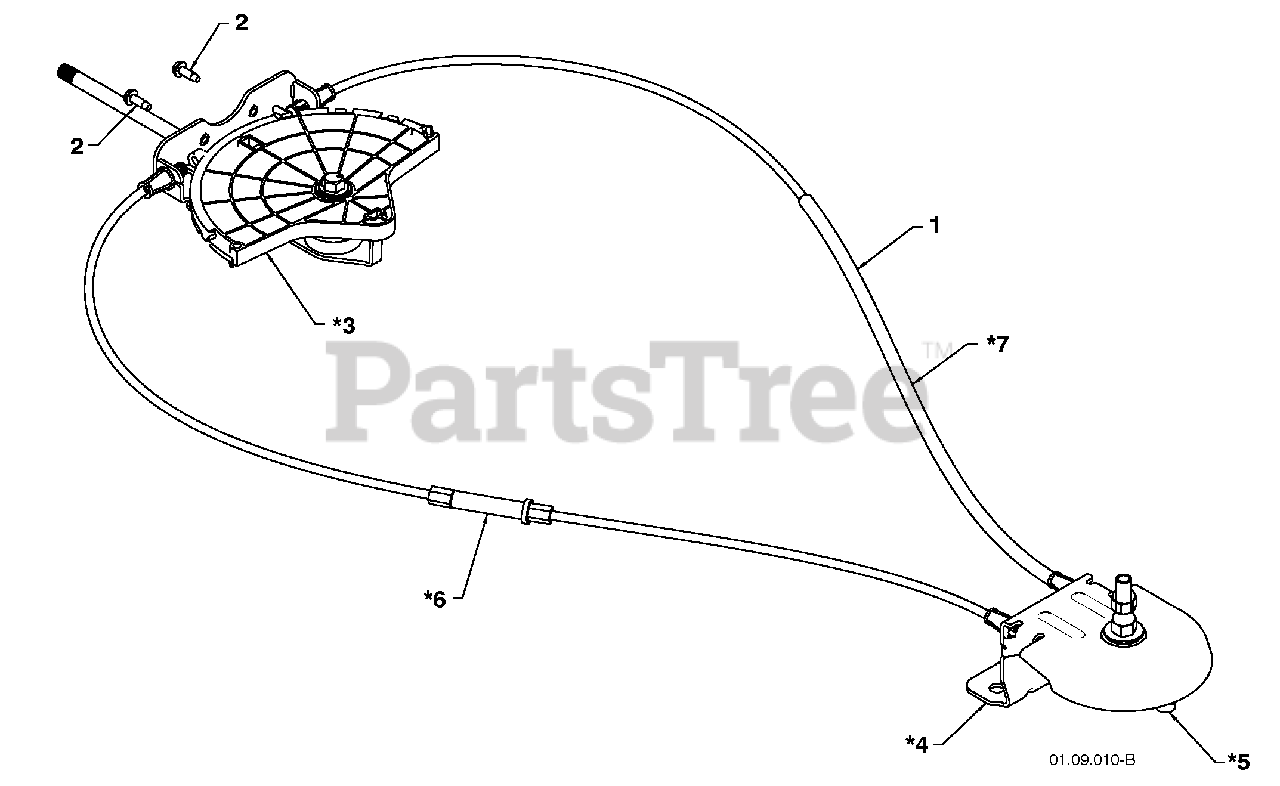

Control Panel/Chute Parts Diagram

  • Title
1

Electrolux/AYP 428272

LEVER/CABLE ROTATOR ASSEMBLY
(Superseded to 532428272)

$

$

Not available

2

Electrolux/AYP 17501010

SCREW 10-24 X .625
(Superseded to 817501010)

$

$

Not available

3

Electrolux/AYP 420678

ROTATOR HEAD
(Superseded to 532420678)

Note: REFERENCE FOR SERVICE PARTS ONLY.

$205.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 405932

ROTATOR PIVOT BRACKET
(Superseded to 532405932)

Note: REFERENCE FOR SERVICE PARTS ONLY.

$72.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 420675

PULLEY PIVOT
(Superseded to 532420675)

Note: REFERENCE FOR SERVICE PARTS ONLY.

$62.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 428273

CABLE ASSEMBLY ADJUSTABLE
(Superseded to 532428273)

Note: REFERENCE FOR SERVICE PARTS ONLY.

$47.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 428310

CABLE ASSEMBLY HEAT SHIELD
(Superseded to 532428310)

Note: REFERENCE FOR SERVICE PARTS ONLY.

$40.99

$

In Stock, only 2 left!

0
