PR 624 (961920042-00) - Poulan Pro Snow Thrower (2010-04) Control Panel / Chute Parts Diagram

Snow Thrower

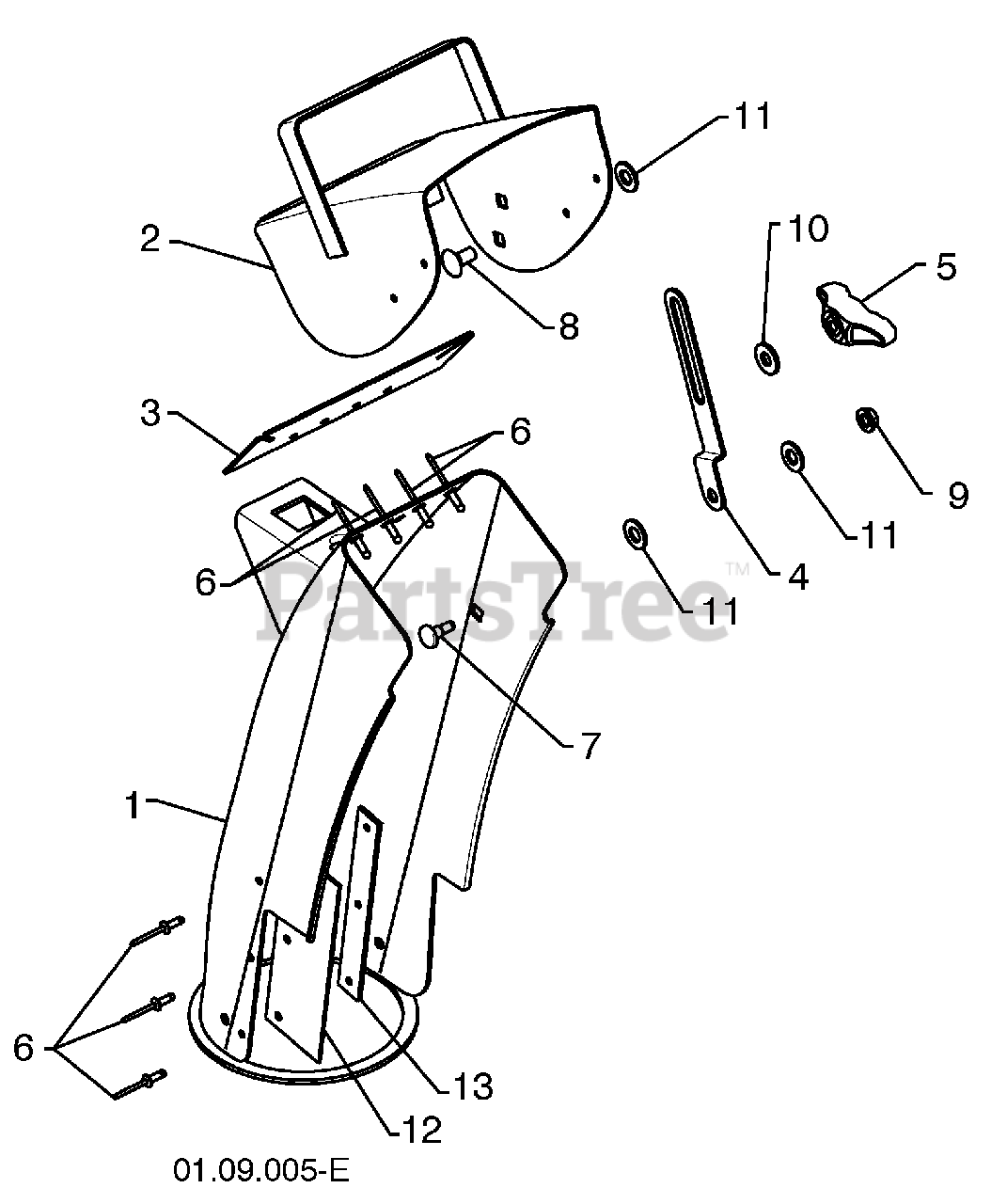

Control Panel / Chute Parts Diagram

  • Title
1

Electrolux/AYP 435023X421

CHUTE WELDMENT
(Superseded to 532438829)

$72.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 178633X421

DEFLECTOR WELDMENT
(Superseded to 583697801)

$21.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 420325

DEFLECTOR SEAL
(Superseded to 532420325)

$7.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 179096X421

STRAP
(Superseded to 583699501)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 189713X428

KNOB BLACK
(Superseded to 532185577)

$9.49

$

In Stock, Qty 15

0

6

Electrolux/AYP 128415

POP RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 185600

SHOULDER BOLT 1/4-20 X .704
(Superseded to 532185600)

$4.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 72270505

CARRIAGE BOLT 5/16-18 X .625
(Superseded to 872270505)

$10.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 191730

NUT 1/4-20
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

10

Electrolux/AYP 155415

WASHER
(Superseded to 532155415)

$5.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 179246

PLASTIC WASHER
(Superseded to 532179246)

$7.49

$

In Stock, Qty 8

0

12

Electrolux/AYP 430324

CHUTE SNOW SHIELD
(Superseded to 532430324)

$20.99

$

In Stock, only 4 left!

0

13

Electrolux/AYP 419822X431

SHIELD RETAINER STRAP
(Superseded to 532421728)

$14.99

$

Usually ships in 3-10 days

0
