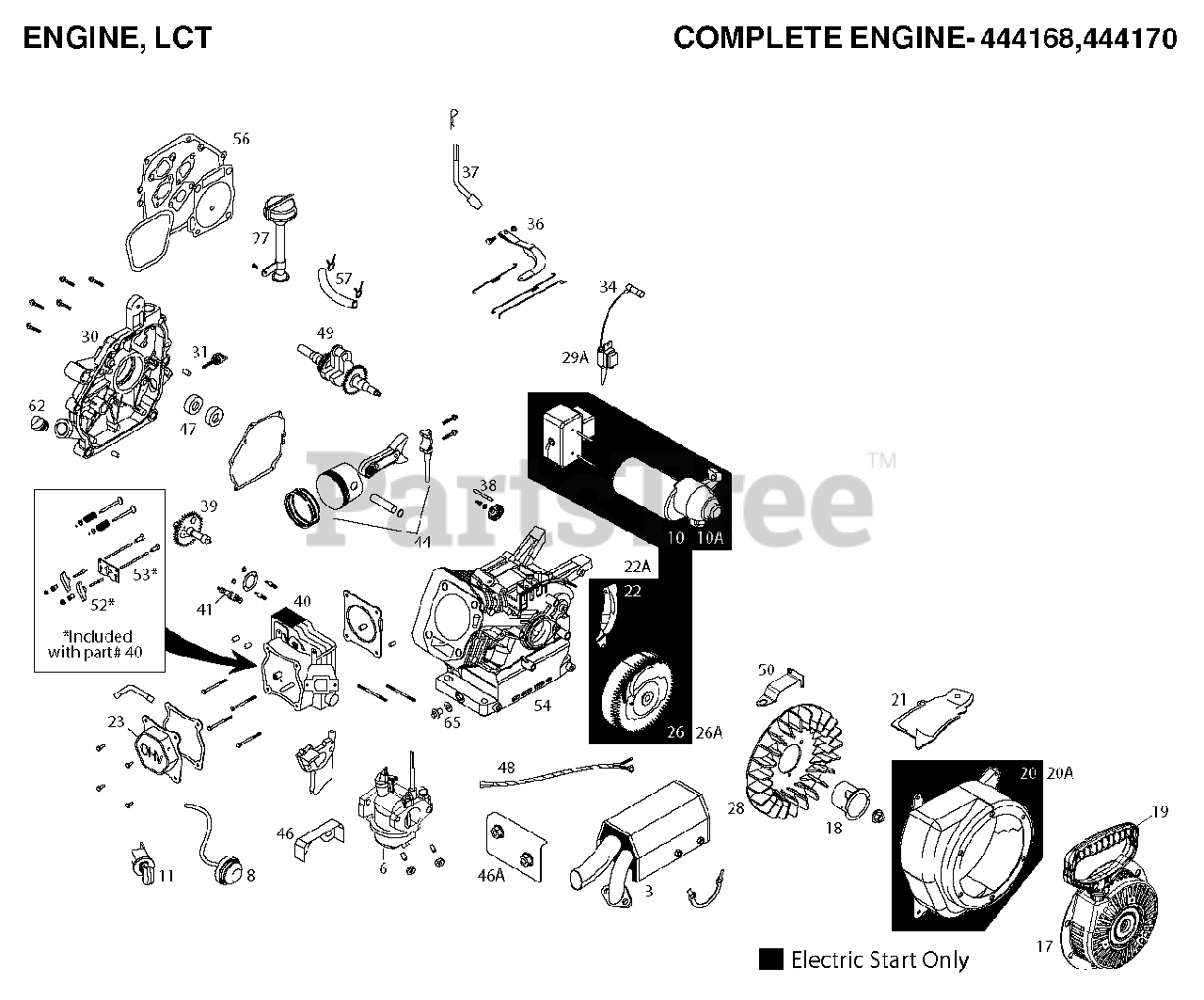

PR 621 (961820003-01) - Poulan Pro Snow Thrower (2011-06) Engine-444168 444170 Parts Diagram

Snow Thrower

Engine-444168 444170 Parts Diagram

  • Title
3

Poulan 532444277

MUFFLER.ASM.LCT.208CC.SS
(Superseded to 593989401)

$87.99

$

In Stock, only 1 left!

0

6

Poulan 532437122

CARB.ASM.SS/SNO.LCT(SKSNO313)
(Superseded to 585020403)

$102.99

$

Usually ships in 3-10 days

0

8

Poulan 532437123

BULB.FUEL.PRMR.W/HOSE(SKSNO306
(Superseded to 532424949)

$13.99

$

Usually ships in 3-10 days

0

10

Poulan 532437124

STARTER.ASM.ELEC.(SKSNO411)

$338.99

$

Usually ships in 3-10 days

0

10A

Poulan 532437125

(Superseded to 583516501)

$545.99

$

Usually ships in 3-10 days

0

11

Poulan 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$28.99

$

In Stock, Qty 6

0

17

Poulan 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$53.99

$

Usually ships in 3-10 days

0

18

Poulan 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$34.99

$

Usually ships in 3-10 days

0

19

Poulan 532424968

STARTER.GRIP.SNOW.LCT.SKSN0603
(Superseded to 532443899)

$17.99

$

Usually ships in 3-10 days

0

20

Poulan 532424971

BLOW.HSG.ASSY.ELEC(SKSN-0602)
(Superseded to 580960501)

$

$

Not available

20A

Poulan 532429230

BLOW.HSG.ASSY.ELEC(SKSN-0612)

$21.99

$

Usually ships in 3-10 days

0

21

Poulan 532424973

SHILED.FLYWEEL.SYS(SKSN-0604)

$6.99

$

Usually ships in 3-10 days

0

22

Poulan 532424975

SHLD.ELEC.START.FLY(SKSN-0605)

$

$

Not available

22A

Poulan 532429596

SHIELD.FLYWEEL.MAN(SKSN-0607)

$7.99

$

Usually ships in 3-10 days

0

23

Poulan 532420580

VALVE COVER ASSEMBLY
(Superseded to 587176901)

$51.99

$

Usually ships in 3-10 days

0

26

Poulan 532429235

FLYWHL.ASSY.ELECT.(SKSN0405)

$227.99

$

Usually ships in 3-10 days

0

26A

Poulan 532420585

RP KIT.FLYWHEEL.SERVICE
(Superseded to 532429236)

$66.99

$

Usually ships in 3-10 days

0

27

Poulan 532444091

HIGH OIL-FILL TUBE ASSY

$20.99

$

Usually ships in 3-10 days

0

28

Poulan 532420586

KIT.COOLNG.FAN.SERV(SK208-4000

$11.99

$

In Stock, only 2 left!

0

29A

Poulan 532443934

208CC IGN COIL (STD)

$62.99

$

In Stock, only 1 left!

0

30

Poulan 532420606

CRANKCASE COVER ASSY
(Superseded to 583630001)

$68.99

$

Usually ships in 3-10 days

0

31

Poulan 532420961

DIPSTICK SMALL

$12.99

$

Usually ships in 3-10 days

0

34

Poulan 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$17.99

$

In Stock, only 1 left!

0

36

Poulan 532420601

KIT.GOVERNOR.ARM(SUMMER ENG)
(Superseded to 532420602)

$7.49

$

In Stock, only 3 left!

0

37

Poulan 532420602

KIT.GOVERNOR.CRANK(SK208-3100)

$7.49

$

In Stock, only 3 left!

0

38

Poulan 532429646

GOVENOR.GEARS ASM(SK2082900)

$39.99

$

Usually ships in 3-10 days

0

39

Poulan 532420584

KIT.CAMSHAFT.SRV(SK208-1600)
(Superseded to 582051401)

$102.99

$

Usually ships in 3-10 days

0

40

Poulan 532420578

CYLINDR.HEAD.SRV.KIT
(Superseded to 582045701)

$182.99

$

Usually ships in 3-10 days

0

41

Poulan 532424939

SPARK.PLUG(2083810)

$31.99

$

Usually ships in 3-10 days

0

44

Poulan 532420582

KIT.PISTON.SRV(SK208-1400)

$169.99

$

Usually ships in 3-10 days

0

46

Poulan 532429260

SHIELD.VAPOR.SNOW

$17.99

$

In Stock, only 1 left!

0

46A

Poulan 532444275

SHIELD.INTAKE.(LCT.SKSN0140.1)

$20.99

$

Usually ships in 3-10 days

0

47

Poulan 532429599

SEAL KIT (2 PCS)

$17.99

$

Usually ships in 3-10 days

0

48

Poulan 532444276

HARNESS WIRE/WCDI IGN.SKSNO145

$43.99

$

Usually ships in 3-10 days

0

49

Poulan 532429600

CRANKSHAFT-KEYED(SK2081800.1)
(Superseded to 580352501)

$

$

Not available

50

Poulan 532429259

SPEED.CTRL.BRKT.(SKSN0150)

$13.99

$

Usually ships in 3-10 days

0

52

Poulan 532429691

ROCKER ARM KIT

$68.99

$

Usually ships in 3-10 days

0

53

Poulan 532420579

KIT.PUSH.ROD.SRV(SK208-1001)

$39.99

$

In Stock, only 1 left!

0

54

Poulan 532436567

CYLINDER.ASM.SKSN0001.2

$

$

Not available

56

Poulan 532429601

GASKET.KIT.208CC(SK2084300.1)

$66.99

$

Usually ships in 3-10 days

0

57

Poulan 532438014

KIT.FUEL.HOSE.208CC.SING/STAGE

$12.99

$

In Stock, only 1 left!

0

62

Poulan 532429598

NON REMOVABLE PLUG

$13.99

$

Usually ships in 3-10 days

0

65

Poulan 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 3 left!

0
