PR 600Y21RP (961420034-01) - Poulan Pro Walk-Behind Mower (2007-01) Drive Parts Diagram

Walk-Behind Mower

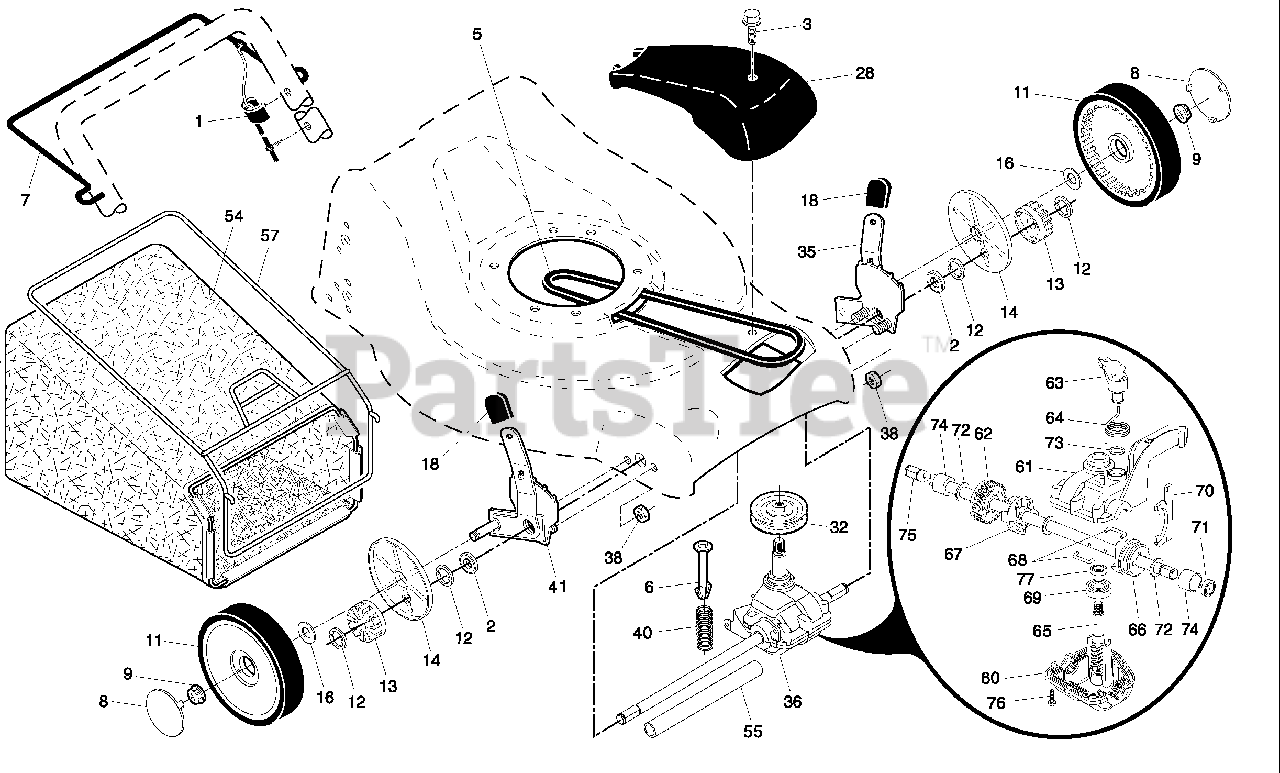

Drive Parts Diagram

  • Title

1

Electrolux/AYP 194653

Control Cable Assembly
(Superseded to 532194653)

$26.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 88059

Bearing, Wheel Adjuster
(Superseded to 582944001)

$7.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 175262

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532175262)

$7.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 175436

V-Belt
(Superseded to 532175436)

$24.99

$

In Stock, Qty 6

0

6

Electrolux/AYP 150495

Spring Retainer
(Superseded to 532150495)

$7.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 194185X421

Control Bar, Drive
(Superseded to 532435281)

$12.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 407793X421

Hubcap
(Superseded to 532438319)

$

$

Not available

9

Murray 145212

Nut, Flangelock, Special Thread
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 180775

Wheel & Tire Assembly
(Superseded to 574048301)

$

$

Not available

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 137054

Pinion
(Superseded to 532137054)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 67725

Washer 1/2 x 1-1/2 x .134
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 701037X421

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

28

Electrolux/AYP 181468

Dive Cover
(Superseded to 583483001)

$51.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 194126

Drive Pulley
(Superseded to 532194126)

$

$

Not available

35

Electrolux/AYP 412461

Kit, Wheel Adjuster, LH
(Superseded to 583532601)

Note: (Includes Knob and Bearing)

$28.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 180184

Gear Case Assembly, Complete
(Superseded to 532180184)

$

$

Not available

38

Electrolux/AYP 73800400

Locknut, Hex 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 137090

Spring
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 412460

Kit, Wheel Adjuster, RH
(Superseded to 583532701)

Note: (Includes Knob and Bearing)

$28.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 412214

Grassbag

$

$

Not available

55

Electrolux/AYP 175739

Driveshaft Cover
(Superseded to 532175739)

$

$

Not available

57

Electrolux/AYP 401802

Frame, Grassbag
(Superseded to 532411950)

$

$

Not available

60

Electrolux/AYP 183497

Case, Lower
(Superseded to 532183497)

$15.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 183498

Case, Upper
(Superseded to 532183498)

$15.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 183499

Gear, 27 Teeth
(Superseded to 532183499)

$17.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 183500

Lever, Clutch
(Superseded to 532183500)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 183501

Spring, Return
(Superseded to 532183501)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 183502

Shaft, Input
(Superseded to 532183502)

$30.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 183503

Dog, Movable
(Superseded to 532183503)

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 183504

Dog, Fixed
(Superseded to 532183504)

$4.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 183505

Wire, Formed
(Superseded to 532183505)

$6.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 183506

Bearing, Ball
(Superseded to 532183506)

$8.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 183507

Fork, Shift
(Superseded to 532183507)

$9.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 183508

Seal, Output Shaft
(Superseded to 532183508)

$11.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 183509

Washer
(Superseded to 532183509)

$6.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 183510

Seal, Case
(Superseded to 532183510)

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 183511

Bushing
(Superseded to 532183511)

$5.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 196613

Shaft, Output
(Superseded to 532196613)

$54.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 183513

Screw
(Superseded to 532183513)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 183514

Seal, Input Shaft
(Superseded to 532183514)

$7.99

$

In Stock, only 2 left!

0
