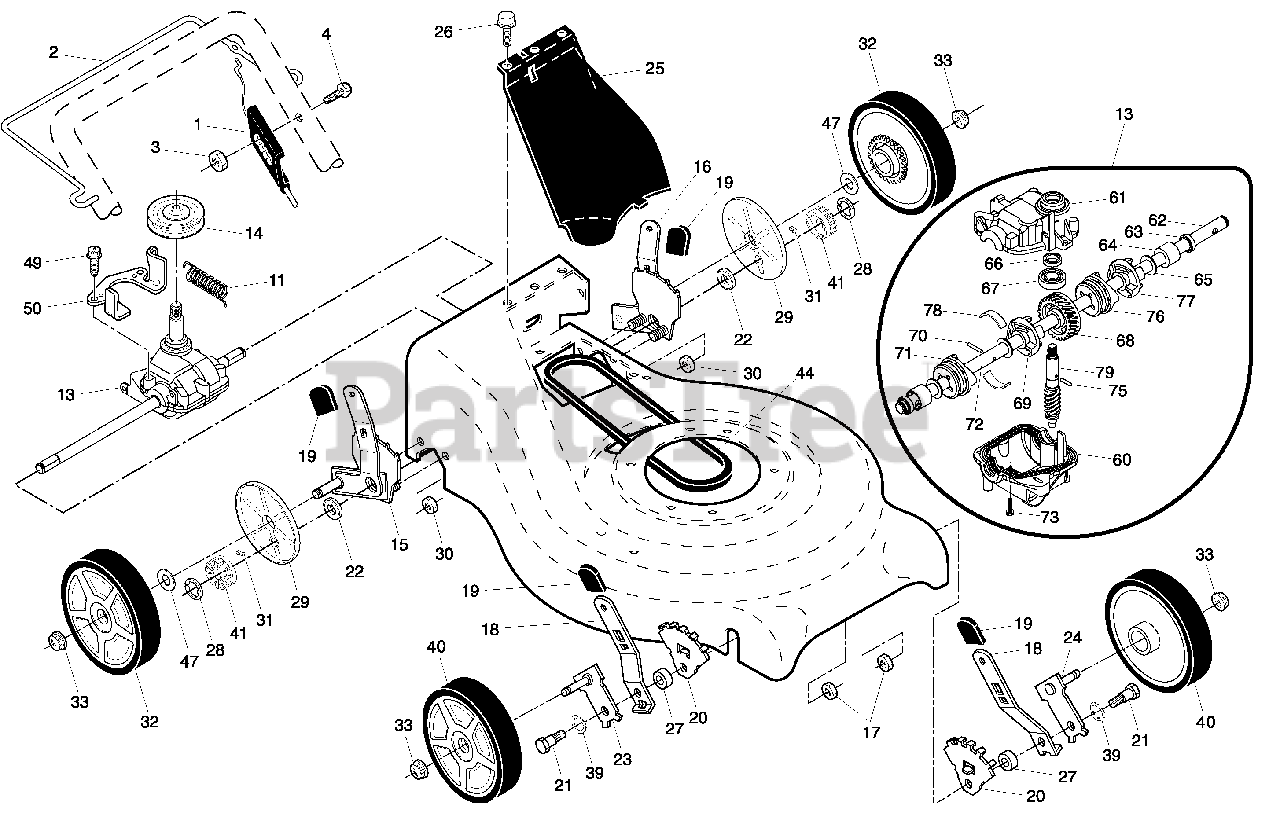

PR 600Y21RDP (961420044-01) - Poulan Pro Walk-Behind Mower (2008-01) Drive Parts Diagram

Walk-Behind Mower

Drive Parts Diagram

  • Title

1

Electrolux/AYP 404846

Drive Control Assembly
(Superseded to 583292701)

Note: (Includes Cable)

$

$

Not available

2

Electrolux/AYP 194185X421

Lever, Drive Control
(Superseded to 532435281)

$12.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 191730

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

4

Electrolux/AYP 199687

Screw
(Superseded to 532199687)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 406558

Spring, Return
(Superseded to 532406558)

$8.99

$

In Stock, Qty 7

0

13

Electrolux/AYP 404844

Gear Case Assembly, Complete
(Superseded to 532404844)

$103.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 193443

Pulley, Drive
(Superseded to 532193443)

$17.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 409073

Kit, Wheel Adjuster Assembly, RH
(Superseded to 532409073)

Note: (Includes Knob and Bearing)

$28.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 409074

Kit, Wheel Adjuster Assembly, LH
(Superseded to 532438467)

Note: (Includes Knob and Bearing)

$40.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 166785

Nut, Hex
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

18

Electrolux/AYP 401621X004

Spring, Selector
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 701037X421

Knob, Selector Spring
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

20

Electrolux/AYP 407494X005

Bracket, Wheel Adjusting
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 401638

Bolt, Shoulder, Hex Head
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 191039

Bearing, Ball
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

23

Electrolux/AYP 401175X004

Axle Arm Assembly, RH
(Superseded to 532401175)

$6.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 401174X004

Axle Arm Assembly, LH
(Superseded to 532401174)

$

$

Not available

25

Electrolux/AYP 199775X428

Cover Drive
(Superseded to 583728301)

$10.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 750634

Screw, Threaded, Rolled #10-25 x .50
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

27

Electrolux/AYP 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

28

Electrolux/AYP 12000058

E-Ring 7/16
(Superseded to 812000058)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 189403

Cover, Dust, Wheel
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

30

Electrolux/AYP 73800400

Nut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 404845

Pawl, Drive
(Superseded to 532404845)

$5.99

$

In Stock, only 3 left!

0

32

Electrolux/AYP 405744X421

Wheel & Tire Assembly, Rear 8 x 1-3/4
(Superseded to 581685505)

$22.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 409148

Nut, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 401630

Washer, Curved, Cylindrical
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

40

Electrolux/AYP 193909X421

Wheel & Tire Assembly, Front 8 x 1-3/4
(Superseded to 532412173)

$15.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 404835

Pinion
(Superseded to 532404835)

$6.99

$

In Stock, Qty 9

0

44

Electrolux/AYP 406580

V-Belt
(Superseded to 532406580)

$30.99

$

In Stock, only 3 left!

0

47

Electrolux/AYP 67725

Washer
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

49

Electrolux/AYP 163409

Screw, Hi-Lo Thread #12 x 5/8
(Superseded to 532163409)

$7.49

$

In Stock, Qty 6

0

50

Electrolux/AYP 404832X004

Belt Keeper
(Superseded to 532404832)

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 412747

Case, Lower
(Superseded to 532412747)

$20.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 412736

Case, Upper
(Superseded to 532412736)

$20.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 412745

Shaft, Output, Long

$

$

Not available

63

Electrolux/AYP 183508

Seal, Output Shaft
(Superseded to 532183508)

$11.99

$

In Stock, only 1 left!

0

64

Electrolux/AYP 183511

Bushing
(Superseded to 532183511)

$5.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 183509

Washer
(Superseded to 532183509)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 183514

Seal, Worm Shaft
(Superseded to 532183514)

$7.99

$

In Stock, only 2 left!

0

67

Electrolux/AYP 183506

Bearing, Ball
(Superseded to 532183506)

$8.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 412742

Gear, 28 Teeth
(Superseded to 532412742)

$8.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 412740

Movable Dog Clutch, LH
(Superseded to 532412740)

$5.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 412741

Pin, Output Shaft
(Superseded to 532412741)

$9.49

$

In Stock, only 4 left!

0

71

Electrolux/AYP 412739

Fixed Dog Clutch, LH
(Superseded to 532412739)

$4.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 412738

Shaft, Output, Short

$

$

Not available

73

Electrolux/AYP 183513

Screw, Case
(Superseded to 532183513)

$4.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 412746

Pin, Worm Shaft
(Superseded to 532412746)

$9.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 412743

Movable Dog Clutch, RH
(Superseded to 532412743)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 412744

Fixed Dog Clutch, RH
(Superseded to 532412744)

$4.99

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 410731

Spring, Leaf
(Superseded to 532410731)

$4.99

$

In Stock, Qty 8

0

79

Electrolux/AYP 412737

Shaft, Worm
(Superseded to 532412737)

$14.99

$

Usually ships in 3-10 days

0
