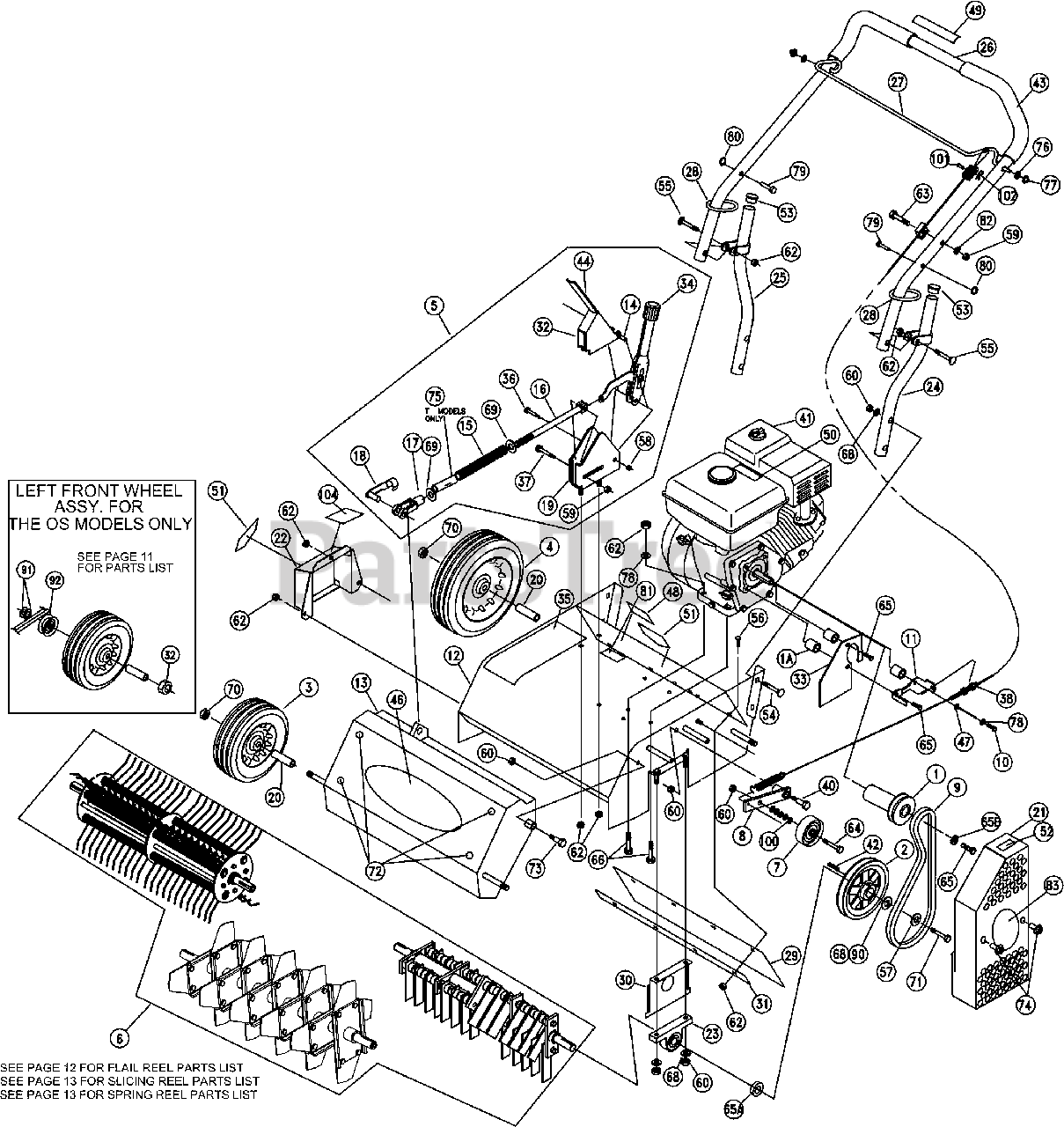

PR 550 H - Billy Goat 20" Power Rake Parts Assembly Parts Diagram

20" Power Rake

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 350440

PULLEY PR550/0S550

$87.99

$

Usually ships in 2-11 days

0

1A

Billy Goat 350401

Spacer 5/8 OD X 3/8 ID X 1.0 LG

$7.49

$

Usually ships in 2-11 days

0

2

Billy Goat 350102

Pulley 6.5" OD X ¾"

$109.99

$

Usually ships in 2-11 days

0

3

Billy Goat 350103

WHEEL 8.0" X 5/8" BEARING

$80.99

$

In Stock, only 2 left!

0

4

Billy Goat 350104

WHEEL 10.0" X 5/8" BEARING

$73.99

$

In Stock, only 2 left!

0

5

Billy Goat 350107

Height Adjust Assy
(Superseded to 350107-S)

$392.99

$

Usually ships in 2-11 days

0

6

Billy Goat 350112

Reel Flail / Slicing / Spring Assy

$

$

Not available

7

Billy Goat 350114

Pulley Idler 2.75"

$41.99

$

Usually ships in 2-11 days

0

8

Billy Goat 350115

Arm Idler WA

$30.99

$

Usually ships in 2-11 days

0

9

Billy Goat 350116

Belt 5L X 36

$57.99

$

In Stock, Qty 5

0

10

Billy Goat 8042030

Screwcap 5/16" x 24 x 1 1/2 Gr5 HCS

$2.99

$

Usually ships in 2-11 days

0

11

Billy Goat 350119

Bracket Mount Clutch Cable

$17.99

$

Usually ships in 2-11 days

0

12

Billy Goat 350194

Chassis WA W/ Label
(Superseded to 350194-S)

$537.99

$

Usually ships in 2-11 days

0

13

Billy Goat 350121

Frame Front WA
(Superseded to 350121-S)

$369.99

$

Usually ships in 2-11 days

0

14

Billy Goat 350309

Bushing 0.375 OD X 0.256 ID X 0.88

$1.49

$

Usually ships in 2-11 days

0

15

Billy Goat 350125

Spring Height Adjust PR500

$33.99

$

Usually ships in 2-11 days

0

16

Billy Goat 350126

Link Height Adjust PR500

$95.99

$

Usually ships in 2-11 days

0

17

Billy Goat 350127

Yoke ½ - 20

$21.99

$

Usually ships in 2-11 days

0

18

Billy Goat 350128

Pin Yoke ½"

$16.99

$

Usually ships in 2-11 days

0

19

Billy Goat 350182

Bracket Mount Hgt. Adj. WA

$57.99

$

Usually ships in 2-11 days

0

20

Billy Goat 350130

Spacer Spanner Wheel PR500

$9.49

$

In Stock, only 2 left!

0

21

Billy Goat 350384

Guard Belt WA W/ Label
(Superseded to 350384-S)

$118.99

$

In Stock, only 1 left!

0

22

Billy Goat 350196

Guard Shaft WA W/ Label
(Superseded to 350196-S)

$97.99

$

Usually ships in 2-11 days

0

23

Billy Goat 350133

Bearing ¾" Cast Pillow Block

$36.99

$

In Stock, only 2 left!

0

24

Billy Goat 350134

Handle Lower LH WA

$49.99

$

Usually ships in 2-11 days

0

25

Billy Goat 350135

Handle Lower RH WA

$49.99

$

Usually ships in 2-11 days

0

26

Billy Goat 350375

Handle Upper PR500

$100.99

$

Usually ships in 2-11 days

0

27

Billy Goat 350374

Bail Clutch WA

$55.99

$

Usually ships in 2-11 days

0

28

Billy Goat 350138

Loop Folding Handle

$12.99

$

Usually ships in 2-11 days

0

29

Billy Goat 350167

Deflector Rubber

$31.99

$

Usually ships in 2-11 days

0

30

Billy Goat 350168

Shield Bearing

$31.99

$

Usually ships in 2-11 days

0

31

Billy Goat 350171

Bar Clamp Deflector

$8.49

$

In Stock, only 1 left!

0

32

Billy Goat 350173

Bracket Height Adjust Lock WA

$56.99

$

Usually ships in 2-11 days

0

33

Billy Goat 350400

Guard Pulley Back

$14.99

$

Usually ships in 2-11 days

0

34

Billy Goat 350175

Lever Height Control

$169.99

$

Usually ships in 2-11 days

0

35

Billy Goat 350176

Label Instr. Hgt. Adj.

$15.99

$

In Stock, only 1 left!

0

36

Billy Goat 350178

Bolt Shoulder ¼" x 1 ¾"

$5.49

$

Usually ships in 2-11 days

0

37

Billy Goat 350179

Bolt Shoulder 5/16" x 1 ¾"

$3.49

$

Usually ships in 2-11 days

0

38

Billy Goat 350408-S

Cable Clutch PR

$38.99

$

In Stock, only 1 left!

0

40

Billy Goat 500114

BOLT SHOULDER 1/2" X 1"

$9.49

$

Usually ships in 2-11 days

0

41

Billy Goat 600115

ENGINE HONDA 5.5 H.P. GX160

$

$

Currently unavailable

42

Billy Goat 9201078

KEY 3/16" X 1"

$2.99

$

Usually ships in 2-11 days

0

43

Billy Goat 400570

GRIP 1" x 13"

$6.99

$

In Stock, only 2 left!

0

44

Billy Goat 500181

GRIP LEVER 1/8 x 1 x 5"

$4.99

$

In Stock, only 2 left!

0

46

Billy Goat 350422

LABEL PR BADGING

$9.99

$

Usually ships in 2-11 days

0

47

Billy Goat 350301

FINGER BELT WIRE

$6.99

$

Usually ships in 2-11 days

0

48

Billy Goat 810736

LABEL DANGER THROWN OBJECT

$3.99

$

In Stock, only 2 left!

0

49

Billy Goat 830503

LABEL CLUTCH VQ

$3.99

$

Usually ships in 2-11 days

0

51

Billy Goat 400424

LABEL WARNING

$3.99

$

In Stock, only 1 left!

0

52

Billy Goat 900327

LABEL DANGER GUARD

$3.99

$

In Stock, only 3 left!

0

53

Billy Goat 890132

PLUG CAP 1" RD

$

$

Not available

54

Billy Goat 8024061

BOLT CARRAIGE 3/8-16 x 1 3/4

$1.49

$

Usually ships in 2-11 days

0

55

Billy Goat 8024043

BOLT CARRAIGE 5/16-18 x 1 3/4

$0.99

$

In Stock, only 4 left!

0

56

Billy Goat 8024039

BOLT CARRIAGE 5/16 -18 x 3/4

$0.99

$

In Stock, Qty 9

0

57

Billy Goat 8177012

WASHER LOCK 3/8" S/T MED

$0.99

$

In Stock, Qty 9

0

58

Billy Goat 8164005

NUT LOCK #10-24

$0.99

$

In Stock, only 4 left!

0

59

Billy Goat 8160001

NUT LOCK 1/4-20

$0.99

$

In Stock, Qty 9

0

60

Billy Goat 8160003

NUT LOCK 3/8-16

$0.99

$

In Stock, Qty 5

0

62

Billy Goat 8160002

NUT LOCK 5/16-18

$0.99

$

In Stock, Qty 5

0

63

Billy Goat 8041008

SCREWCAP 1/4-20 x 1 1/2

$0.99

$

Usually ships in 2-11 days

0

64

Billy Goat 8041053

SCREWCAP 3/8 - 16 x 1 3/4

$1.49

$

Usually ships in 2-11 days

0

65

Billy Goat 8042026

SCREWCAP 5/16-24 x 3/4" GR.5

$1.99

$

Usually ships in 2-11 days

0

65B

Billy Goat 430298

Washer 5/16 Twist Tooth

$1.99

$

In Stock, only 2 left!

0

66

Billy Goat 8041030

SCREWCAP 5/16 - 18 x 1 1/2

$0.99

$

Usually ships in 2-11 days

0

68

Billy Goat 8171004

WASHER 3/8 FLAT CUT

$0.99

$

In Stock, Qty 5

0

69

Billy Goat 8172011

WASHER 1/2 SAE ZP

$0.99

$

In Stock, Qty 6

0

70

Billy Goat 8161044

NUT LOCK 1/2" - 13 THIN HGT

$0.99

$

In Stock, only 3 left!

0

71

Billy Goat 8041050

SCREWCAP 3/8" - 16 X1" HCS ZP

$0.99

$

In Stock, Qty 5

0

72

Billy Goat 350266

BUTTON SOCKET 5/16-18X5/8”

$1.49

$

Usually ships in 2-11 days

0

73

Billy Goat 520031

BOLT SHOULDER 1/2" x 2"

$6.99

$

In Stock, only 1 left!

0

74

Billy Goat 791080

FLANGE SCREW 0.375 -16 X 0.75

$1.49

$

In Stock, Qty 6

0

76

Billy Goat 8172009

WASHER 3/8 SAE

$1.49

$

In Stock, Qty 6

0

77

Billy Goat 360218

NUT PAL 3/8

$1.99

$

In Stock, only 1 left!

0

78

Billy Goat 8171002

WASHER 1/4 FLAT CUT

$0.99

$

In Stock, Qty 9

0

79

Billy Goat 520119

PIN CLEVIS 3/8" X 1.625

$6.99

$

Usually ships in 2-11 days

0

80

Billy Goat 360279

RETAINER 3/8" BOLT PUSH NUT

$0.99

$

Usually ships in 2-11 days

0

81

Billy Goat 100256

LABEL SPARK ARRESTOR EN/SP

$2.99

$

In Stock, Qty 5

0

82

Billy Goat 8172007

WASHER 1/4 SAE

$0.99

$

In Stock, Qty 11

0

83

Billy Goat 890456

LABEL LOGO PRODUCT SM CIRCLE

$5.49

$

In Stock, only 1 left!

0

100

Billy Goat 8171003

WASHER FLAT 5/16"

$0.99

$

In Stock, only 2 left!

0

101

Billy Goat 8059135

SCREW MACH #10-24 X 5/8" HWF ZP

$0.99

$

Usually ships in 2-11 days

0

102

Billy Goat 8164005

NUT LOCK #10-24 HEX

$0.99

$

In Stock, only 4 left!

0

104

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available
