PR 524E SA - Poulan Pro Snow Thrower (2004) Chassis / Engine / Pulleys Parts Diagram

Snow Thrower

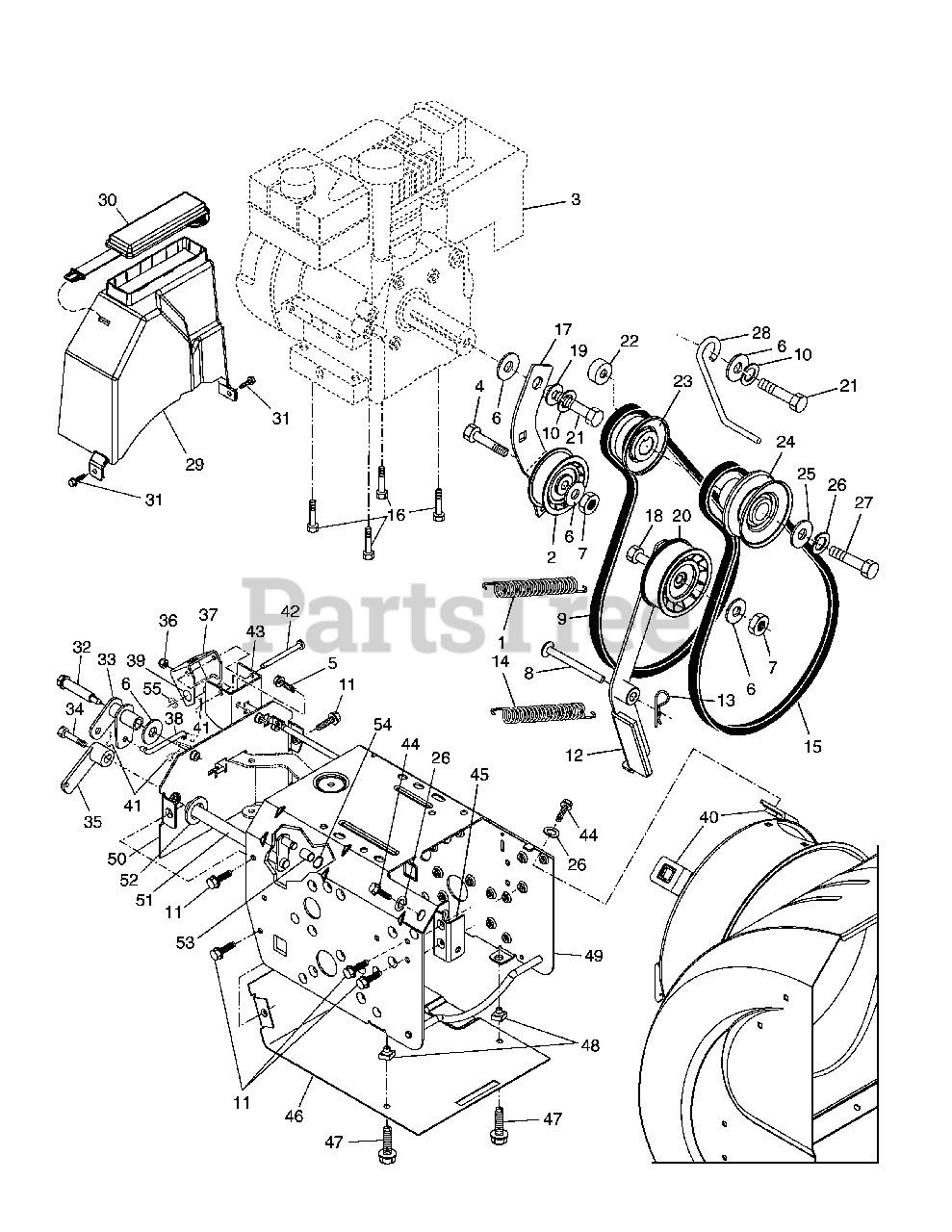

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Electrolux/AYP 181044

Spring, Traction Idler
(Superseded to 532414557)

$6.49

$

In Stock, only 3 left!

0

2

Electrolux/AYP 180522

Pulley, Idler (2-1/4)
(Superseded to 532180522)

$31.99

$

Usually ships in 3-10 days

0

3

Engine, Tecumseh, Model Number LH195SP

Note: (Order parts from Engine manufacturer)

$

$

Not available

4

Electrolux/AYP 74780520

Screw, Hex Head 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 150078

Screw, Hex Washer Head 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

6

Electrolux/AYP 59289

Washer, Flat
(Superseded to 532059289)

$4.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 73930500

Nut, Jam, Lock 5/16-18
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 175330

Pin, Idler Pivot
(Superseded to 532175330)

$5.99

$

In Stock, Qty 18

0

9

Electrolux/AYP 179092

V-Belt, Traction Drive
(Superseded to 532416954)

$

$

Not available

10

Electrolux/AYP 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 17490508

Screw, Hex Washer Head 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 179259

Impeller Idler Arm Assembly
(Superseded to 184789)

$

$

Not available

13

Electrolux/AYP 85179

Retainer, Hairpin
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 178828

Spring, Brake
(Superseded to 532178828)

$6.49

$

In Stock, only 1 left!

0

15

Electrolux/AYP 183533

V-Belt, Impeller Drive
(Superseded to 532408010)

$

$

Not available

16

Electrolux/AYP 192306

Screw, Hex Head 3/8-16 x 1-1/4
(Superseded to 532192306)

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 179354X008

Arm, Idler
(Superseded to 532422111)

$15.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 74780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

19

Electrolux/AYP 175331

Bushing, Idler Pivot
(Superseded to 532175331)

$4.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 180523

Pulley, Idler (2-3/4)
(Superseded to 532180523)

$24.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74610516

Screw, Hex Head 5/16-24 x 1
(Superseded to 874610516)

$4.99

$

In Stock, only 3 left!

0

22

Electrolux/AYP 179371

Spacer, Engine Pulley
(Superseded to 532179371)

$9.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 180478

Pulley, Engine, Traction Drive
(Superseded to 532180478)

$27.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 179157

Pulley, Engine, Impeller Drive

$26.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 62735

Washer, Flat 3/8
(Superseded to 532062735)

$4.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 850263

Washer, Lock 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 851084

Screw, Hex Head 3/8-24 x 1-3/8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 155452

Guide, Belt
(Superseded to 532155452)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 192193

Cover, Belt

$

$

Not available

30

Electrolux/AYP 178830

Cover, Toolbox

$

$

Not available

31

Electrolux/AYP 17490408

Screw, Hex Head 1/4-20 x 1/2

$

$

Not available

32

Electrolux/AYP 179256

Bolt, Shoulder 5/16-18
(Superseded to 532179256)

$

$

Not available

33

Electrolux/AYP 187853

Bellcrank Shifter
(Superseded to 532187853)

$15.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 180401

Screw, Hex Head 1/4-28 x 3/4
(Superseded to 532180401)

$2.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 179240

Arm, Auger Control
(Superseded to 532179240)

$

$

Not available

36

Electrolux/AYP 73800500

Nut, Lock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 178833X428

Bellcrank Assembly

$3.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 187101

Link, Speed Control
(Superseded to 532187101)

$

$

Not available

39

Electrolux/AYP 192110

Trunnion, Clutch
(Superseded to 532192110)

$

$

Not available

40

Electrolux/AYP 178890

Nut, Cage 3/8-16

$2.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 700279

Hairpin, Cotter 3/32 x 1/2
(Superseded to 532700279)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 179065

Pin, Bellcrank
(Superseded to 532179065)

$10.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 179063X428

Bracket, Bellcrank
(Superseded to 179063X479)

$

$

Not available

44

Electrolux/AYP 74780624

Screw, Hex Head 3/8-16 x 1-1/2
(Superseded to 874780624)

$7.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 175324X479

Pivot Bracket, Impeller Idler Arm
(Superseded to 184789)

$

$

Not available

46

Electrolux/AYP 178624X428

Pan, Frame Bottom

$

$

Not available

47

Electrolux/AYP 71020512

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 871020512)

$

$

Not available

48

Electrolux/AYP 181156

Nut, Speed 5/16-18
(Superseded to 532181156)

$7.49

$

In Stock, only 2 left!

0

49

Electrolux/AYP 183852X428

Frame Assembly

$43.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 187715X428

Plate, Frame End
(Superseded to 583706301)

$14.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 192463X008

Shaft, Auger Control
(Superseded to 532419877)

$87.99

$

In Stock, only 2 left!

0

52

Electrolux/AYP 57079

Washer, Hardened
(Superseded to 532057079)

$6.49

$

In Stock, Qty 10

0

53

Electrolux/AYP 192275

Roller
(Superseded to 532192275)

$4.99

$

In Stock, only 1 left!

0

54

Electrolux/AYP 192147

Ring, Crescent
(Superseded to 532192147)

$4.99

$

In Stock, only 1 left!

0

55

Electrolux/AYP 12000002

E-Ring

$

$

Not available

Electrolux/AYP 183854

Power Cord

Note: (not shown)

$

$

Not available
