PR 521 (11B-438C100) - Cub Cadet Walk-Behind Mower Engine (2001) Engine Assembly Parts Diagram

Walk-Behind Mower Engine

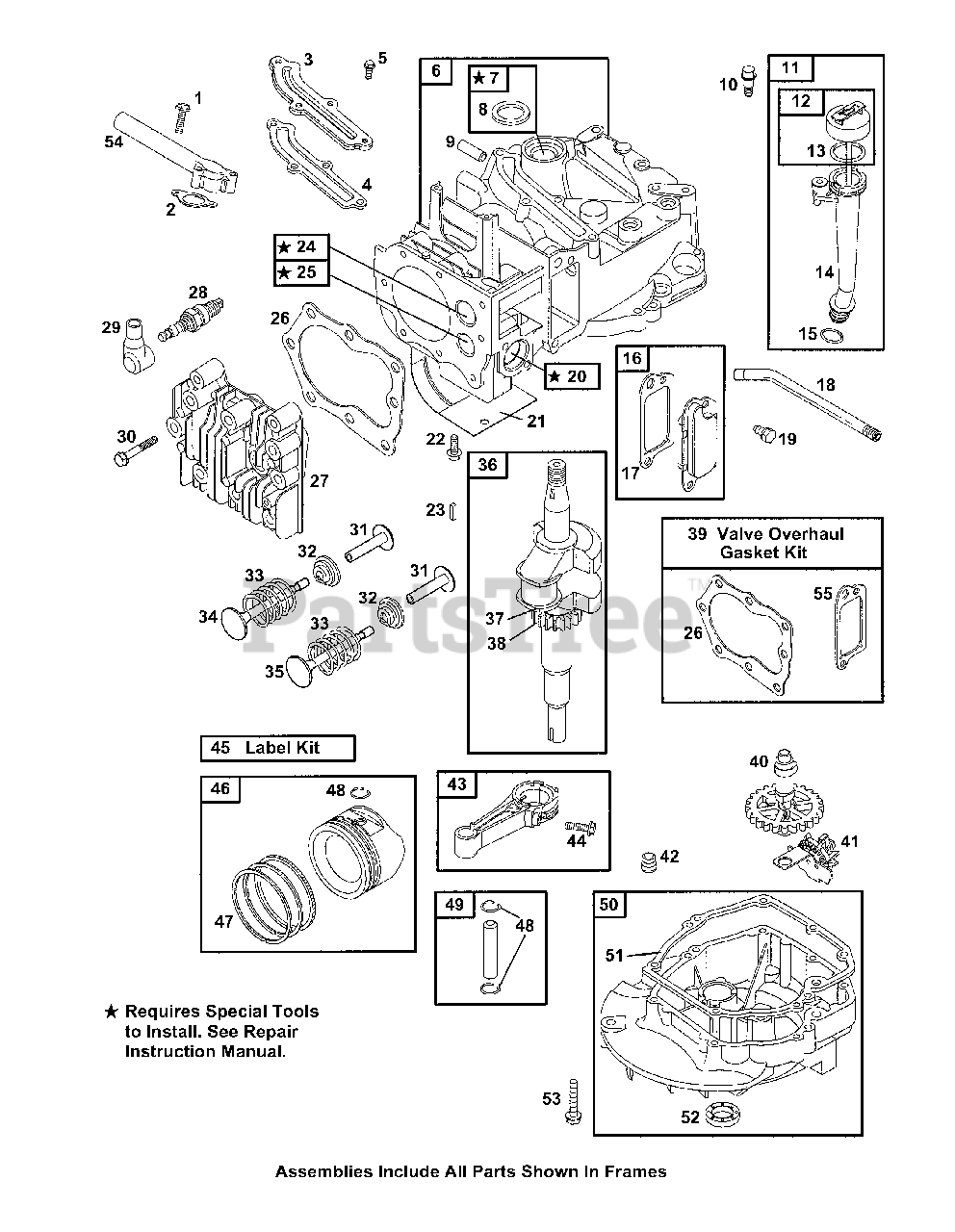

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet BS-691650

Screw (Intake Manifold)

$2.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-272199

Intake Gasket
(Superseded to BS-272199S)

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-692342

Breather Passage Cover

$

$

Not available

4

Cub Cadet BS-691879

Breather Passage Gasket

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-690345

Screw (Breather Passage Cover)

$4.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-493260

Cylinder Assembly

$

$

Not available

7

Cub Cadet BS-293708

Bushing/Seal Kit
(Superseded to BS-399269)

$21.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

9

Cub Cadet BS-690959

Locating Pin

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-690940

Screw (Dipstick Tube)

$3.99

$

In Stock, Qty 5

0

11

Order Component Part

$

$

Not available

12

Cub Cadet BS-495264

Dipstick
(Superseded to BS-499621)

$17.99

$

In Stock, only 4 left!

0

13

Cub Cadet BS-691031

Dipstick/Tube Seal

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-495265

Oil Fill Tube

$

$

Not available

15

Cub Cadet BS-692296

Dipstick Tube Seal

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

18

Cub Cadet BS-691781

Breather Tube

$10.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-94650

Screw (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-63709

Guide Bushing (Intake Valve)

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-262001

Guide Bushing (Exhaust Valve)

$13.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-690450

Cylinder Shield

$10.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

24

Cub Cadet BS-691155

Valve Seat (Intake)

$8.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-690380

Valve Seat (Exhaust)

$

$

Not available

26

Cub Cadet BS-692249

Cylinder Head Gasket

$8.49

$

In Stock, Qty 20+

0

27

Cub Cadet BS-691160

Cylinder Head
(Superseded to BS-594989)

$55.99

$

Usually ships in 2-12 days

0

28

Cub Cadet 759-3338

Spark Plug

$3.99

$

In Stock, Qty 14

0

29

Cub Cadet BS-66538

Sparkplug Boot
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 5

0

30

Cub Cadet BS-690912

Screw (Cylinder Head)

$3.99

$

In Stock, Qty 19

0

31

Cub Cadet BS-690548

Valve Tappet

$9.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-93312

Valve Retainer
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

33

Cub Cadet BS-691270

Valve Spring (Intake)

$5.49

$

In Stock, Qty 7

0

34

Cub Cadet BS-262652

Intake Valve

$

$

Not available

35

Cub Cadet BS-262651

Exhaust Valve

$

$

Not available

36

Cub Cadet BS-691451

Crankshaft
(Superseded to BS-797018)

$179.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-690979

Timing Key

$3.49

$

In Stock, Qty 7

0

38

Cub Cadet BS-691830

Timing Gear

$17.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-498528

Valve Gasket Set

$26.99

$

Usually ships in 2-12 days

0

40

Cub Cadet BS-691449

Camshaft

$73.99

$

In Stock, only 1 left!

0

41

Cub Cadet BS-691997

Governor/Oil Slinger

$25.99

$

Usually ships in 2-12 days

0

42

Cub Cadet BS-691680

Oil Drain Plug

$5.99

$

In Stock, only 1 left!

0

43

Cub Cadet BS-499424

Connecting Rod
(Superseded to BS-590406)

$87.99

$

In Stock, only 1 left!

0

44

Cub Cadet BS-94699

Screw (Connecting Rod)

$

$

Not available

45

Cub Cadet BS-494256

Label Kit

$26.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-499429

Piston Assembly

Note: (Standard)

$

$

Not available

Cub Cadet BS-499430

Piston Assy. (.010 O.S.)

$39.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499431

Piston Assy. (.020 O.S.)

$

$

Not available

Cub Cadet BS-499432

Piston Assy. (.030 O.S.)

$46.99

$

Usually ships in 2-12 days

0

47

Cub Cadet BS-499425

Ring Set

Note: (Standard)

$

$

Not available

Cub Cadet BS-499426

Ring Set (.010 O.S.)

$20.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499427

Ring Set (.020 O.S.)

$52.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499428

Ring Set (.030 O.S.)

$29.99

$

Usually ships in 2-12 days

0

48

Cub Cadet BS-691866

Piston Pin Lock

$4.49

$

In Stock, Qty 8

0

49

Cub Cadet BS-499423

Piston Pin

$9.49

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-493279

Engine Sump

$120.99

$

In Stock, only 2 left!

0

51

Cub Cadet BS-692232

Crankcase Gasket

$5.99

$

In Stock, Qty 20+

0

52

Cub Cadet BS-399781

Oil Seal
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

53

Cub Cadet BS-691092

Screw (Engine Sump)

$3.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-497465

Intake Manifold
(Superseded to BS-794305)

$

$

Not available

55

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

Cub Cadet BS-498826

SHORT BLOCK

$

$

Not available
