PR 521 (11A-438C100) - Cub Cadet Walk-Behind Mower (2000) General Assembly Parts Diagram

Walk-Behind Mower

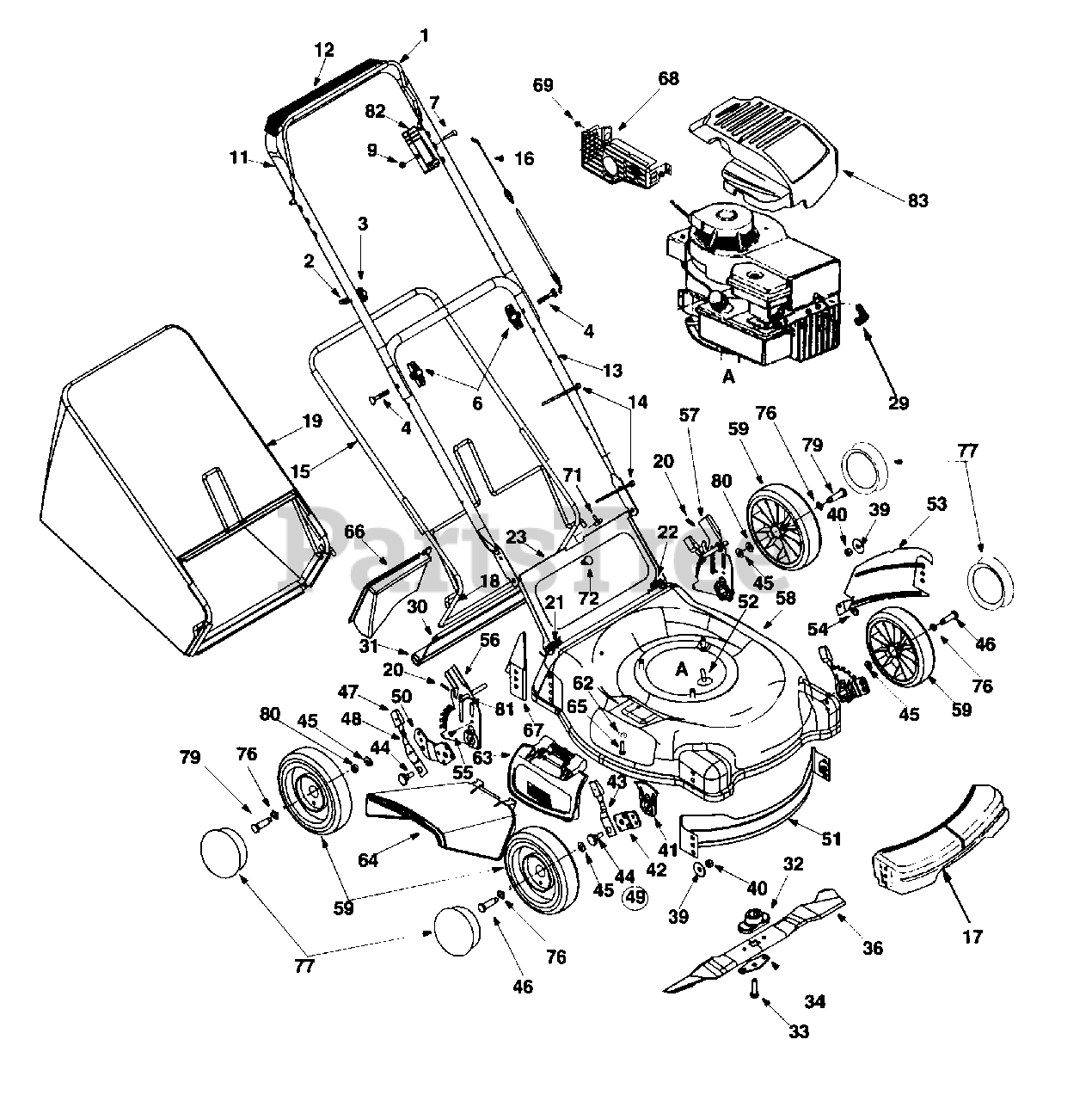

General Assembly Parts Diagram

  • Title
1

Cub Cadet 647-0004

Control Handle Assembly
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet 720-0314

Hand Knob

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-1270

Oval C-Sunk Mach. Scr.

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

Cub Cadet 749-0705

Upper Handle

Variations

Cub Cadet 749-0705-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Cub Cadet 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

Cub Cadet 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

17

Cub Cadet 731-1523

Front Cover: Black

$

$

Not available

18

Cub Cadet 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

Cub Cadet 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 764-0635

Grass Bag
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

23

Cub Cadet 782-7000

Rear Discharge Door

Variations

Cub Cadet 782-7000-0483

USE 782-7000-0637 DOOR-REAR D - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-7000-0638

USE 782-7000-0637 DOOR-REAR D - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-7000-0662

USE 782-7000-0637 DOOR-REAR D - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 782-7000-0665

USE 782-7000-0637 DOOR-REAR D - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 782-7000-0674

REAR DISCHARGE DOOR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

29

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

30

Cub Cadet 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

Cub Cadet 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

Cub Cadet 753-0588

Blade Adapter
(Superseded to 753-06315)

Note: (Kit includes 32-34)

$16.99

$

In Stock, only 1 left!

0

33

Cub Cadet 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 1 left!

0

34

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

36

Cub Cadet 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0356

Bell-Wash..39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

41

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

Cub Cadet 14832

Front Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

Cub Cadet 738-0507B

Shld. Bolt.5" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

45

Cub Cadet 736-0105

Bell-Wash..38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

Cub Cadet 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

Cub Cadet 732-0417A

Rear Spring Lever

$

$

Not available

49

Cub Cadet 14578

Height Adj. Assy. Comp. - RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

?N/I

Cub Cadet 14579

Height Adj. Assy. Comp. - LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

50

Cub Cadet 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

?N/I

Cub Cadet 14766

Pivot Bar L.H.

$19.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

Cub Cadet 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

Cub Cadet 710-0654A

Hex L-Wash. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 4 left!

0

53

Cub Cadet 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

Cub Cadet 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-1017

Torx Mach AB-Tap Scr. 1/4 x.62"

$8.49

$

In Stock, Qty 9

0

55

Cub Cadet 710-0896

HexInd Wash. Scr. 1/4-14:.625

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 682-0516A

Handle Brkt. Ass'y.-- RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 682-0515A

Handle Brkt. Ass'y.-- LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 782-0047A

Cutting Deck

Variations

Cub Cadet 782-0047A-0498

DECK SHELL 21" (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 782-0047A-0638

DECK SHELL 21" (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-0047A-0650

DECK SHELL 21" (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 782-0047A-0665

DECK SHELL 21" YM (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 782-0047A-0667

DECK SHELL 21" MID(MIDNIGHT BLUE) - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 782-0047A-0691

DECK SHELL 21" (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

Cub Cadet 782-0047A-0709

DECK SHELL 21" (MASTERCRAFT GREEN) - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 782-0047A-0716

DECK SHELL 21" CUB(CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

59

Cub Cadet 734-1978

Wheel Black Link

$48.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 736-0270

Bell-Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

63

Cub Cadet 682-7000

Hinged Mulching Plug

$

$

Not available

64

Cub Cadet 731-1409

Chute Deflector: Side Discharge
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

Cub Cadet 710-0599

Hex Hd Self-Tp Scr. 1/4-20 x .5' L.

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 782-5007A

Mulching Baffle Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

67

Cub Cadet 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Variations

Cub Cadet 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 751B224437

Muffler Guard

$

$

Not available

69

Cub Cadet 710-1268

Hex Washer Head Screw

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

$

$

Not available

76

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

77

Cub Cadet 731-0982A

Hub Cap - Rad. Spoke - Beige
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

79

Cub Cadet 738-0213

Rear Axle Bolt

$7.99

$

In Stock, only 2 left!

0

80

Cub Cadet 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

81

$

$

Currently unavailable

82

Cub Cadet 746-0883

Control Housing w/o Lever

$16.99

$

In Stock, only 3 left!

0

83

Cub Cadet 751B281451

Engine Shroud

$

$

Not available
