PR 521 (11A-436F100) - Cub Cadet Walk-Behind Mower (1997) Control Handle Assembly Parts Diagram

Walk-Behind Mower

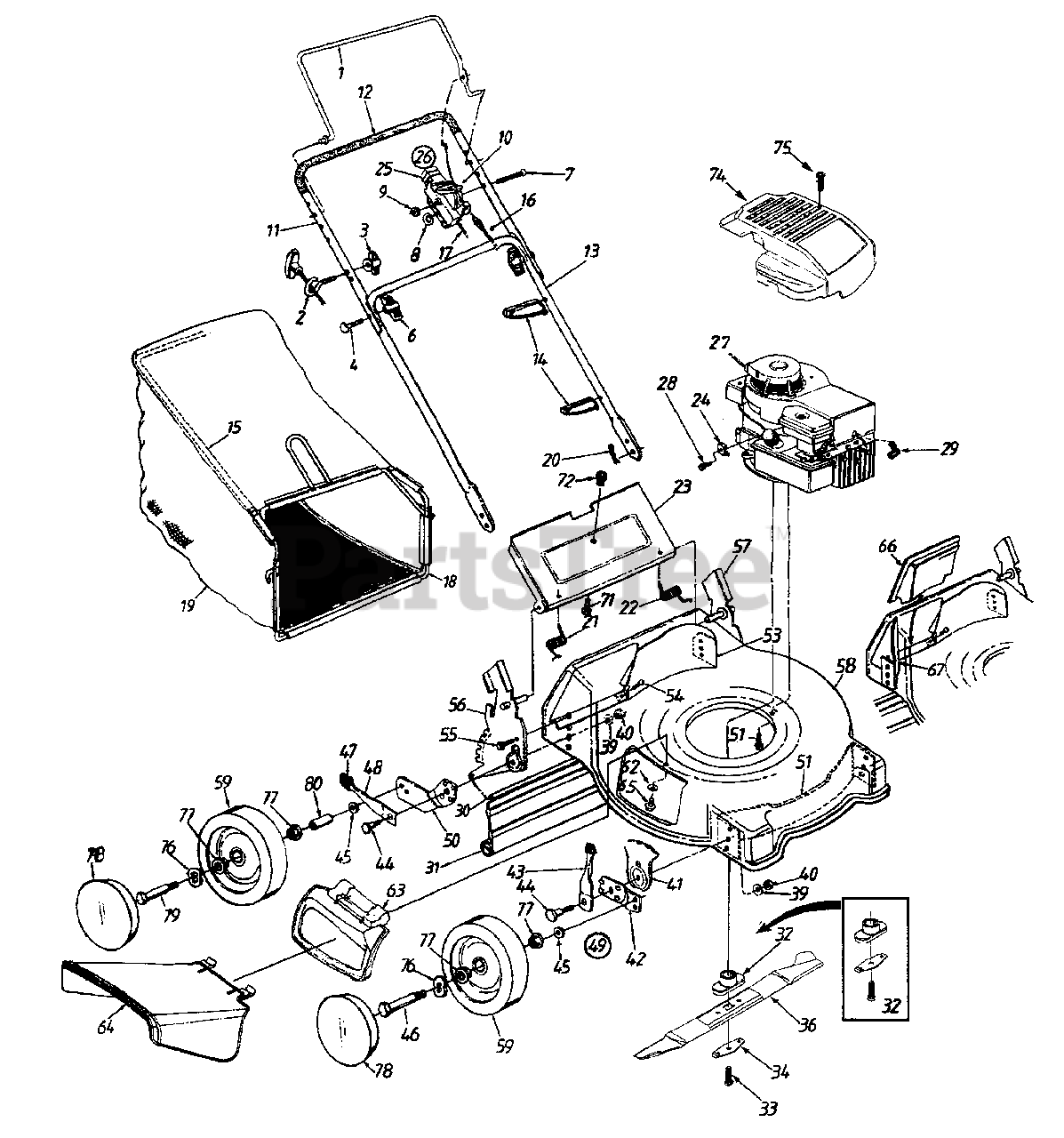

Control Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

7

Cub Cadet 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

10

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

11

Cub Cadet 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

Cub Cadet 749-0538C-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Cub Cadet 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

Cub Cadet 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 746-0553

Control Cable-36"
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 746-0843

Throttle Control Wire-55"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

18

Cub Cadet 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

Cub Cadet 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 764-0457A

Grass Bag
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0678

Door Spring-R.H.

$8.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0677

Door Spring-L.H.
(Superseded to 932-0677)

$

$

Not available

23

Cub Cadet 782-7000

Rear Discharge Door

Variations

Cub Cadet 782-7000-0483

USE 782-7000-0637 DOOR-REAR D - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-7000-0638

USE 782-7000-0637 DOOR-REAR D - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 782-7000-0662

USE 782-7000-0637 DOOR-REAR D - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 782-7000-0665

USE 782-7000-0637 DOOR-REAR D - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 782-7000-0674

REAR DISCHARGE DOOR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

24

Cub Cadet 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

25

Cub Cadet 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

26

Cub Cadet 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 7, 8, 9, 10, 25)

$36.99

$

In Stock, only 1 left!

0

27

Engine

$

$

Not available

28

Cub Cadet 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

30

Cub Cadet 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

Cub Cadet 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

Cub Cadet 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: Code N

$16.99

$

In Stock, only 1 left!

0

33

Cub Cadet 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 2 left!

0

34

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

36

Cub Cadet 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

41

Cub Cadet 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

Cub Cadet 15262B

Pivot Bar

Variations

Cub Cadet 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

Cub Cadet 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

Cub Cadet 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

Cub Cadet 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

Cub Cadet 732-0417A

Spring Lever

$

$

Not available

49

Cub Cadet 14578

Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Cub Cadet 14579

Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

50

Cub Cadet 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 14766

Pivot Bar L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

Cub Cadet 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

?52

Cub Cadet 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

Cub Cadet 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

55

Cub Cadet 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

56

Cub Cadet 682-0516

Handle Brkt. Ass'y.-R.H.
(Superseded to 682-0516-0637)

Variations

Cub Cadet 682-0516-0637

BRACKET-HGT ADJ-RH - POWDER BLACK (0637)

$

$

Not available

$

$

57

Cub Cadet 682-0515

Handle Brkt. Ass'y.-L.H.
(Superseded to 753-05994)

Variations

Cub Cadet 682-0515-0637

Handle Bracket Kit - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 782-0047

21" R.D. w/S.D. Feature

Note: Code 0498

Variations

Cub Cadet 782-0047-0498

DECK - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 782-0047-0667

DECK - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

59

Cub Cadet 734-1819

Wheel Ass'y. Comp.
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 736-0270

Bell-Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

63

Cub Cadet 682-7000

Hinged Mulching Plug

$

$

Not available

64

Cub Cadet 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

Cub Cadet 710-0599

Hex Head Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 782-5007

Mulching Baffle Plug
(Superseded to 782-5007C)

Variations

Cub Cadet 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

67

Cub Cadet 782-5004

Mulching Baffle-R.R.
(Superseded to 782-5004B)

Variations

Cub Cadet 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

?68

Cub Cadet 731-1405

Deflector
(Superseded to 731-1405A)

Note: (Optional)

$

$

Not available

?69

Cub Cadet 711-0996

Rod

Note: (Optional)

$45.99

$

Usually ships in 3-6 days

0

?70

Cub Cadet 726-0201

Push Speed Nut

Note: (Optional)

$6.99

$

In Stock, only 2 left!

0

71

Cub Cadet 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

72

Cub Cadet 720-0275

Knob

$

$

Not available

74

Cub Cadet 710-1256

Hi-Lo Scr. #10 x 1.25" Lg.

$5.99

$

In Stock, only 2 left!

0

75

Cub Cadet 751B281440

XTE Black Shroud

$

$

Not available

76

Cub Cadet 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

77

Cub Cadet 741-0484

Ball Bearings
(Superseded to 941-0484)

Note: (2 Req'd.)

$7.49

$

In Stock, only 1 left!

0

78

Cub Cadet 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

79

Cub Cadet 738-0213

Rear Axle Bolt

$7.99

$

In Stock, only 2 left!

0

80

Cub Cadet 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0
