PR 5020 - Poulan Pro Chainsaw (2016-04) SIDE COVER & CLUTCH Parts Diagram

Chainsaw

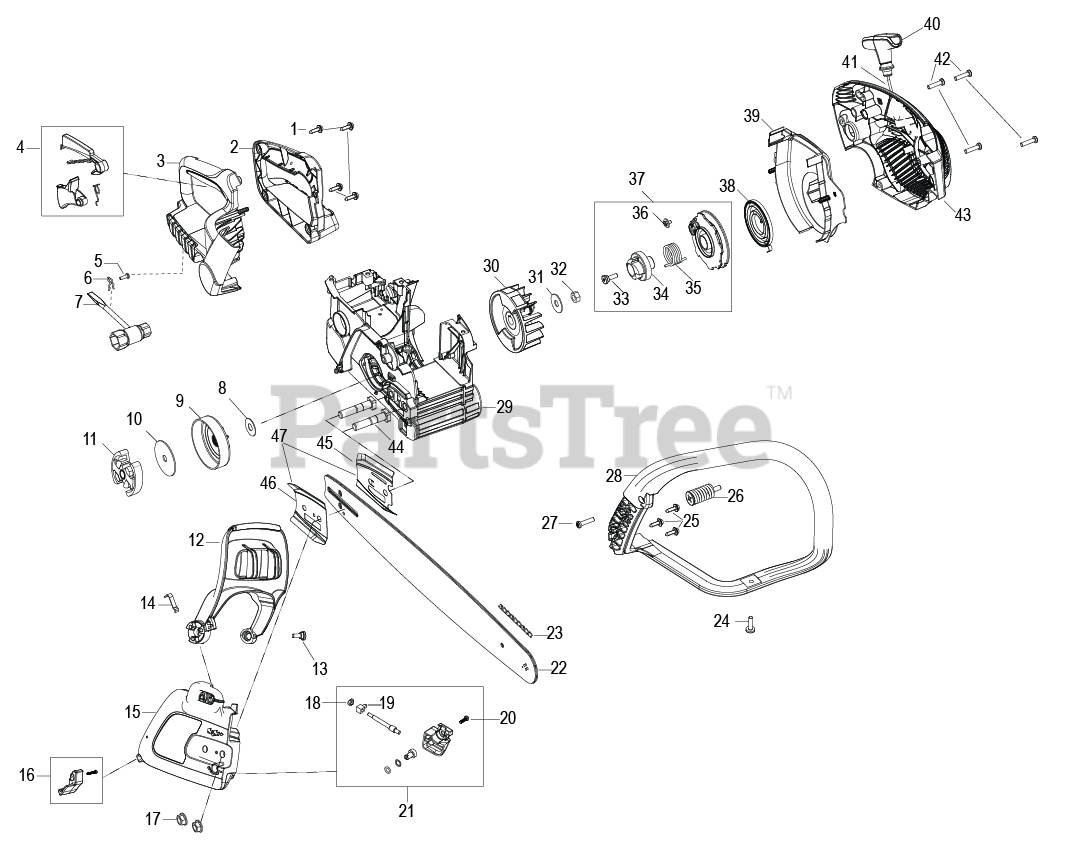

SIDE COVER & CLUTCH Parts Diagram

  • Title

1

Poulan 530016349

Screw-Throttle Hsg.

Note: SCREW

$6.49

$

In Stock, only 1 left!

0

2

Poulan 545171502

REAR HANDLE COVER

Note: COVER REAR HANDLE WITH OVERMOLD

$14.99

$

In Stock, only 1 left!

0

3

Poulan 545171402

REAR HANDLE
(Superseded to 576138701)

Note: HANDLE REAR WITH OVERMOLD

$26.99

$

In Stock, Qty 5

0

4

Poulan 576752802

KIT TRIGGER & LOCKOUT YELLOW

Note: KIT Trigger & Lockout

$5.99

$

Usually ships in 3-10 days

0

5

Poulan 545227101

SCREW 6-19X.437

Note: SCREW

$4.99

$

In Stock, only 2 left!

0

6

Poulan 545204601

SCRENCH RETAINER

Note: CLIP WRENCH

$3.99

$

In Stock, only 1 left!

0

7

Poulan 587417201

WRENCH

Note: WRENCH CHAINBRAKE RESET

$9.49

$

In Stock, only 2 left!

0

8

Poulan 579621501

WASHER

Note: WASHER CLUTCH

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 545171901

CLUTCH DRUM ASSY

Note: SPROCKET DRUM AND SPROCKET ASSY

$11.99

$

In Stock, Qty 5

0

10

Poulan 530015611

FRICTION DISC,CLUTCH 36/41

Note: WASHER Thrust

$6.49

$

In Stock, Qty 11

0

11

Poulan 579551001

CLUTCH ASSY

Note: CLUTCH ASSY

$13.99

$

In Stock, Qty 6

0

12

Poulan 586583901

HANDGUARD

Note: HAND GUARD

$14.99

$

In Stock, only 4 left!

0

13

Poulan 545127301

BOSS SCREW

Note: BOSS SCREW HANDGUARD

$4.99

$

In Stock, only 1 left!

0

14

Poulan 530016416

Spring-Handguard

Note: SPRING SPRING HANDGUARD

$6.49

$

In Stock, only 3 left!

0

15

Poulan 586584001

CHAINBRAKE
(Superseded to 590916701)

Note: CLUTCH COVER ASSY Cover&Side adjusting

$85.99

$

In Stock, only 1 left!

0

16

Poulan 578353401

WEAR PROTECTOR KIT

Note: KIT WEAR PLATE

$34.99

$

In Stock, only 1 left!

0

17

Poulan 530015917

Nut - Bar Mounting

Note: NUT BAR

$3.99

$

In Stock, Qty 16

0

18

Poulan 537017401

SLEEVE

Note: BEARING SLEEVE

$6.49

$

In Stock, only 1 left!

0

19

Poulan 587613901

PAWL

Note: PAWL 50cc Side Adjust

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 545221101

SCREW

Note: SCREW

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 586586801

BAR ADJ KIT

Note: "KIT Bar Adjust (incl 18-20, worm gears, washers)"

$13.99

$

In Stock, only 1 left!

0

22

Poulan 578133803

BAR

Note: "BAR 20"" 3/8 72DL PPRO BN"

$66.99

$

Usually ships in 3-10 days

0

23

Poulan 545196401

CHAIN

Note: SAW CHAIN 20INCH 72V 72V070PN

$

$

Not available

24

Poulan 530016349

Screw-Throttle Hsg.

Note: SCREW

$6.49

$

In Stock, only 1 left!

0

25

Poulan 530016349

Screw-Throttle Hsg.

Note: SCREW

$6.49

$

In Stock, only 1 left!

0

26

Poulan 545170901

CYLINDER SPRING ASSY

Note: SPRING ISO ASSY CYLINDER

$5.99

$

Usually ships in 3-10 days

0

27

Poulan 530016432

SCREW M5.38-14X22.225MM

Note: SCREW SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

28

Poulan 578034501

HANDLE, FRONT

Note: HANDLE FRONT

$26.99

$

In Stock, only 1 left!

0

29

Poulan 586582801

CHASSIS ASSY

Note: CHASSIS ASSY

$68.99

$

Usually ships in 3-10 days

0

30

Poulan 577428701

FLYWHEEL FENGLONG-SAS 95280226

Note: FLYWHEEL Assembly 50cc Fenglong

$31.99

$

In Stock, only 1 left!

0

31

Poulan 530015127

Washer #10 -14 - Flywheel

Note: WASHER FLYWHEEL

$6.49

$

Usually ships in 3-10 days

0

32

Poulan 530016134

Nut- Flywheel

Note: NUT FLYWHEEL

$6.49

$

In Stock, only 2 left!

0

33

Poulan 530021179

Screw-Shoulder

Note: SCREW SHOULDER

$2.49

$

In Stock, only 2 left!

0

34

Poulan 545178201

STARTER HUB

Note: HUB STARTER

$7.99

$

Usually ships in 3-10 days

0

35

Poulan 581481601

SPRING HUB EPS

Note: SPRING HUB EPS

$5.99

$

Usually ships in 3-10 days

0

36

Poulan 530016080

Screw (Incl. in Starter Pulley Kit)

Note: SCREW

$6.49

$

In Stock, only 2 left!

0

37

Poulan 576744401

EPS STARTER KIT

Note: "KIT EPS Starter, INCL. 33-36"

$9.49

$

In Stock, Qty 9

0

38

Poulan 576657801

SPRING

Note: SPRING HUB EPS

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 586583601

BAFFLE

Note: BAFFLE

$5.99

$

In Stock, only 1 left!

0

40

Poulan 585438004

HANDLE

Note: HANDLE STARTER

$4.99

$

In Stock, only 1 left!

0

41

Poulan 530069919

Rope Kit

Note: ROPE KIT

$6.49

$

In Stock, only 1 left!

0

42

Poulan 530016432

SCREW M5.38-14X22.225MM

Note: SCREW

$6.49

$

In Stock, only 3 left!

0

43

Poulan 586583401

STARTER HSG

Note: STARTER HOUSING

$13.99

$

Usually ships in 3-10 days

0

44

Poulan 530015877

BAR BOLT 36/41

Note: Bolt - Bar

$7.49

$

Usually ships in 3-10 days

0

45

Poulan 580368701

GUIDE PLATE

Note: Bar Plate - Inside

$6.99

$

In Stock, only 3 left!

0

46

Poulan 580368801

GUIDE PLATE

Note: Bar Plate - Outside

$6.99

$

In Stock, only 1 left!

0

47

Poulan 584896801

KIT PLATE CHAIN GUIDE

Note: "Kit - Bar Plate (Incl. 45, 46)"

$20.99

$

Usually ships in 3-10 days

0

-

Poulan 587559201

DECAL

Note: WARNING

$3.99

$

Usually ships in 3-10 days

0
