PR 5020 - Poulan Pro Chainsaw (2016-04) HOUSING Parts Diagram

Chainsaw

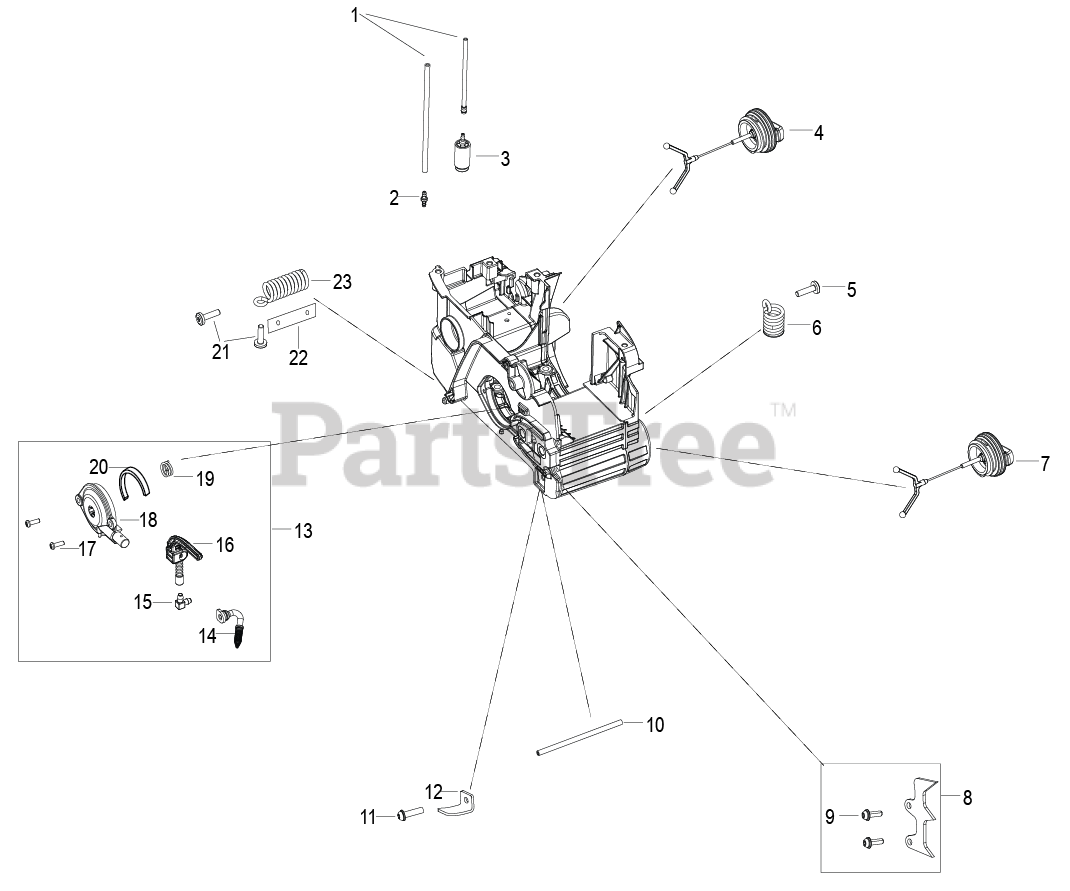

HOUSING Parts Diagram

  • Title

1

Poulan 580727103

KIT FUEL HOSE LP1200
(Superseded to 580727101)

Note: FUEL LINE KIT

$17.99

$

In Stock, only 1 left!

0

2

Poulan 530023877

Fitting - Fuel line

Note: NIPPLE FITTING - FUEL LINE

$5.99

$

In Stock, Qty 6

0

3

Poulan 577167201

ASSY FUEL PICKUP PRE FLUSHED

Note: FUEL PICKUP ASSEMBLY

$7.99

$

Usually ships in 3-10 days

0

4

Poulan 544111204

TANK CAP ASSY
(Superseded to 544111203)

Note: FUEL CAP ASSEMBLY

$6.99

$

In Stock, Qty 19

0

5

Poulan 545210201

SCREW

Note: SCREW M5.28X1.81X20MM

$6.99

$

Usually ships in 3-10 days

0

6

Poulan 590681801

NEEDS DESCRIPTION

Note: ISOLATOR FRONT ASSY

$

$

Currently unavailable

7

Poulan 544111204

TANK CAP ASSY
(Superseded to 544111203)

Note: OIL CAP ASSEMBLY

$6.99

$

In Stock, Qty 19

0

8

Poulan 530014381

Kit-Spike Assy.

Note: FELLING DOG KIT SPIKE ASSEMBLY

$9.99

$

In Stock, Qty 11

0

9

Poulan 530016439

Screw

Note: SCREW

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 545033501

OIL TUBE

Note: OIL VENT ASSEMBLY

$6.99

$

In Stock, only 1 left!

0

11

Poulan 530016432

SCREW M5.38-14X22.225MM

Note: SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

12

Poulan 530029850

CHAIN CATCHER 36/41

Note: CHAIN CATCHER

$6.49

$

In Stock, only 4 left!

0

13

Poulan 576753201

OIL PUMP KIT

Note: "KIT OIL PUMP, INCL. 16-21"

$22.99

$

In Stock, only 1 left!

0

14

Poulan 545221301

OIL PICK UP W/FILTER ASSY

Note: OIL PICKUP ASSY. W/FILTER

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530049477

Elbow-Oil Pickup

Note: ELBOW OIL LINE

$4.99

$

In Stock, only 4 left!

0

16

Poulan 545128801

OIL BLOCK

Note: BLOCK OIL

$4.99

$

In Stock, only 2 left!

0

17

Poulan 545227101

SCREW 6-19X.437

Note: SCREW

$4.99

$

In Stock, only 2 left!

0

18

Poulan 545165402

OIL PUMP ASSY

Note: OIL PUMP ASSEMBLY

$13.99

$

Usually ships in 3-10 days

0

19

Poulan 530037820

Gear-Worm Spring

Note: WORM GEAR

$6.49

$

In Stock, only 3 left!

0

20

Poulan 525318401

SEAL

Note: DUST SEAL OIL PUMP

$3.99

$

In Stock, only 1 left!

0

21

Poulan 545210201

SCREW

Note: SCREW M5.28X1.81X20MM

$6.99

$

Usually ships in 3-10 days

0

22

Poulan 578297201

STRAP

Note: STRAP AV

$22.99

$

In Stock, only 4 left!

0

23

Poulan 545178801

SPRING

Note: SPRING ISOLATOR REAR

$6.99

$

Usually ships in 3-10 days

0
