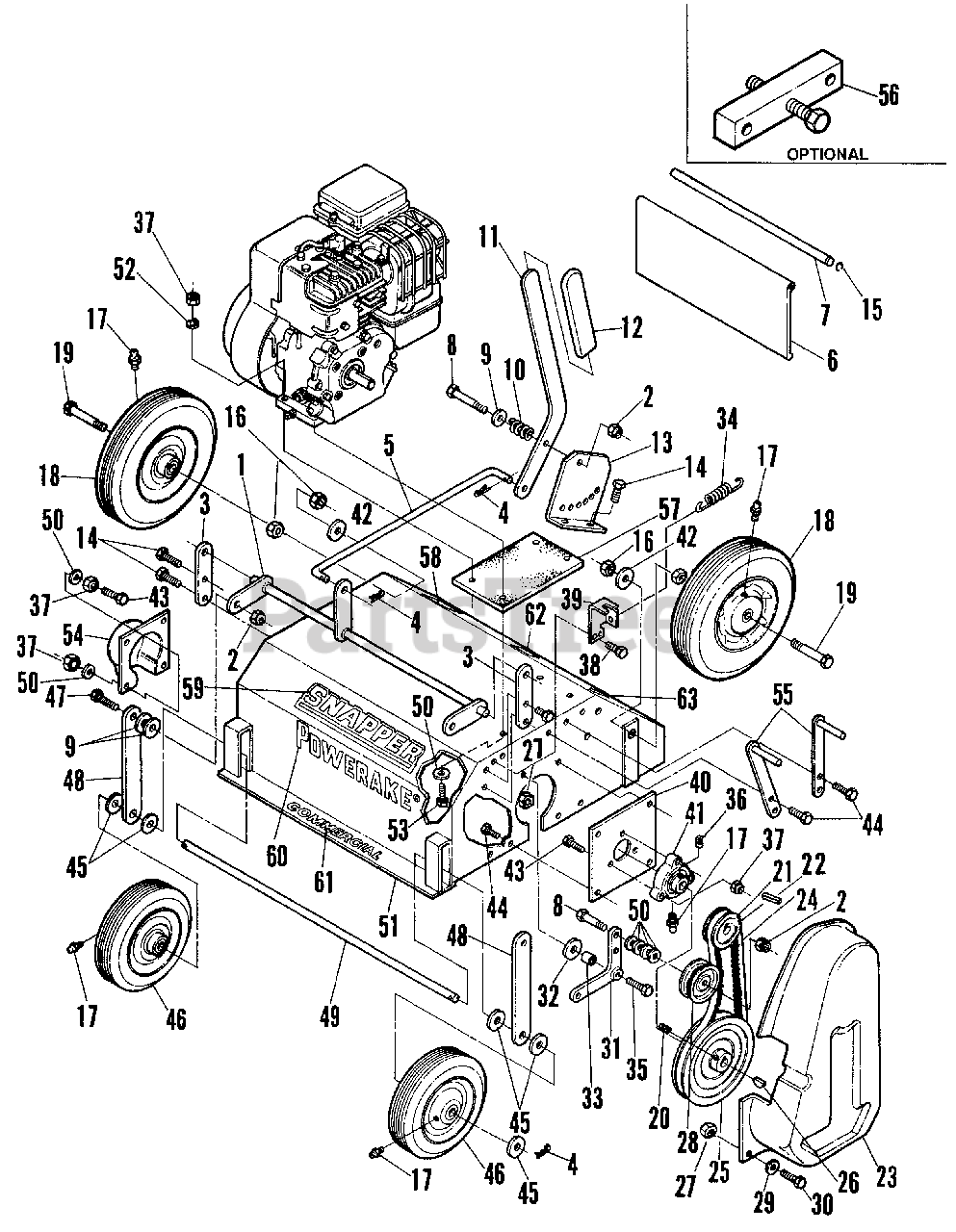

PR 5001 (88810) - Snapper 17" Power Rake, 5hp Main Deck Assembly Parts Diagram

17" Power Rake, 5hp

Main Deck Assembly Parts Diagram

  • Title

1

Snapper 7076052

ROD, Height Adjustment, Complete
(Superseded to 7076052YP)

$147.99

$

Usually ships in 2-12 days

0

2

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7076077

ARM, Pivot
(Superseded to 7076077YP)

$10.99

$

Usually ships in 2-12 days

0

4

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7076075

ARM, Linkage
(Superseded to 7076075YP)

$9.99

$

Usually ships in 2-12 days

0

6

Snapper 7076055

DEFLECTOR

$

$

Not available

7

Snapper 7076076

ROD, Deflector
(Superseded to 7076076YP)

$17.99

$

Usually ships in 2-12 days

0

8

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, Grade 5
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7090517

WASHER, 3/8" Standard Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

10

Snapper 7076438

SPRING, Compression

$

$

Not available

11

Snapper 7077083

ADJUSTMENT LEVER w/Grip
(Superseded to 7077083YP)

$32.99

$

Usually ships in 2-12 days

0

12

Snapper 7076526

GRIP, Adjustment Lever
(Superseded to 7076526YP)

$3.99

$

In Stock, only 1 left!

0

13

Snapper 7076121

GAUGE, Adjustment

$

$

Currently unavailable

14

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

15

Snapper 7076961

RING, 5/16 External Retaining
(Superseded to 7076961YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7090278

NUT, 5/8-11 Hex Jam

$

$

Not available

17

Snapper 7076998

FITTING, 1/4-28 Straight Grease
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

18

Snapper 7076064

REAR WHEEL, 10" w/Grease Fitting. (7-6998)
(Superseded to 7076064YP)

$54.99

$

Usually ships in 2-12 days

0

19

Snapper 7076931

SCREW, 5/8-11 x 4" Hex Head Cap, Grade 2
(Superseded to 7076931YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7076956

SCREW, 5/16-18 x 3/8" Socket Head Set
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7077038

PULLEY

Note: Was 76087

$

$

Currently unavailable

22

Snapper 7076990

KEY, 3/16" Square x 1-3/4" Machine
(Superseded to 7076990YP)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 7076086

BELT GUARD

$

$

Not available

24

Snapper 7076085

BELT
(Superseded to 1674312SM)

$28.99

$

In Stock, only 3 left!

0

25

Snapper 7076066

PULLEY, 7"
(Superseded to 7076066YP)

$98.99

$

Usually ships in 2-12 days

0

26

Snapper 7010211

KEY, #9/606 Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

27

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7076500

PULLEY, Idler, 3/8" ID, 2.75" OD, 7/8" Wide
(Superseded to 7076500YP)

$29.99

$

Usually ships in 2-12 days

0

29

Snapper 7091098

WASHER, 1/4" Standard Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap, Grade 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

31

Snapper 7076088

BELL CRANK

$

$

Not available

32

Snapper 7076082

SPACER
(Superseded to 7076082YP)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper 7076453

BUSHING, Powdered Metal

$

$

Not available

34

Snapper 7076564

SPRING
(Superseded to 7076564YP)

$8.49

$

In Stock, only 2 left!

0

35

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

36

Snapper 7077679

SCREW, #10-32 x 1/4" Socket Head Set
(Superseded to 7077679YP)

$2.99

$

Usually ships in 2-12 days

0

37

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 10

0

39

Snapper 7032815

BRACKET, Cable
(Superseded to 7032815YP)

$9.99

$

Usually ships in 2-12 days

0

40

Snapper 7076059

END PLATE

$

$

Currently unavailable

41

Snapper 7076072

FLANGE BEARING w/Set Screws (7-7679)

$

$

Not available

42

Snapper 7090333

WASHER, 5/8" Split Lock
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

43

Snapper 7076948

TAPBOLT, 5/16-18 x 1-1/4" Hex Head

$

$

Currently unavailable

44

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 8

0

45

Snapper 7090550

WASHER, 1/2" Flat
(Superseded to 7090550YP)

$

$

Not available

46

Snapper 7076063

FRONT WHEEL, 8" w/Grease Fitting. (7-6998)

$

$

Currently unavailable

47

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 2
(Superseded to 703871)

Note: Was 76927

$4.99

$

Usually ships in 2-12 days

0

48

Snapper 7076060

LIFT ARM

$

$

Currently unavailable

49

Snapper 7076058

FRONT AXLE
(Superseded to 7076058YP)

$32.99

$

Usually ships in 2-12 days

0

50

Snapper 7090692

WASHER, 5/16" Standard Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

51

Snapper 7077037

BODY w/DECALS, Powerake

$

$

Currently unavailable

51

Snapper 7077185

BODY w/DECALS, Powerslice

$

$

Currently unavailable

52

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

53

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

54

Snapper 7076524

GUARD, Shaft

Note: Was 76071

$

$

Not available

55

Snapper 7076105

GUIDE, Belt
(Superseded to 7076105YP)

$11.99

$

Usually ships in 2-12 days

0

56

Snapper 7077046

NLA - PULLEY PULLER

Note: (Optional)

$

$

Currently unavailable

57

Snapper 7076070

ENGINE PAD
(Superseded to 7076070YP)

$9.99

$

Usually ships in 2-12 days

0

58

Snapper 7077950

DECAL

$

$

Not available

59

Snapper 7019249

DECAL, Snapper

$

$

Currently unavailable

60

Snapper 7076128

DECAL, Powerake

$

$

Currently unavailable

60

Snapper 7076326

DECAL, Powerslice

$

$

Currently unavailable

61

Snapper 7076682

DECAL, Commercial

$

$

Currently unavailable

62

DECAL, Unknown

$

$

Not available

63

DECAL, Unknown

$

$

Not available
