PR 4218 - Poulan Pro Chainsaw (2018-11) STARTER Parts Diagram

Chainsaw

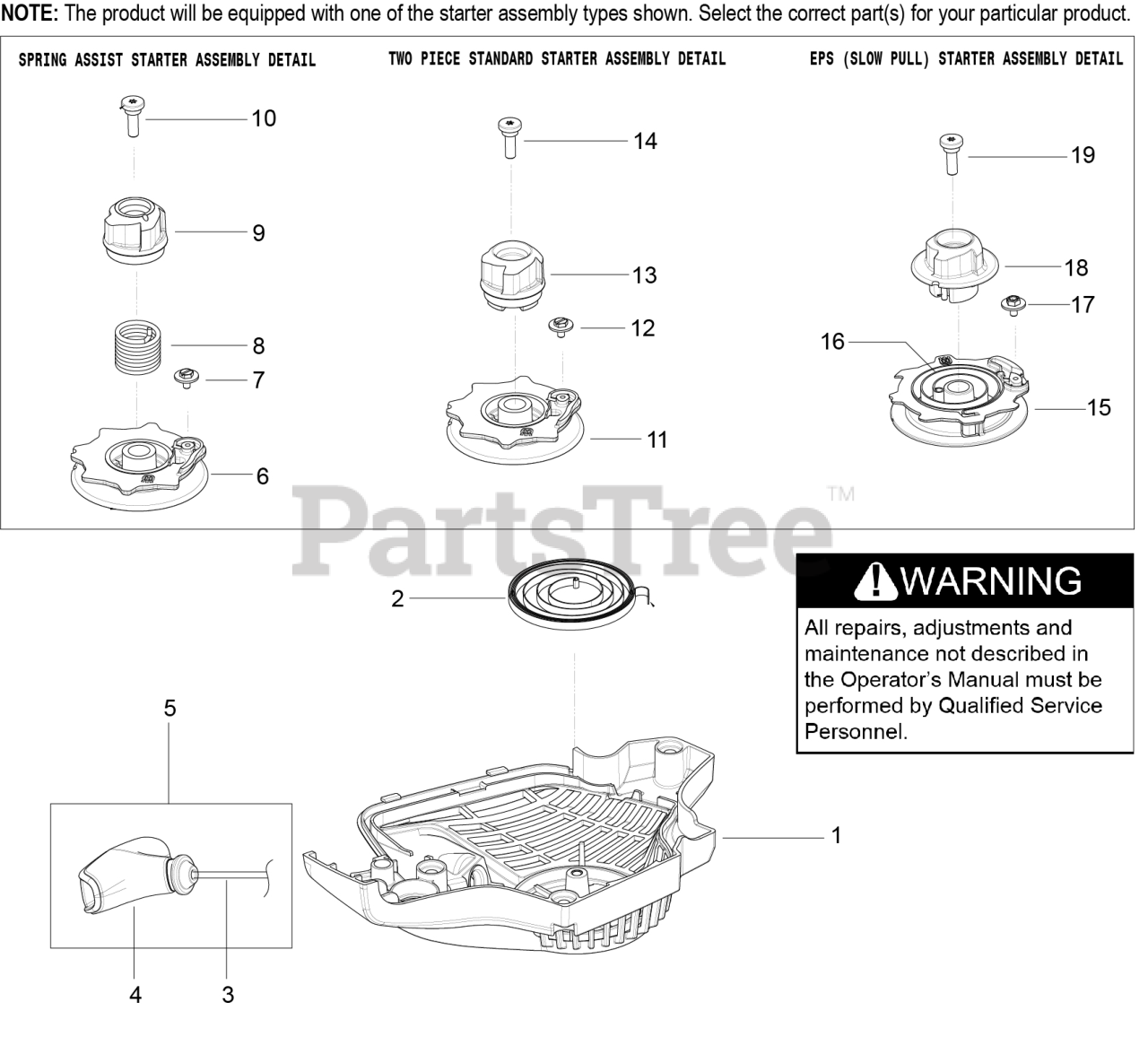

STARTER Parts Diagram

  • Title
1

Poulan 585945202

HOUSING FAN PP POULAN GREEN

Note: FAN HOUSING (POULAN)

$14.99

$

In Stock, only 1 left!

0

1

Poulan 585945201

NEEDS DESCRIPTION

Note: FAN HOUSING (POULAN PRO)

$

$

Currently unavailable

1

Poulan 586867201

FAN HOUSING

Note: FAN HOUSING (MCCULLOCH)

$13.99

$

Usually ships in 3-10 days

0

2

Poulan 576657801

SPRING

Note: STARTER SPRING

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 530021161

ROPE

Note: STARTER ROPE

$4.99

$

In Stock, only 4 left!

0

4

Poulan 545006108

Handle-Starter

Note: STARTER HANDLE

$8.99

$

In Stock, only 1 left!

0

5

Poulan 545010009

ASSY ROPE & HANDLE HUSKY GREY

Note: HANDLE AND ROPE ASSY

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 580973601

STARTER PULLEY

Note: PULLEY (SPRING-ASSIST STARTER)

$9.49

$

In Stock, Qty 5

0

7

Poulan 530016080

Screw (Incl. in Starter Pulley Kit)

Note: PLASTITE SCREW

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 530021180

Spring-EPS

Note: TORSION SPRING (SPRING ASSIST STARTER)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 530059677

Starter Hub-EPS

Note: HUB (SPRING ASSIST STARTER)

$9.99

$

In Stock, Qty 6

0

10

Poulan 530021179

Screw-Shoulder

Note: SHOULDER SCREW

$2.49

$

In Stock, only 1 left!

0

11

Poulan 580973601

STARTER PULLEY

Note: PULLEY (TWO-PIECE STARTER)

$9.49

$

In Stock, Qty 5

0

12

Poulan 530016080

Screw (Incl. in Starter Pulley Kit)

Note: PLASTITE SCREW

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 581594701

NEEDS DESCRIPTION

Note: HUB (TWO-PIECE STARTER)

$2.49

$

In Stock, only 1 left!

0

14

Poulan 530021179

Screw-Shoulder

Note: SHOULDER SCREW

$2.49

$

In Stock, only 1 left!

0

15

Poulan 584400103

PULLEY STARTER SLOW-PULL

Note: PULLEY (SLOW-PULL STARTER)

$4.99

$

In Stock, only 3 left!

0

16

Poulan 586107101

SPRING POWER, SLOW-PULL

Note: POWER SPRING (SLOW-PULL STARTER)

$7.99

$

Usually ships in 3-10 days

0

17

Poulan 530016080

Screw (Incl. in Starter Pulley Kit)

Note: PLASTITE SCREW

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 586109701

HUB ASSY STARTER SLOW PULL

Note: HUB (SLOW-PULL STARTER)

$4.99

$

Usually ships in 3-10 days

0

19

Poulan 530021179

Screw-Shoulder

Note: SHOULDER SCREW

$2.49

$

In Stock, only 1 left!

0

-

Poulan 594090401

KIT SAS2 THICK WALL SLOW PULL

Note: SLOW-PULL STARTER PULLEY ASSY

$17.99

$

In Stock, only 1 left!

0
