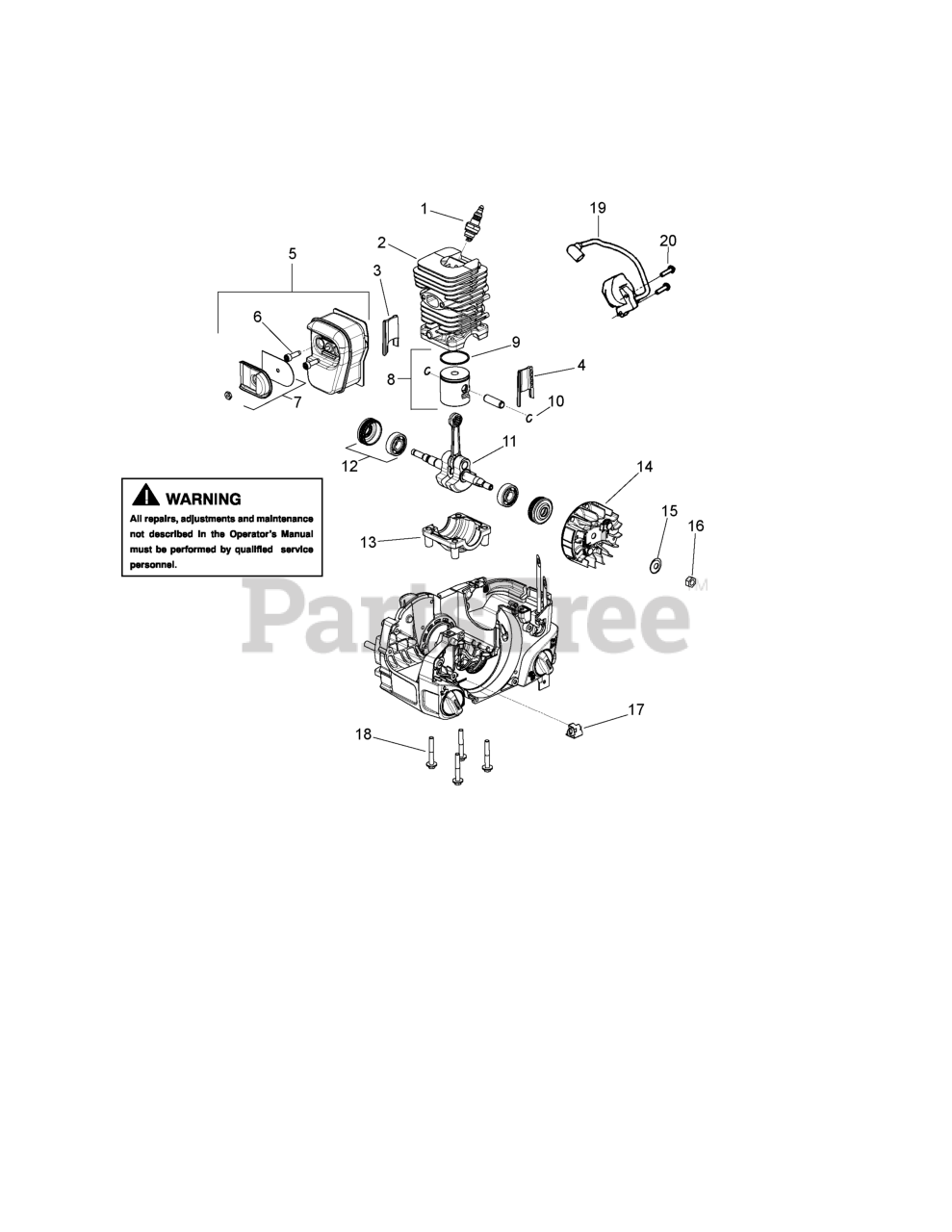

PR 4218 - Poulan Pro Chainsaw (2018-11) CYLINDER Parts Diagram

Chainsaw

CYLINDER Parts Diagram

  • Title

1

Poulan 585358201

SPARK PLUG

Note: "SPARK PLUG BRISK M14x1,25 HQT-1"

$

$

Not available

2

Poulan 530071884

Kit-Cylinder

Note: "CYLINDER KIT (INCL. CYLINDER, 3, 4)"

$56.99

$

In Stock, only 1 left!

0

3

Poulan 545015401

Insert-Right (gray) Cyl.

Note: RIGHT INSERT (GRAY)

$6.49

$

In Stock, only 3 left!

0

4

Poulan 545015301

Insert-Left (black) Cyl.

Note: LEFT INSERT (BLACK)

$4.99

$

In Stock, only 4 left!

0

5

Poulan 501809001

MUFFLER ASSY

Note: MUFFLER ASSY

$31.99

$

Usually ships in 3-10 days

0

6

Poulan 530016338

Screw - Muffler

Note: MUFFLER BOLT

$3.99

$

In Stock, only 2 left!

0

7

Poulan 545081701

SPARK ARRESTER

Note: SPARK ARRESTER ASSY

$8.99

$

In Stock, only 1 left!

0

8

Poulan 582023101

KIT SVC PISTON NV PLATED SAS

Note: "PISTON KIT (INCL. PISTON, PIN, 9, 10)"

$34.99

$

Usually ships in 3-10 days

0

9

Poulan 545160401

PISTON RING 42CC

Note: PISTON RING

$6.49

$

In Stock, only 1 left!

0

10

Poulan 530015697

Retainer - Piston Pin

Note: PISTON PIN RETAINER

$6.49

$

In Stock, Qty 6

0

11

Poulan 587602501

CRANKSHAFT GVG

Note: CRANKSHAFT & CON ROD ASSY

$62.99

$

In Stock, only 1 left!

0

12

Poulan 530056363

BEARING & SEAL ASSEMBLY

Note: CRANKSHAFT BEARING & SEAL ASSY

$18.99

$

In Stock, only 2 left!

0

13

Poulan 586120501

CAP CRANKCASE

Note: CRANKCASE CAP

$9.49

$

Usually ships in 3-10 days

0

14

Poulan 545016308

Assy-Flywheel
(Superseded to 578193802)

Note: FLYWHEEL ASSY

$17.99

$

Usually ships in 3-10 days

0

15

Poulan 530015127

Washer #10 -14 - Flywheel

Note: FLYWHEEL WASHER

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530016134

Nut- Flywheel

Note: FLYWHEEL NUT

$6.49

$

In Stock, only 1 left!

0

17

Poulan 585365601

STRAP GROUND SAS2

Note: GROUND STRAP

$6.99

$

Usually ships in 3-10 days

0

18

Poulan 545081501

BOLT

Note: CYLINDER BOLT

$6.99

$

Usually ships in 3-10 days

0

19

Poulan 583944903

MODULE SAS2 PHELON

Note: IGNITION MODULE

$34.99

$

Usually ships in 3-10 days

0

20

Poulan 530016432

SCREW M5.38-14X22.225MM

Note: SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0
