PR 4218 - Poulan Pro Chainsaw (2018-11) CHASSIS / FRAME Parts Diagram

Chainsaw

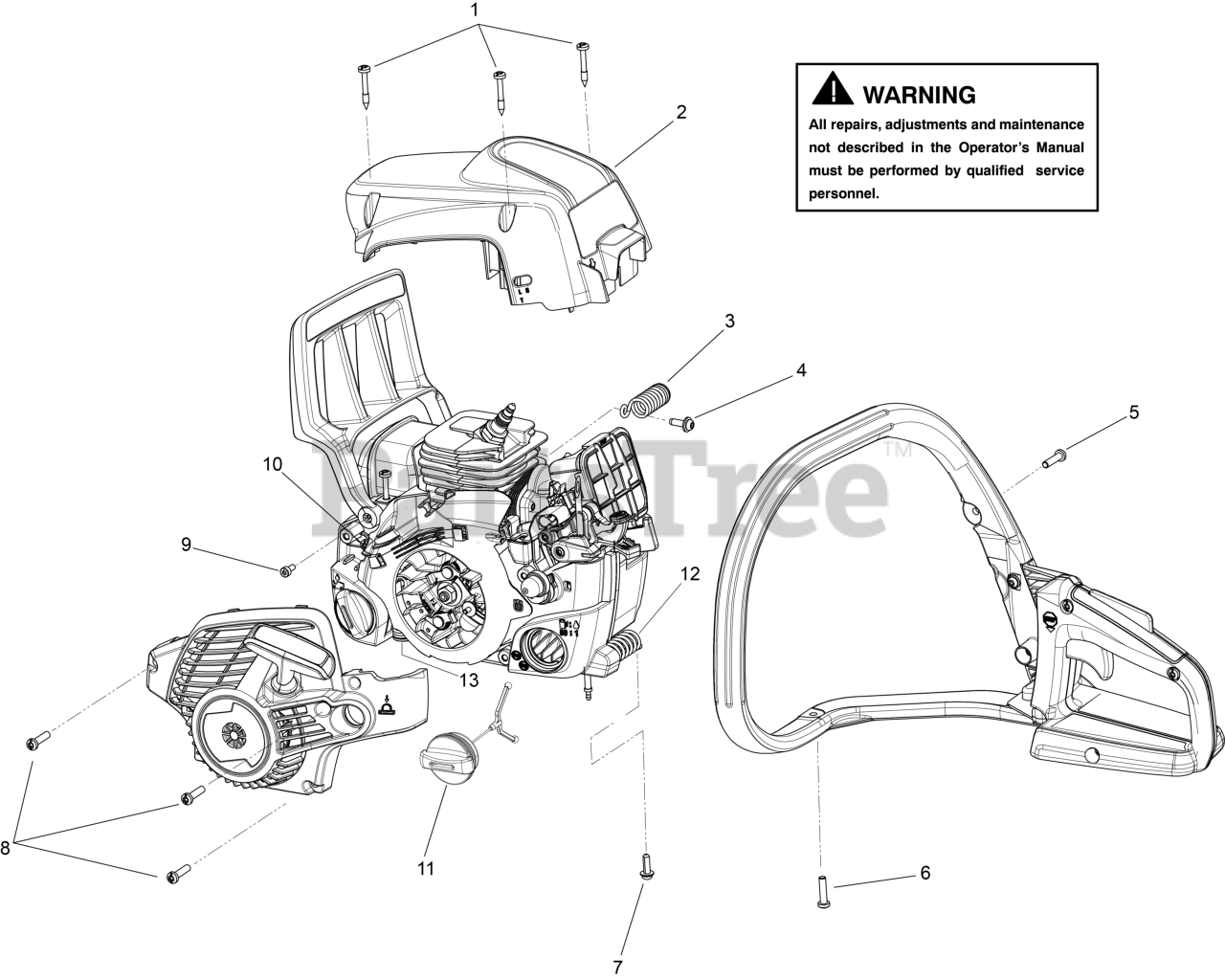

CHASSIS / FRAME Parts Diagram

  • Title

1

Poulan 530016153

Screw p

Note: CAPTIVE SCREW

$6.49

$

In Stock, only 1 left!

0

2

Poulan 586561401

SHIELD CYLINDER

Note: CYLINDER SHIELD (MCC/PP), STD CHOKE CARB

$17.99

$

Usually ships in 3-10 days

0

3

Poulan 585436301

NEEDS DESCRIPTION

Note: UPPER REAR ISOLATOR SPRING

$12.99

$

In Stock, only 1 left!

0

4

Poulan 530016443

M5.0X0.8X16 TT TRX SEMS

Note: SCREW

$4.99

$

In Stock, only 1 left!

0

5

Poulan 530016432

SCREW M5.38-14X22.225MM

Note: SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

6

Poulan 530016432

SCREW M5.38-14X22.225MM

Note: SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

7

Poulan 530015906

SCREW,FRONT HBAR 36/41

Note: SCREW

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 530016432

SCREW M5.38-14X22.225MM

Note: SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

9

Poulan 588274601

SPRING HANDGUARD

Note: HANDGUARD SPRING

$3.99

$

In Stock, only 3 left!

0

10

Poulan 530016432

SCREW M5.38-14X22.225MM

Note: SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

11

Poulan 544111204

TANK CAP ASSY
(Superseded to 544111203)

Note: TANK CAP ASSY

$6.99

$

In Stock, Qty 16

0

12

Poulan 585005701

SPRING REAR ISOLATOR

Note: LOWER REAR ISOLATOR SPRING

$5.99

$

Usually ships in 3-10 days

0

13

Poulan 586448101

NEEDS DESCRIPTION

Note: FRONT ISOLATOR SPRING

$3.49

$

Usually ships in 3-10 days

0
