PR 3001 (88840) - Snapper 17" Power Rake, 3hp Main Deck Assembly Parts Diagram

17" Power Rake, 3hp

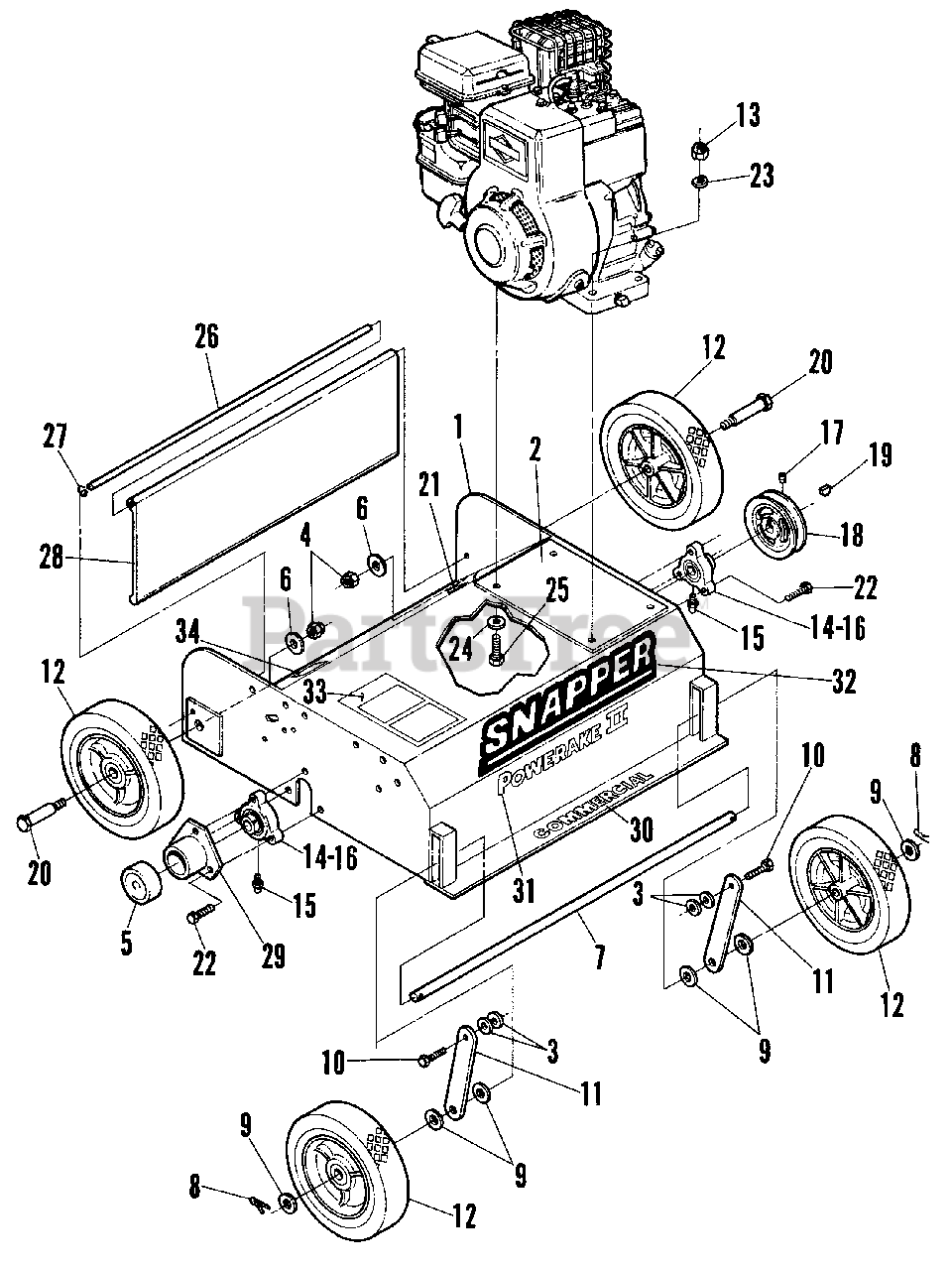

Main Deck Assembly Parts Diagram

  • Title

1

Snapper 7077091

BODY w/Decals

$

$

Currently unavailable

2

Snapper 7076070

ENGINE PAD
(Superseded to 7076070YP)

$9.99

$

Usually ships in 2-12 days

0

3

Snapper 7090517

WASHER, 3/8" Standard Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

4

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7076124

CAP, Shaft Guard

$

$

Currently unavailable

6

Snapper 7090250

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

7

Snapper 7076113

AXLE, Front

$

$

Currently unavailable

8

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7090550

WASHER, 1/2" Standard Flat
(Superseded to 7090550YP)

$

$

Not available

10

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 2
(Superseded to 703871)

Note: Was 76927

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7076114

LIFT ARM

$

$

Currently unavailable

12

Snapper 7076133

WHEEL, 8"
(Superseded to 7076133YP)

$27.99

$

Usually ships in 2-12 days

0

Snapper 7077084

STEEL WHEEL

Note: (Optional)

$

$

Currently unavailable

13

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7076072

BEARING, Cast Iron Flange

$

$

Not available

15

Snapper 7076998

FITTING, 1/4-20 Grease
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

16

Snapper 7077679

SCREW, #10-32 x 1/4" Knurled Cup Point Set
(Superseded to 7077679YP)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper 7076956

SCREW, 5/16-18 x 3/8" Knurled Cup Point Set
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7077085

PULLEY, w/Set Screw (7-6956)
(Superseded to 7077085YP)

$91.99

$

Usually ships in 2-12 days

0

19

Snapper 7010211

KEY, #9/606 Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

20

Snapper 7076259

BOLT, Axle

$

$

Currently unavailable

21

Snapper 7013010

DECAL, Warning
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

22

Snapper 7076948

BOLT, 5/16-18 x 1-1/4" Hex Head Tap

$

$

Currently unavailable

23

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7090692

WASHER, 5/16" Standard Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 7076109

ROD, Deflector

$

$

Currently unavailable

27

Snapper 7076961

RING, 5/16" Retaining
(Superseded to 7076961YP)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7076110

DEFLECTOR

$

$

Not available

29

Snapper 7076103

GUARD, Shaft

$

$

Currently unavailable

30

Snapper 7076682

DECAL, Commercial

$

$

Currently unavailable

31

Snapper 7076135

DECAL, Powerake II

$

$

Currently unavailable

32

Snapper 7019249

DECAL, Snapper

$

$

Currently unavailable

33

Snapper 7077950

DECAL, Instructions

$

$

Not available

34

Snapper 7077750

DECAL, Caution

$

$

Currently unavailable
