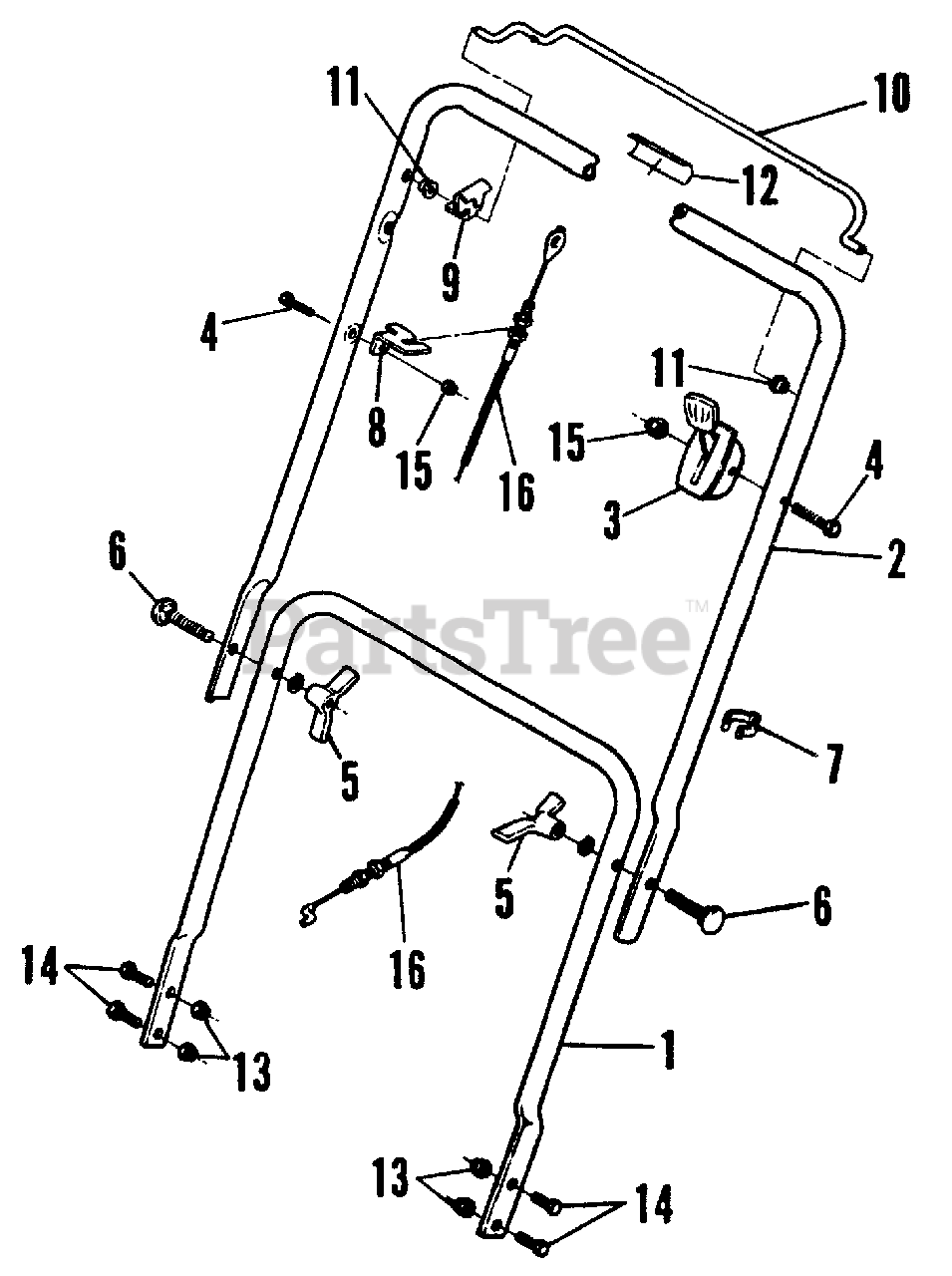

PR 3001 (88840) - Snapper 17" Power Rake, 3hp Handle Assembly Parts Diagram

17" Power Rake, 3hp

Handle Assembly Parts Diagram

  • Title

1

Snapper 7076112

LOWER HANDLE

$

$

Currently unavailable

2

Snapper 7038460

UPPER HANDLE

$

$

Currently unavailable

3

Snapper 7076065

CONTROL, Throttle

$

$

Not available

4

Snapper 7090639

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 7090639YP)

$3.49

$

In Stock, only 1 left!

0

5

Snapper 7076132

KNOB

$

$

Not available

6

Snapper 7090760

BOLT, 5/16-18 x 2" Round Head Square Neck, Grade 5

$

$

Not available

7

Snapper 76223

CABLE CLIP, 7/8"
(Superseded to 76223GS)

$14.99

$

Usually ships in 2-12 days

0

8

Snapper 7032816

MOUNT, Cable
(Superseded to 7032816YP)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 7032593

CATCH, Bail

$

$

Not available

10

Snapper 7019210

BAIL
(Superseded to 7019210YP)

$23.99

$

Usually ships in 2-12 days

0

11

Snapper 7015601

BUSHING, 5/16" I.D.

$1.99

$

In Stock, only 1 left!

0

12

Snapper 7023705

DECAL, Clutch Control

$

$

Currently unavailable

13

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

15

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7023704

CABLE, Drive 66.5"
(Superseded to 7023704YP)

$31.99

$

In Stock, only 1 left!

0
