PR 300 (961920071-05) - Poulan Pro Snow Thrower (2018-02) "CHASSIS, ENGINE & PULLEYS" 4 Parts Diagram

Snow Thrower

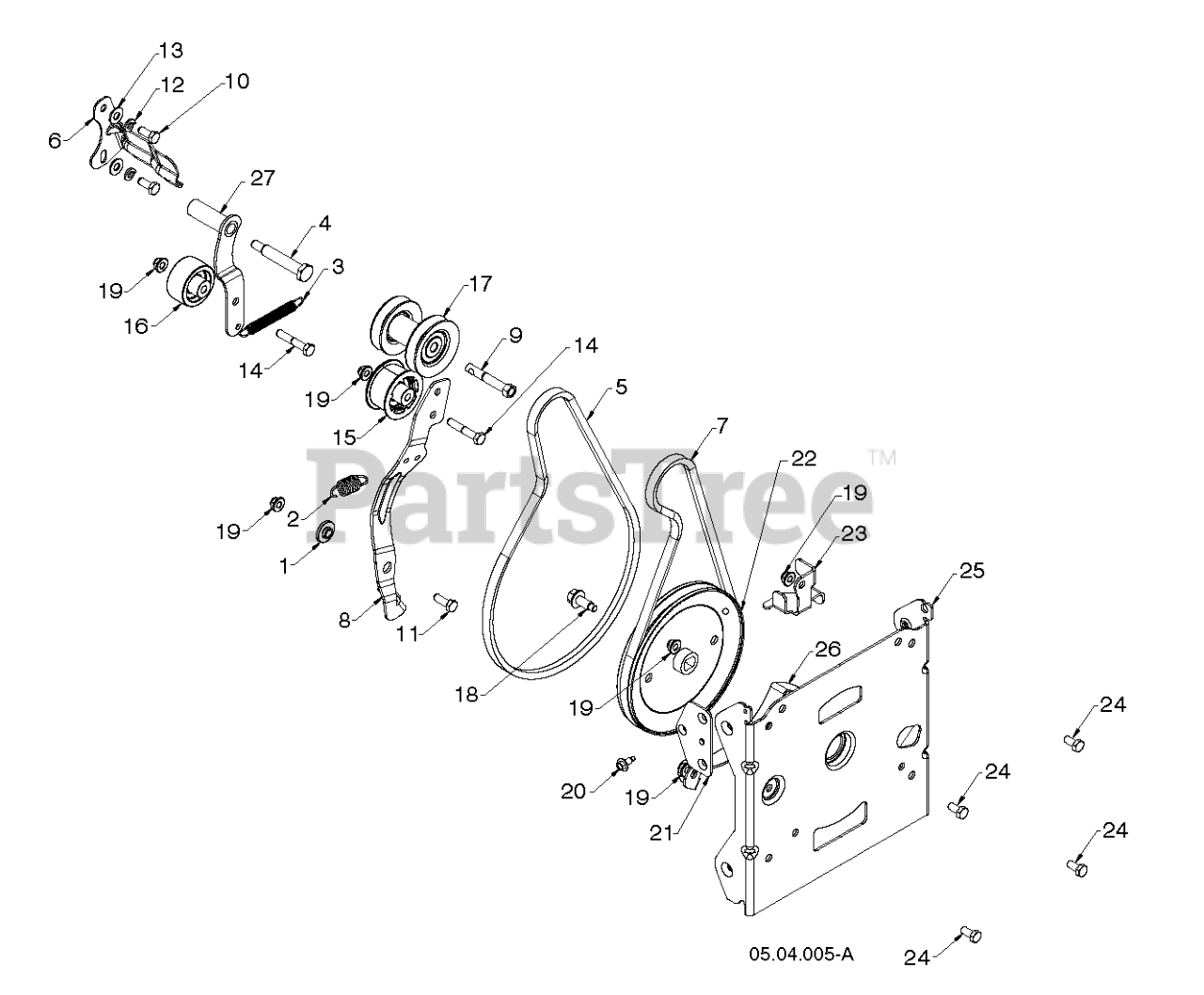

"CHASSIS, ENGINE & PULLEYS" 4 Parts Diagram

  • Title
1

Poulan 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

2

Poulan 587031201

SPRING RETURN, IDLER ARM, IMPE

$5.99

$

Usually ships in 3-10 days

0

3

Poulan 580753001

SPRING RETURN IDLER ARM

$5.99

$

In Stock, only 4 left!

0

4

Poulan 581413801

BOLT 5/16-24X2.25 HEX HEAD SHO

$4.99

$

In Stock, only 3 left!

0

5

Poulan 584216102

BELT.DRIVE.SNOW.DUAL

$17.99

$

In Stock, Qty 16

0

6

Poulan 588492802

BELT KEEPER BRACKET

$6.99

$

Usually ships in 3-10 days

0

7

Poulan 501818201

LOW CRANK IMPELLER BELT

$17.99

$

In Stock, Qty 7

0

8

Poulan 580831106

ARM.IDLER.AUTO-PH.676

$9.49

$

In Stock, only 1 left!

0

9

Poulan 582388401

BOLT.ENGINE.PULLEY

$5.99

$

Usually ships in 3-10 days

0

10

Poulan 874610512

SCREW 5/16-24 X .75 GR5

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 874760514

Hex, Bolt 5/16 x 18 UNC x 7/8 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

12

Poulan 810040500

Washer Lock Hvy Hlcl 1/4 (Order from Engine Manufacturer) (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 819111216

Washer 11/32 x 3/4 x 16 Gauge (AYP part number)
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

14

Poulan 874760528

Bolt, Hex 5/16-18 x 1-3/4 (AYP part number)

$4.99

$

In Stock, Qty 12

0

15

Poulan 581141401

PULLEY,IDLER,2.00 W SPA
(Superseded to 581141402)

$11.99

$

In Stock, Qty 6

0

16

Poulan 586880201

PULLEY.IDLER.FLANG.2.O/SPACER
(Superseded to 586880202)

$12.99

$

Usually ships in 3-10 days

0

17

Poulan 587893703

PULLEY.ASM.IMPELLER/DRIVE

$31.99

$

In Stock, only 3 left!

0

18

Poulan 583814901

SCREW FLANGE HEAD CAP WITH DOG

$

$

Not available

19

Poulan 532427942

NUTNYLOK.FLRANGE.5/16-18

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

21

Poulan 590044602

BRACKET NUT BLACK ZINC PLATE

$5.99

$

Usually ships in 3-10 days

0

22

Poulan 590699201

PULLEY IMPELLER DD 4L

$15.99

$

Usually ships in 3-10 days

0

23

Poulan 587587202

GUIDE.LOWER.AUGER.BELT.479

$10.99

$

Usually ships in 3-10 days

0

24

Poulan 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

25

Poulan 581592502

BRACKET.AUG.HOUSING.INTER.BLAC

$53.99

$

Usually ships in 3-10 days

0

26

Poulan 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 2 left!

0

27

Poulan 581338203

ARM IDLER DRIVE WELDMENT_HOT

$10.99

$

Usually ships in 3-10 days

0
