PR 300 (961920071-03) - Poulan Pro Snow Thrower (2016-04) CONTROL PANEL DISCHARGE CHUTE Parts Diagram

Snow Thrower

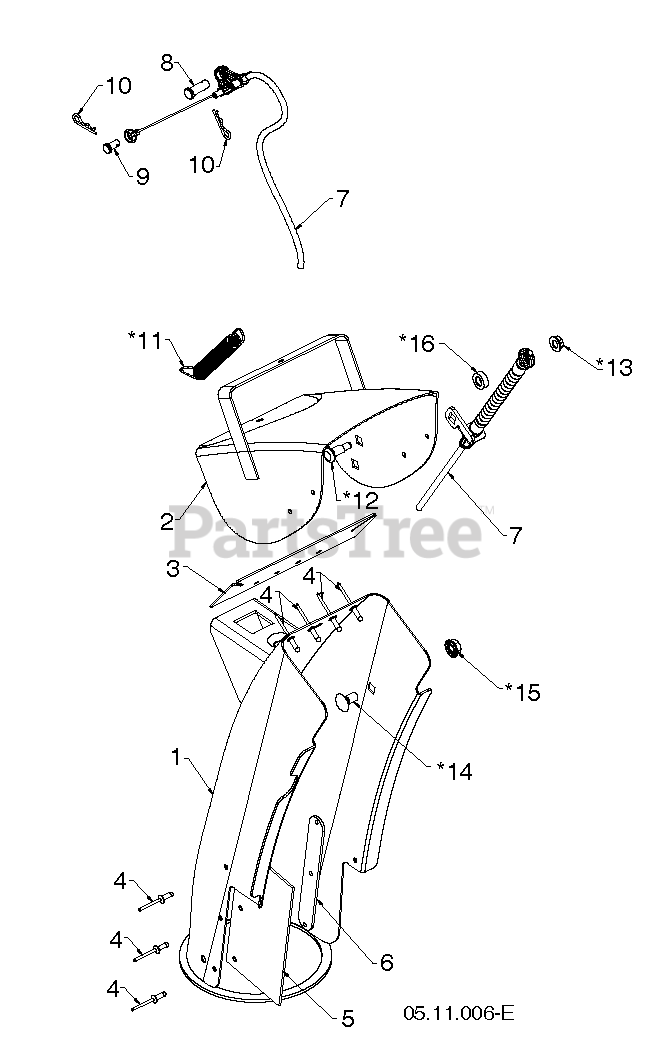

CONTROL PANEL DISCHARGE CHUTE Parts Diagram

  • Title

1

Poulan 588077803

DEFLECTOR, ASSY.

Note: . 1-6

$102.99

$

Usually ships in 3-10 days

0

2

Poulan 000000000

Note: DEFLECTOR

$

$

Not available

3

Poulan 000000000

Note: SEAL

$

$

Not available

4

Poulan 000000000

Note: POP RIVET

$

$

Not available

5

Poulan 000000000

Note: STRAP

$

$

Not available

6

Poulan 000000000

Note: SHIELD

$

$

Not available

7

Poulan 586961501

Deflector Chute Control Cable

$31.99

$

In Stock, only 2 left!

0

8

Poulan 581329401

Clevis Pin, 5/16 X .875

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 585808301

Clevis Pin, .25 X .31

$4.99

$

In Stock, only 2 left!

0

10

Poulan 532423303

(Superseded to 583404901)

$6.49

$

In Stock, only 1 left!

0

11

Poulan 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 8

0

12

Poulan 501417301

Shoulder Carriage Bolt

$5.99

$

In Stock, Qty 7

0

13

Poulan 585691401

Flange Hex Lock Nut, 1/4-20 Large

$4.99

$

In Stock, only 3 left!

0

14

Poulan 585832001

Carriage Bolt, 5/16-18 X 5/8 Black

$4.99

$

In Stock, only 1 left!

0

15

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 501417401

WASHER.NYLON.326 X.625 X.205

$4.99

$

In Stock, only 4 left!

0
