PR 28 PS (967089801) - Poulan Pro Pole Saw (2017-07) ENGINE Parts Diagram

Pole Saw

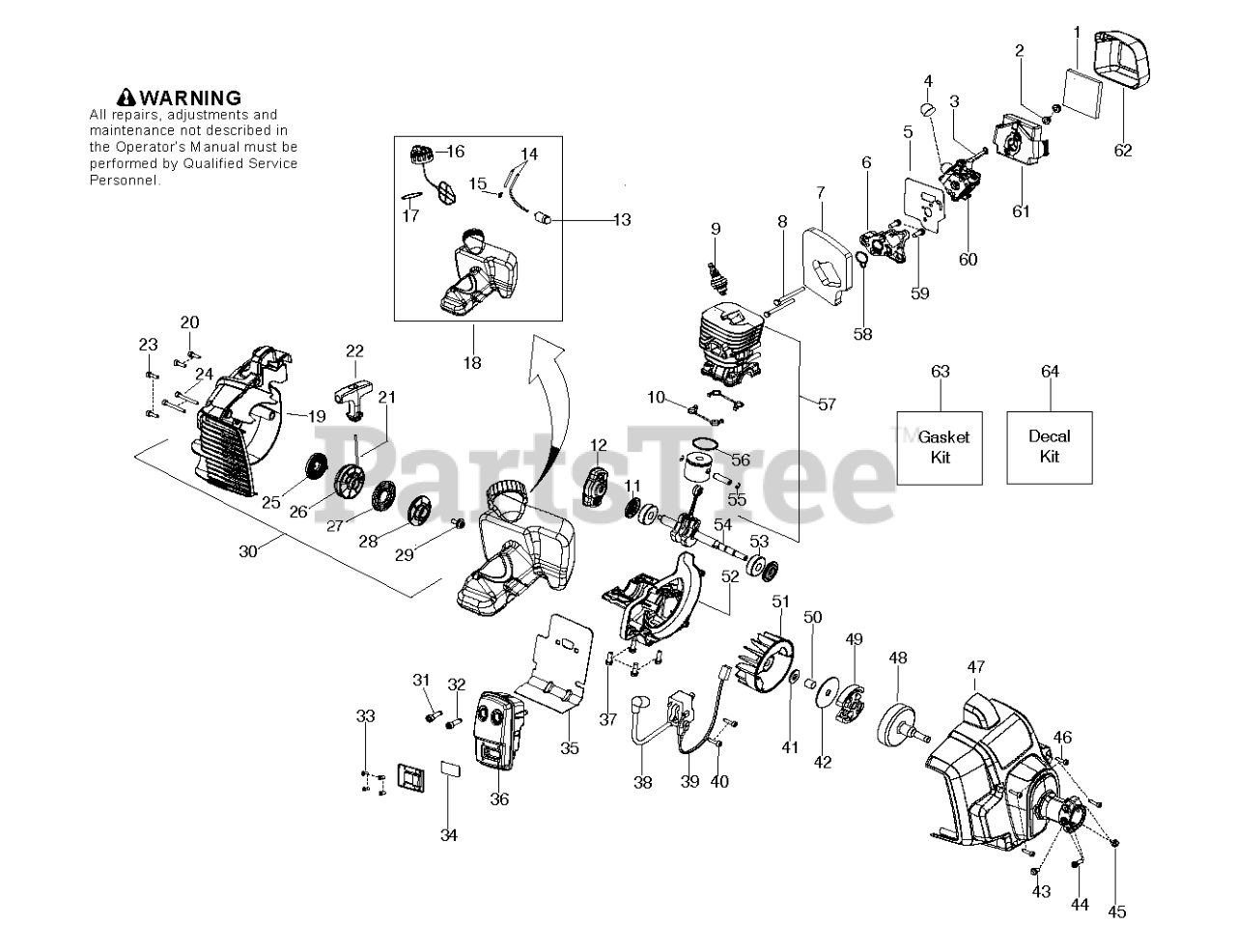

ENGINE Parts Diagram

  • Title

1

Poulan 581976201

FILTER FOAM

$5.99

$

Usually ships in 3-10 days

0

2

Poulan 530016101

Nut - Carb. Screw

$6.49

$

In Stock, only 2 left!

0

3

Poulan 585165801

LEVER CHOKE

$6.49

$

In Stock, Qty 5

0

4

Poulan 530058709

Bulb - Purge, Zama

$7.99

$

In Stock, Qty 11

0

5

Poulan 585345906

KIT GASKET CARB 28CC

Note: CARBURETOR GASKET

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530035596

CARB ADAPTOR

$12.99

$

In Stock, only 1 left!

0

7

Poulan 585345911

KIT GASKET 28CC

Note: GASKET KIT

$

$

Not available

8

Poulan 530016400

BOLT CARB ADAPTOR

$6.49

$

In Stock, only 1 left!

0

9

Poulan 952030201

Spark Plug, - Type 2-3 & Model GTI16D
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

10

Poulan 545083301

SEAL CYLINDER

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 585345911

KIT GASKET 28CC

Note: GASKET KIT

$

$

Not available

12

Poulan 503873305

STARTER PAWL BRIDGE

$26.99

$

Usually ships in 3-10 days

0

13

Poulan 577167201

ASSY FUEL PICKUP PRE FLUSHED

Note: FUEL FILTER

$7.99

$

Usually ships in 3-10 days

0

14

Poulan 530069599

Kit - Fuel line

$7.49

$

In Stock, Qty 9

0

15

Poulan 581411001

FUEL LINE FITTING DBL BARB

$

$

Not available

16

Poulan 578931002

ASSY FUEL CAP

$8.99

$

Usually ships in 3-10 days

0

17

Poulan 585345911

KIT GASKET 28CC

Note: GASKET KIT

$

$

Not available

18

Poulan 585345901

KIT FUEL TANK PP 28CC

Note: FUEL TANK

$

$

Not available

19

Poulan 585867401

HOUSING STARTER

$20.99

$

In Stock, only 1 left!

0

20

Poulan 545003511

SCREW

$4.99

$

In Stock, only 1 left!

0

21

Poulan 545008079

KIT ROPE

$10.99

$

Usually ships in 3-10 days

0

22

Poulan 545208401

Handle - Starter

$7.99

$

Usually ships in 3-10 days

0

23

Poulan 545003511

SCREW

$4.99

$

In Stock, only 1 left!

0

24

Poulan 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, only 2 left!

0

25

Poulan 545008087

KIT STARTER SPRING

$9.49

$

In Stock, only 1 left!

0

26

Poulan 579066801

STARTER PULLEY KIT
(Superseded to 585530301)

Note: STARTER PULLEY

$11.99

$

In Stock, only 1 left!

0

27

Poulan 578465101

DRIVER SPRING

$5.99

$

In Stock, only 2 left!

0

28

Poulan 579366201

PULLEY STARTER DRIVE

$6.99

$

In Stock, only 2 left!

0

29

Poulan 530016468

SCREW

$6.49

$

In Stock, Qty 7

0

30

Poulan 585345909

KIT HOUSING STARTER

$53.99

$

In Stock, only 1 left!

0

31

Poulan 530058982

Bolt - Muffler

$4.99

$

In Stock, Qty 8

0

32

Poulan 530058982

Bolt - Muffler

$4.99

$

In Stock, Qty 8

0

33

Poulan 530015241

Screw - #6 - 19 x 5/16" - Pan. Hd. - Reed Valve

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 545030501

KIT SPARK ARRESTOR SCREEN

$8.99

$

Usually ships in 3-10 days

0

35

Poulan 585345911

KIT GASKET 28CC

Note: GASKET KIT

$

$

Not available

36

Poulan 585345903

KIT MUFFLER W/CATALYST

$

$

Not available

37

Poulan 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

38

Poulan 545046701

IGNITION MODULE MBU-7

$56.99

$

In Stock, only 1 left!

0

39

Poulan 585696001

ASSY MOD LEADWIRE

$7.99

$

Usually ships in 3-10 days

0

40

Poulan 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

41

Poulan 530016463

Washer-Clutch Flat

$6.99

$

In Stock, only 3 left!

0

42

Poulan 530094189

Clutch Washer-Models HP22T, HP30SB

$6.99

$

In Stock, only 1 left!

0

43

Poulan 530015805

Screw - Alignment (10-14 x 1/2")
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

44

Poulan 530015774

Screw - Phil. Hd. - 5 x 25mm.- Throttle Control

$6.49

$

In Stock, only 1 left!

0

45

Poulan 530015768

Nut Type 1 Model XT125K,XT125KT

$6.49

$

In Stock, only 2 left!

0

46

Poulan 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

47

Poulan 583974803

ASSY FAN HSG BLK

$21.99

$

Usually ships in 3-10 days

0

48

Poulan 580446601

KIT DRUM CLUTCH ASSY

Note: CLUTCH DRUM

$28.99

$

Usually ships in 3-10 days

0

49

Poulan 585578701

ASSEMBLY CLUTCH

$6.49

$

In Stock, only 2 left!

0

50

Poulan 530057852

Spacer - Flywheel

$10.99

$

In Stock, only 2 left!

0

51

Poulan 530039242

FLYWHEEL

$44.99

$

In Stock, only 1 left!

0

52

Poulan 577929502

CRANKCASE CAST 128

$39.99

$

Usually ships in 3-10 days

0

53

Poulan 545013401

Bearing - Crankshaft

$10.99

$

Usually ships in 3-10 days

0

54

Poulan 585415402

CRANKSHAFT

$62.99

$

Usually ships in 3-10 days

0

55

Poulan 530015162

Retainer - Wrist Pin (PRO150 Only)

$6.49

$

In Stock, only 2 left!

0

56

Poulan 575227901

RING PISTON

$7.49

$

In Stock, Qty 5

0

57

Poulan 585345910

KIT PISTON AND CYLINDER
(Superseded to 545008082)

$45.99

$

In Stock, only 1 left!

0

58

Poulan 585345911

KIT GASKET 28CC

Note: GASKET KIT

$

$

Not available

59

Poulan 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0

60

Poulan 585345913

CARB FE

$53.99

$

Usually ships in 3-10 days

0

61

Poulan 581866401

HOUSING AIR FILTER BLACK

$3.99

$

In Stock, only 1 left!

0

62

Poulan 585165701

COVER FILTER HSG

$4.99

$

In Stock, only 1 left!

0

63

Poulan 585345911

KIT GASKET 28CC

Note: GASKET KIT

$

$

Not available

64

Poulan 582634302

DECAL

Note: DECAL KIT

$4.99

$

Usually ships in 3-10 days

0
