PR 271 (961920091-01) - Poulan Pro Snow Thrower (2016-04) ENGINE Parts Diagram

Snow Thrower

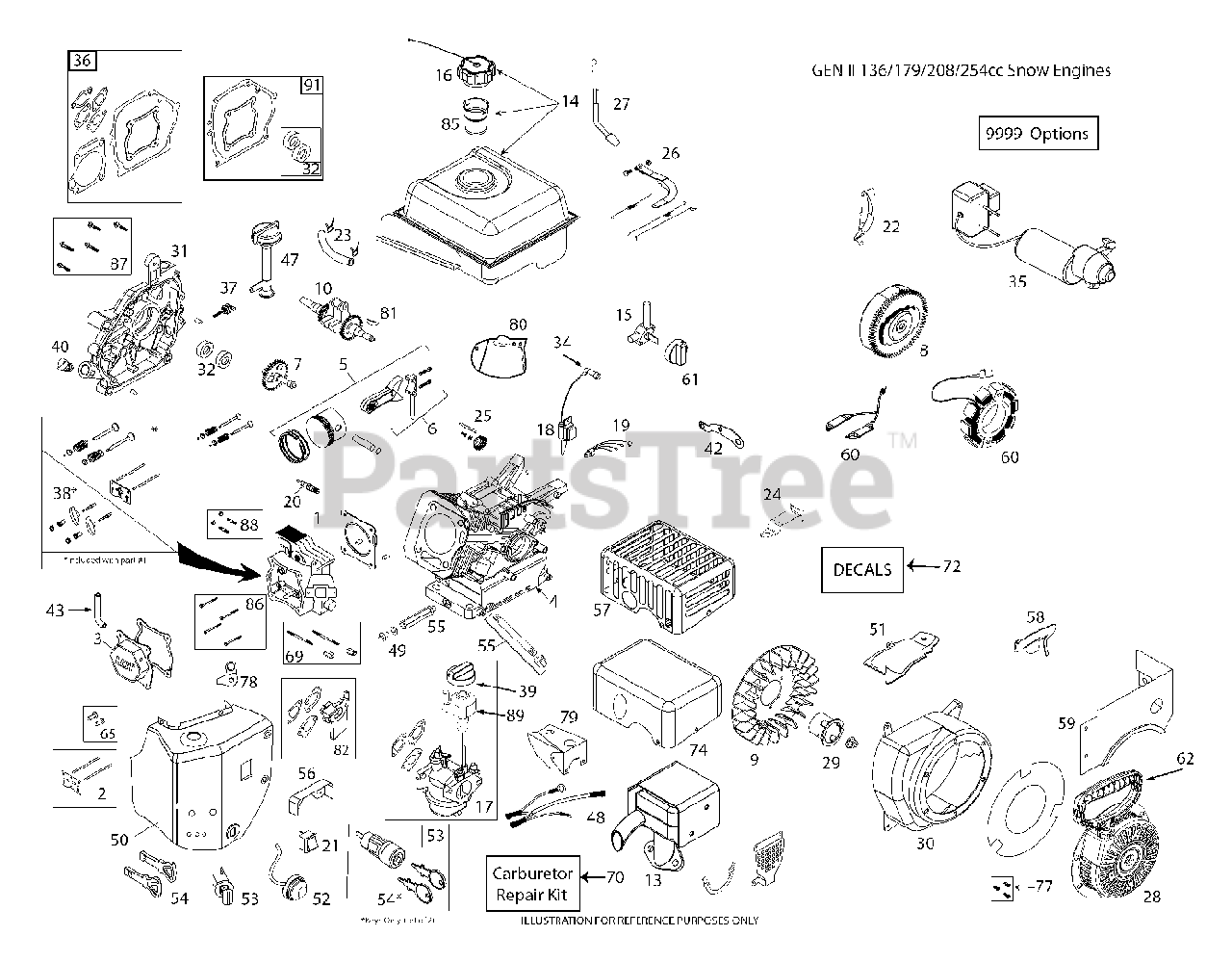

ENGINE Parts Diagram

  • Title

1

Poulan 585771401

CYLINDER.HEAD.ASM.W/GASKET.254

$136.99

$

Usually ships in 3-10 days

0

2

Poulan 585771501

KIT.PUSH.ROD.&.PLATE.W/VC.GASK

$15.99

$

Usually ships in 3-10 days

0

3

Poulan 585771601

COVER.VALVE.W/GASKET.254CC

$27.99

$

In Stock, only 1 left!

0

4

Poulan 000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

5

Poulan 585771701

PISTON.&.ROD ASSEM.254CC

$113.99

$

In Stock, only 1 left!

0

6

Poulan 000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

7

Poulan 585771801

CAMSHAFT.MCR.W/GASKET.254CC

$45.99

$

Usually ships in 3-10 days

0

8

Poulan 585771901

FLYWHEEL.ELEC.STRT.(8.MAGNETS)

$194.99

$

Usually ships in 3-10 days

0

9

Poulan 532420586

KIT.COOLNG.FAN.SERV(SK208-4000

$11.99

$

In Stock, only 1 left!

0

10

Poulan 585772001

CRANKSHAFT.KEYED(#18).SNOW.254

$182.99

$

Usually ships in 3-10 days

0

13

Poulan 582582901

MUFFLER ASSY LCT.GEN 2 SNOW

$79.99

$

Usually ships in 3-10 days

0

14

Poulan 585772201

FUEL.TANK.SNOW.2.7L.BLACK.254C

$169.99

$

Usually ships in 3-10 days

0

15

Poulan 532429234

FUEL.PETCOCK.SNOW(SKSN4900)

$18.99

$

Usually ships in 3-10 days

0

16

Poulan 532424942

FUEL CAP OVERSIZED CLICK STYLE

$17.99

$

Usually ships in 3-10 days

0

17

Poulan 585772301

CARBURETOR.SNOW.(L15).254CC

$79.99

$

Usually ships in 3-10 days

0

18

Poulan 532443894

COIL.ING.CDI.HI TEMP.SKSNO416.

$53.99

$

Usually ships in 3-10 days

0

19

Poulan 000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

20

Poulan 532443898

PLUG.SPARK.PLAT.SKSN2404.1

$44.99

$

In Stock, only 1 left!

0

21

Poulan 532424957

SWITCH.ON/OFF(SKSN-0403)

$45.99

$

In Stock, only 1 left!

0

22

Poulan 585772401

SHIELD.FLYWHEEL.ELEC.STRT.208C

$8.99

$

Usually ships in 3-10 days

0

23

Poulan 532432144

FUEL HOSE KIT
(Superseded to 532438014)

$12.99

$

Usually ships in 3-10 days

0

24

Poulan 585772501

BRACKET.SPEED.CNTRL.FIXED.254C

$11.99

$

Usually ships in 3-10 days

0

25

Poulan 532429646

GOVENOR.GEARS ASM(SK2082900)

$39.99

$

Usually ships in 3-10 days

0

26

Poulan 585772601

KIT.GOVERNOR.ARM.&.LINK.254CC

$20.99

$

In Stock, only 1 left!

0

27

Poulan 532420602

KIT.GOVERNOR.CRANK(SK208-3100)

$7.49

$

In Stock, only 3 left!

0

28

Poulan 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$53.99

$

Usually ships in 3-10 days

0

29

Poulan 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$34.99

$

Usually ships in 3-10 days

0

30

Poulan 581192001

BLOWER HOUSING ASSEMBLY

$31.99

$

Usually ships in 3-10 days

0

31

Poulan 585772701

CRANKCASE.CVR.PRESS.IN.HI-OIL.

$48.99

$

In Stock, only 1 left!

0

32

Poulan 585772801

KIT.SEAL.OIL.2.PIECES.254CC

$27.99

$

Usually ships in 3-10 days

0

34

Poulan 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$17.99

$

In Stock, only 1 left!

0

35

Poulan 532436466

ELEC.START.GEN2.SKSN0400.2

$460.99

$

Usually ships in 3-10 days

0

36

Poulan 585772901

KIT.ENGINE.GASKET.254CC

$48.99

$

In Stock, only 1 left!

0

37

Poulan 000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

38

Poulan 585773001

KIT.ROCKER.ARM.W/GASKET.254CC

$30.99

$

Usually ships in 3-10 days

0

39

Poulan 532429224

CHOKE.KNOW.SNOW(SKSN4500)

$9.49

$

In Stock, only 3 left!

0

40

Poulan 532429598

NON REMOVABLE PLUG

$13.99

$

Usually ships in 3-10 days

0

42

Poulan 000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

43

Poulan 580353401

TUBE.BREATHER.LCT.208

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 581007201

High Oil Fill Tube Assembly

$10.99

$

Usually ships in 3-10 days

0

48

Poulan 532429284

WIRE.HARNESS(SKSN4406)

$36.99

$

In Stock, only 1 left!

0

49

Poulan 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 3 left!

0

50

Poulan 585773101

KIT.HEATER.BOX.SNOW.254CC

$62.99

$

Usually ships in 3-10 days

0

51

Poulan 585773201

SHIELD.CYLINDER.COVER.254CC

$12.99

$

Usually ships in 3-10 days

0

52

Poulan 532424949

PRIMER.BULB.WITH HOSE (SNOW)

$13.99

$

Usually ships in 3-10 days

0

53

Poulan 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$28.99

$

In Stock, Qty 6

0

54

Poulan 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

Usually ships in 3-10 days

0

55

Poulan 532432686

EXTENDED OIL DRAIN TUBE

$42.99

$

In Stock, only 1 left!

0

56

Poulan 585773301

SHIELD.CARBURETOR.VAPOR

$6.49

$

Usually ships in 3-10 days

0

57

Poulan 000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

58

Poulan 585773401

SHIELD.GOVERNOR.LINKAGE.254CC

$8.99

$

Usually ships in 3-10 days

0

59

Poulan 587154501

FUEL TANK SKIRT SHIELD LCT 254

$24.99

$

In Stock, only 4 left!

0

60

Poulan 532443893

208CC 60W ALTERNATOR

$68.99

$

Usually ships in 3-10 days

0

61

Poulan 532432752

FUEL KNOB-SNOW

$12.99

$

In Stock, only 2 left!

0

62

Poulan 532443899

HANDLE.RECOIL.DELUXE.LCT

$17.99

$

Usually ships in 3-10 days

0

65

Poulan 581372801

TAPPET.KIT.LCT.208CC

$22.99

$

Usually ships in 3-10 days

0

69

Poulan 532424951

CARB.STUDS & COUPLING KIT.SNOW

$21.99

$

Usually ships in 3-10 days

0

70

Poulan 580353601

CARB.REPAIR.KIT.LCT.SK9900.1

$120.99

$

Usually ships in 3-10 days

0

72

Poulan 532435647

Decal Kit, Engine 208CC LCT SK1

$10.99

$

Usually ships in 3-10 days

0

74

Poulan 582552301

(Superseded to 581768801)

$48.99

$

In Stock, only 1 left!

0

77

Poulan 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, only 2 left!

0

78

Poulan 000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

79

Poulan 585773701

COVER.CARBURETOR.SNOW

$20.99

$

Usually ships in 3-10 days

0

80

Poulan 585773801

SHIELD.GOVERNOR.LINK.SNOW.254C

$8.99

$

Usually ships in 3-10 days

0

81

Poulan 585297201

KEYS.FLYWHEEL.208/414CC.5PACK

$26.99

$

In Stock, only 1 left!

0

82

Poulan 585020503

SPACER.CARBURETOR.208CC.LCT

$8.99

$

In Stock, only 2 left!

0

85

Poulan 586325601

Fuel Tank Strainer, LCT 208cc

$8.99

$

In Stock, only 1 left!

0

86

Poulan 586327301

KIT.BOLT.CYLINDER.HEAD.(4PC)

$14.99

$

Usually ships in 3-10 days

0

87

Poulan 586326901

KIT.BOLT.CRANKCASE.COVER.6PC

$10.99

$

In Stock, only 4 left!

0

88

Poulan 586326801

STUD.MUFFLER.KIT.LCT

$10.99

$

In Stock, only 4 left!

0

89

Poulan 000000000

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

91

Poulan 587994102

CRANKSHAFT GASKET KIT.LCT

$24.99

$

In Stock, only 1 left!

0

9999

Poulan 587154801

High Altitude Jet, LCT >5000 25

$7.49

$

Usually ships in 3-10 days

0

9999

Poulan 579806401

Bolt Kit, LCT

$3.99

$

Usually ships in 3-10 days

0
