PR 271 (961920091-01) - Poulan Pro Snow Thrower (2016-04) DRIVE Parts Diagram

Snow Thrower

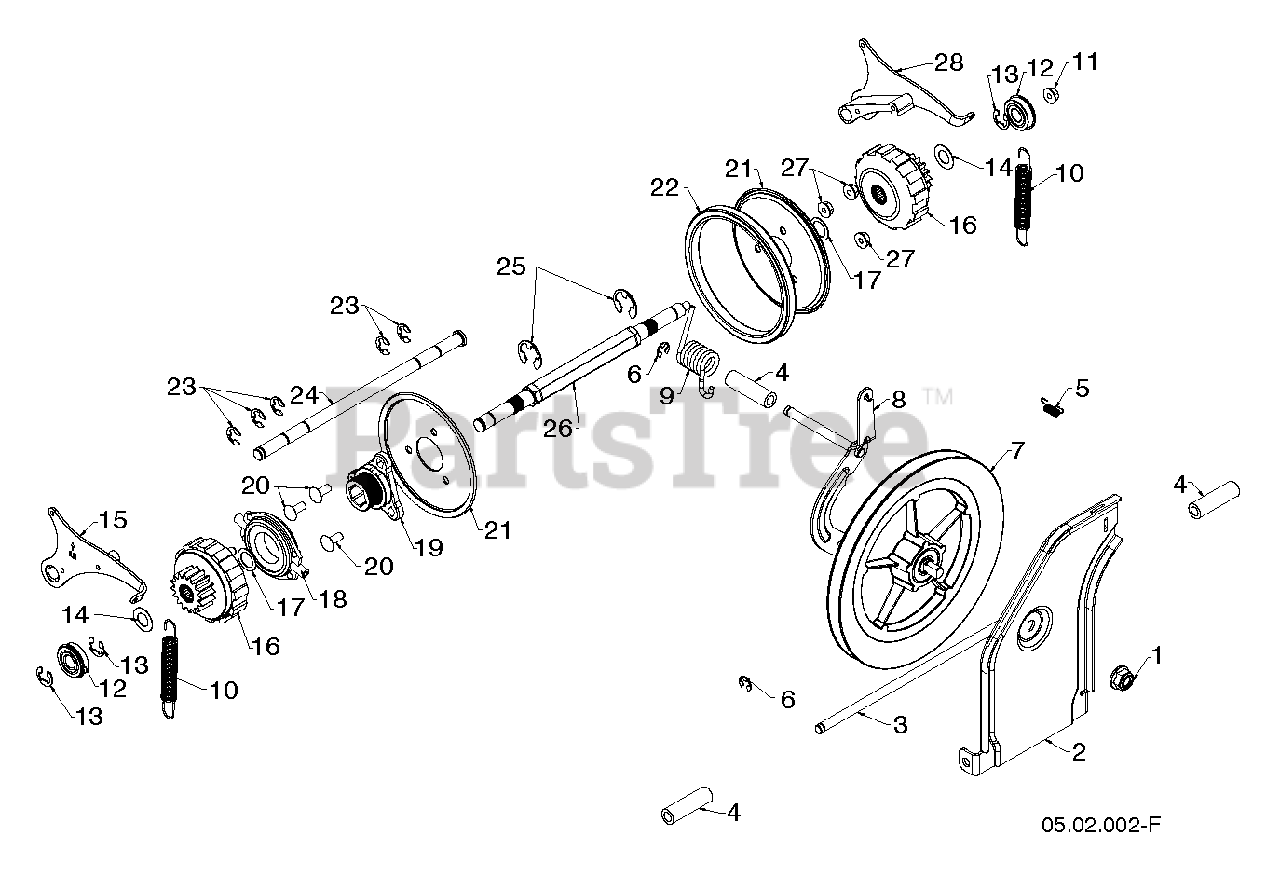

DRIVE Parts Diagram

  • Title
1

Poulan 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

2

Poulan 587703402

Plate, Swing Friction Pulley 47

$26.99

$

Usually ships in 3-10 days

0

3

Poulan 581123001

ROD.TIP.PLATE
(Superseded to 581123002)

$9.49

$

In Stock, only 1 left!

0

4

Poulan 581732701

SPACER YOKE, TORSION SPRING

$4.99

$

In Stock, only 2 left!

0

5

Poulan 532193885

SPRING LATCH

$6.49

$

In Stock, only 1 left!

0

6

Poulan 812000007

(Superseded to 583607201)

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 581328401

Friction Disc Combo Pulley

$37.99

$

Usually ships in 3-10 days

0

8

Poulan 587193403

(Superseded to 581454203)

$

$

Not available

9

Poulan 581315301

Drive Torsion Spring

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 585263801

PS Extension Spring

$5.99

$

In Stock, only 3 left!

0

11

Poulan 585691501

Flange Hex Lock Nut, 5/16-18

$4.99

$

In Stock, only 2 left!

0

12

Poulan 580756201

Bearing, 9/16" Id. Snr

$7.49

$

In Stock, Qty 7

0

13

Poulan 580756102

Retaining Ring

$4.99

$

In Stock, only 2 left!

0

14

Poulan 580751301

Flat Washer, .637Id X 1.00Od X 21Ga

$4.99

$

In Stock, only 3 left!

0

15

Poulan 580756601

PAWL.ASM.RH.SNOW

$21.99

$

Usually ships in 3-10 days

0

16

Poulan 580756001

Gear Assembly Planetary

$80.99

$

Usually ships in 3-10 days

0

17

Poulan 580756301

Flat Washer, .59Id X 1.065Od X 25Ga

$4.99

$

In Stock, only 1 left!

0

18

Poulan 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

19

Poulan 581090901

HUB.RUBBER.WHEEL
(Superseded to 588069201)

$37.99

$

In Stock, only 1 left!

0

20

Poulan 872110506

BOLT.5/16-18.

$7.49

$

In Stock, Qty 20+

0

21

Poulan 581091002

Wheel Plate, Rubber Black

$12.99

$

Usually ships in 3-10 days

0

22

Poulan 581091101

Ring, Rubber

$12.99

$

Usually ships in 3-10 days

0

23

Poulan 586644301

E-Ring Clip, .500 Shaft

$4.99

$

In Stock, only 1 left!

0

24

Poulan 580755101

ROD ROD, PAWL ROD

$10.99

$

Usually ships in 3-10 days

0

25

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 580752401

Power Str Shaft

$62.99

$

In Stock, only 1 left!

0

27

Poulan 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

28

Poulan 580756701

PAWL.ASM.LH.SNOW

$21.99

$

Usually ships in 3-10 days

0
