PR 271 (961920073-01) - Poulan Pro Snow Thrower (2014-05) AUGER HOUSING IMPELLER Parts Diagram

Snow Thrower

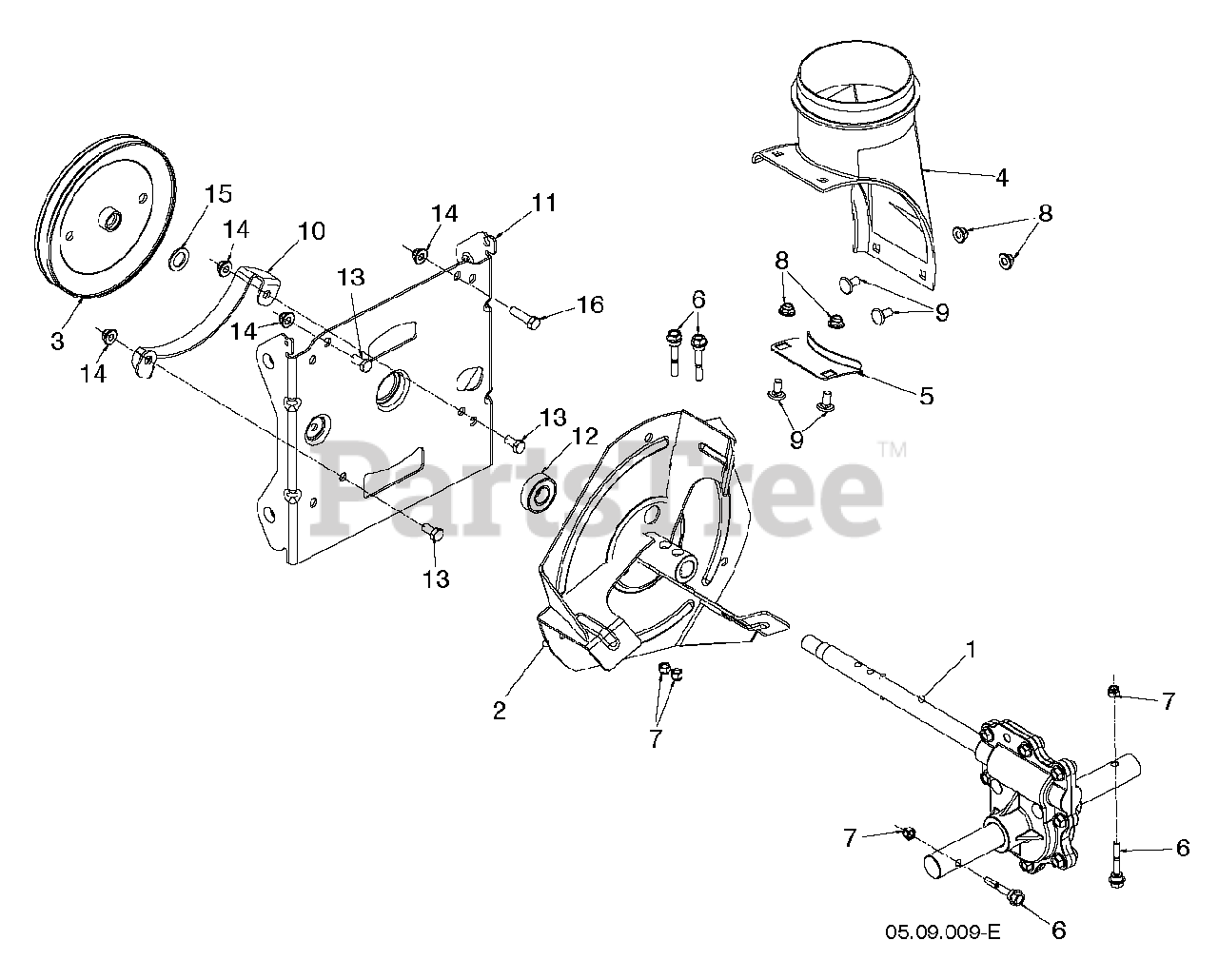

AUGER HOUSING IMPELLER Parts Diagram

  • Title

1

Poulan 586714801

Gear Box Assembly Alum
(Superseded to 597371501)

$242.99

$

Usually ships in 3-10 days

0

2

Poulan 586607202

Impeller, Steel Snow Black

$40.99

$

Usually ships in 3-10 days

0

3

Poulan 586715201

Screw-on Pulley, 7.3

$17.99

$

Usually ships in 3-10 days

0

4

Poulan 585056901

Discharge Chute Base

$11.99

$

In Stock, Qty 16

0

5

Poulan 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 532178675)

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 585511801

Hex Head Shear Bolt, 1/4-20 X 1-13/16
(Superseded to 588077501)

$5.99

$

In Stock, Qty 20+

0

7

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 585691301

Flange Hex Nut, Nylock Blk 5.16-1

$6.99

$

In Stock, Qty 7

0

9

Poulan 585691201

Carriage Wafer Bolt, 5/16-18

$7.49

$

In Stock, Qty 14

0

10

Poulan 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 2 left!

0

11

Poulan 581592502

Auger Housing Inter Bracket, Black

$53.99

$

Usually ships in 3-10 days

0

12

Poulan 532198791

Bearing

$18.99

$

In Stock, Qty 11

0

13

Poulan 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

14

Poulan 532427942

NUTNYLOK.FLRANGE.5/16-18

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 587392701

Impeller Pulley Washer

$3.49

$

In Stock, only 3 left!

0

16

Poulan 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0
