PR 25 BC (967105501) - Poulan Pro String Trimmer (2016-08) ENGINE Parts Diagram

String Trimmer

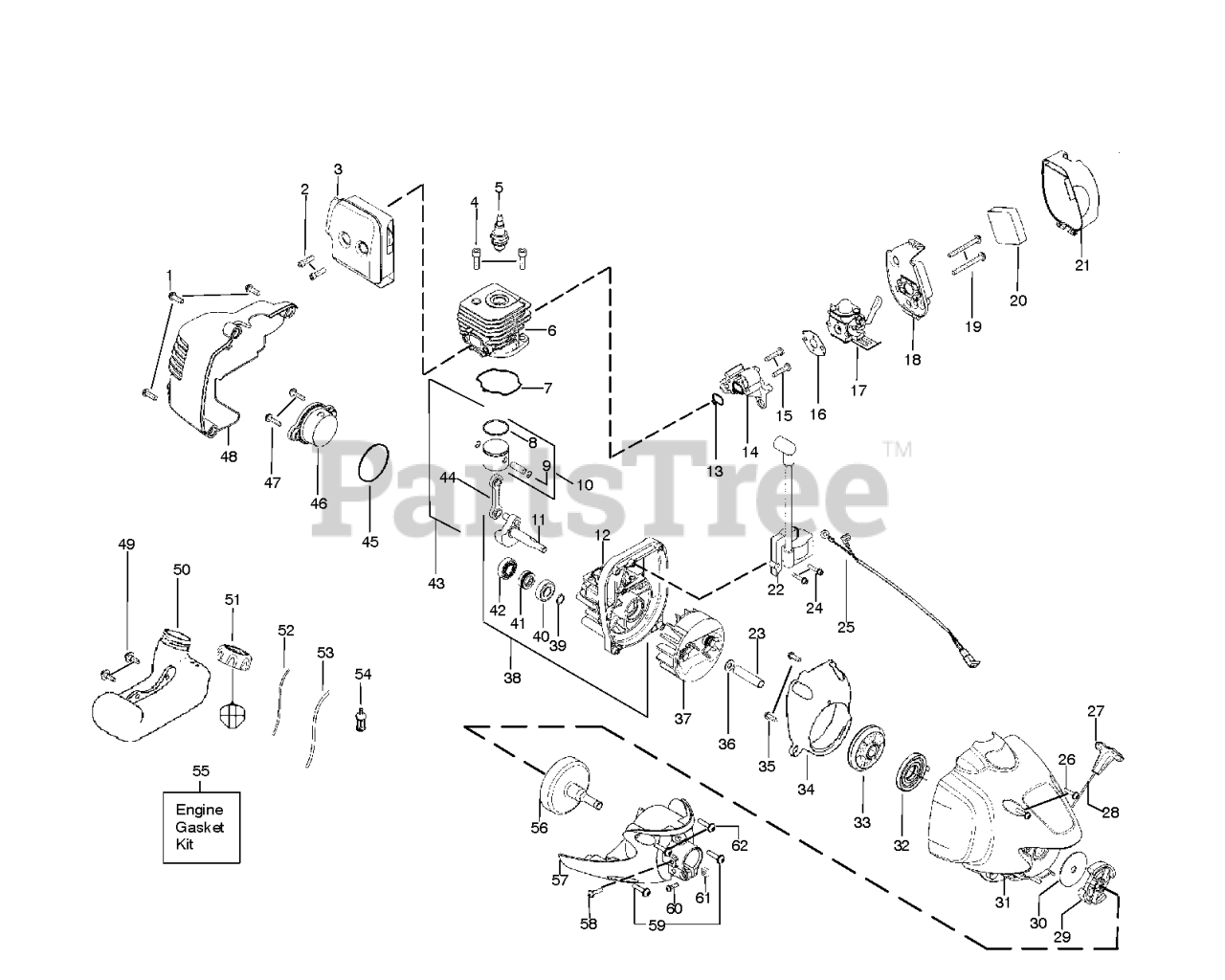

ENGINE Parts Diagram

  • Title

1

Poulan 530015880

Screw - Line Limiter

$4.99

$

In Stock, Qty 8

0

2

Poulan 530058982

Bolt - Muffler

$4.99

$

In Stock, Qty 7

0

3

Poulan 591429901

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Poulan 530015953

Screw - Cylinder

$6.49

$

In Stock, Qty 7

0

5

Poulan 503235111

BPMR7A NGK SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

6

Poulan 530012541

Cylinder - Machined (25cc)

$31.99

$

In Stock, only 1 left!

0

7

Poulan 530071750

Seal-Cyl/Carb. (kit)

$

$

Not available

8

Poulan 545154008

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Poulan 530015162

Retainer - Wrist Pin (PRO150 Only)

$6.49

$

In Stock, only 1 left!

0

10

Poulan 530071833

Kit - Piston

$37.99

$

Usually ships in 3-10 days

0

11

Poulan 545145802

ASSY CRANKSHAFT

$28.99

$

Usually ships in 3-10 days

0

12

Poulan 530012582

Assy - Crankcase

$37.99

$

Usually ships in 3-10 days

0

13

Poulan 530071750

Seal-Cyl/Carb. (kit)

$

$

Not available

14

Poulan 530057547

ADAPTOR CARBURETOR

$10.99

$

Usually ships in 3-10 days

0

15

Poulan 530016441

Screw .20 x 32

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530071750

Seal-Cyl/Carb. (kit)

$

$

Not available

17

Poulan 530071811

Kit-Carb. Zama (C1U-W18)

$50.99

$

In Stock, only 1 left!

0

18

Poulan 545077501

BASE AIR BOX PP GOLD

$9.49

$

In Stock, only 1 left!

0

19

Poulan 530016428

Screw

$4.99

$

In Stock, only 1 left!

0

21

Poulan 530057545

COVER AIR BOX FE

$6.99

$

In Stock, only 4 left!

0

22

Poulan 530039229

%MODULE IGNITION
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

23

Poulan 530059758

Spacer-Flywheel

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 530016357

Screw-Ignition Module

$6.49

$

In Stock, only 4 left!

0

25

Poulan 530047278

Assy-Lead Wire New Style (type 2)

$10.99

$

In Stock, only 1 left!

0

26

Poulan 530016386

Screw-Fan Housing/Shroud

$8.99

$

In Stock, only 1 left!

0

27

Poulan 530054834

HANDLE STARTER BLK

$4.99

$

In Stock, only 1 left!

0

28

Poulan 545050409

Kit - Rope

$7.49

$

In Stock, only 3 left!

0

29

Poulan 530055122

ASSEMBLY CLUTCH

$20.99

$

In Stock, Qty 5

0

30

Poulan 530094189

Clutch Washer-Models HP22T, HP30SB

$6.99

$

In Stock, only 1 left!

0

31

Poulan 576622101

ASSY FAN HSG BLACK

$37.99

$

Usually ships in 3-10 days

0

32

Poulan 545054901

SPRING STARTER SA
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

33

Poulan 545050407

Kit - Starter Pulley

$13.99

$

In Stock, only 3 left!

0

34

Poulan 545080601

BAFFLE FAN

$9.99

$

In Stock, only 1 left!

0

35

Poulan 530015880

Screw - Line Limiter

$4.99

$

In Stock, Qty 8

0

36

Poulan 530016463

Washer-Clutch Flat

$6.99

$

In Stock, only 3 left!

0

37

Poulan 577235901

ASSY FLYWHEEL

$14.99

$

In Stock, only 1 left!

0

38

Poulan 530071951

ASSY CRANKCASE & CRANKSHAFT
(Superseded to 545102101)

$22.35

$

Usually ships in 3-10 days

0

39

Poulan 530015941

Ring - Crankshaft Retainer

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530055728

Bearing - Outer

$9.99

$

Usually ships in 3-10 days

0

41

Poulan 530019264

Seal - Crankshaft

$7.49

$

In Stock, only 1 left!

0

42

Poulan 530032125

Bearing - Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

43

Poulan 530071785

Kit - Piston and Rod

$47.99

$

Usually ships in 3-10 days

0

44

Poulan 530069945

Kit-Connecting Rod Assy.
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

45

Poulan 530071750

Seal-Cyl/Carb. (kit)

$

$

Not available

46

Poulan 530057954

Assy-Plug (incl.45)

$5.99

$

In Stock, only 1 left!

0

47

Poulan 530016386

Screw-Fan Housing/Shroud

$8.99

$

In Stock, only 1 left!

0

48

Poulan 530057539

SHROUD REAR BLACK

$13.99

$

Usually ships in 3-10 days

0

49

Poulan 530016445

Screw - Fuel Tank Retainer

$6.49

$

Usually ships in 3-10 days

0

50

Poulan 581281902

ASSY FUEL TANK

Note: "FILTER, LINES & FUEL CAP"

$27.99

$

In Stock, only 1 left!

0

51

Poulan 578931604

FUEL CAP ASSY LOW PERMEATION

$8.99

$

In Stock, only 2 left!

0

52

Poulan 530069247

Line Kit(Bulk 8148) - Model 1400 G.TRIMMER-T2 1400T-T1

Note: SMALL

$7.99

$

In Stock, Qty 20+

0

53

Poulan 530069216

Kit-Line Purge/Tank (large line)

Note: FUEL LINE TANK/PURGE

$11.99

$

In Stock, Qty 20+

0

54

Poulan 577167201

ASSY FUEL PICKUP PRE FLUSHED

Note: FUEL FILTER

$7.99

$

Usually ships in 3-10 days

0

55

Poulan 530071750

Seal-Cyl/Carb. (kit)

$

$

Not available

56

Poulan 530150247

ASSY CLUTCH DRUM W/ADPT

$28.99

$

Usually ships in 3-10 days

0

57

Poulan 545077301

Assy-Clutch Cover

$20.99

$

Usually ships in 3-10 days

0

58

Poulan 530016319

Screw-Align

$5.99

$

In Stock, Qty 10

0

59

Poulan 530015772

SCREW-10-24 X 1" (TAP.)

$3.99

$

In Stock, only 2 left!

0

60

Poulan 530016381

SCREW 12-24 X 5/8

$3.49

$

Usually ships in 3-10 days

0

61

Poulan 530016382

NUT SQUARE 12-24

$6.99

$

Usually ships in 3-10 days

0

62

Poulan 530015814

Screw-Shroud/Blower Hsg.

$6.49

$

In Stock, Qty 16

0

Poulan 530058709

Bulb - Purge, Zama

Note: NOT SHOWN

$7.99

$

In Stock, only 1 left!

0
