PR 241 (961920092-03) - Poulan Pro Snow Thrower (2018-04) DRIVE Parts Diagram

Snow Thrower

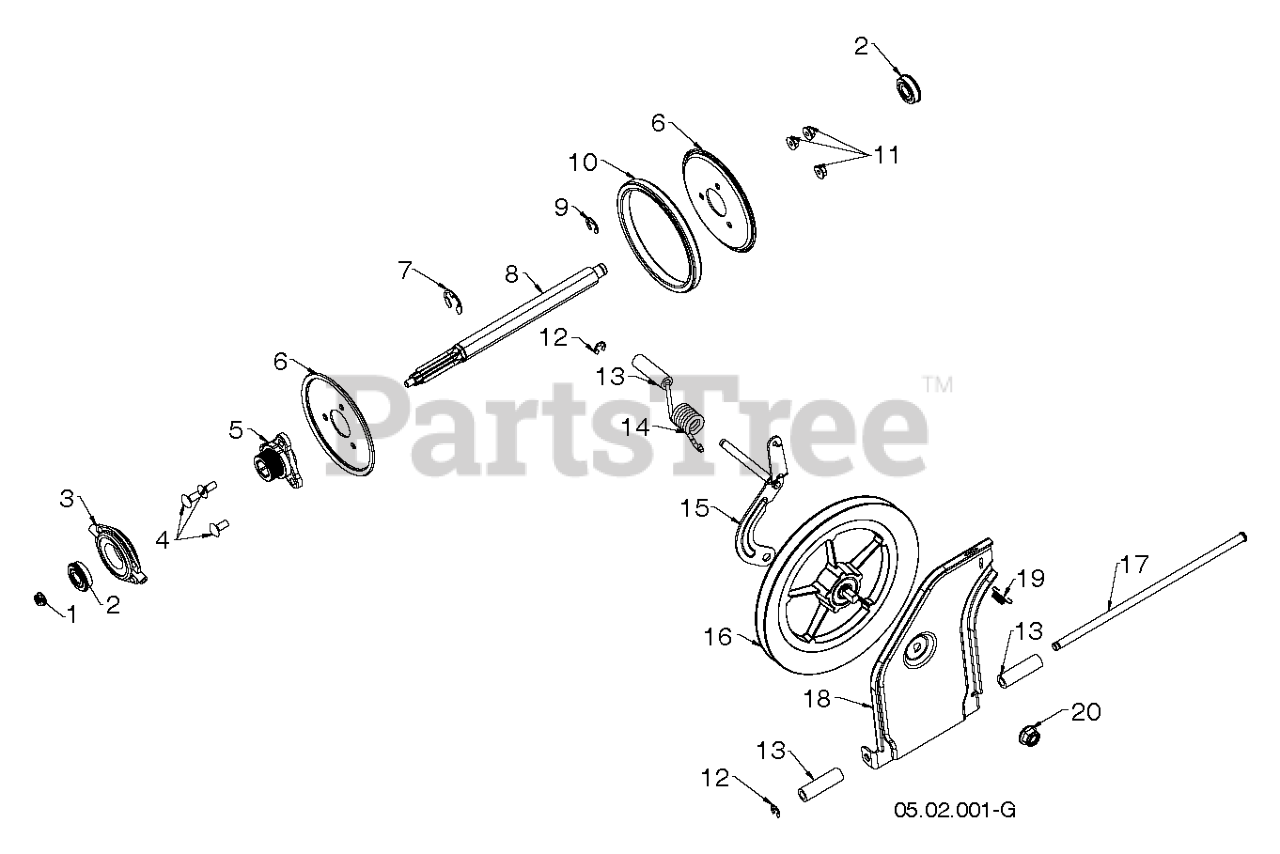

DRIVE Parts Diagram

  • Title

1

Poulan 585691501

NUT.HEX.FLANGE.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

2

Poulan 580756201

BEARING 9/16 ID. SNR

$7.49

$

In Stock, Qty 7

0

3

Poulan 532175344

TRUNNION BEARING ASSY

$27.99

$

Usually ships in 3-10 days

0

4

Poulan 872110506

Bolt, Carriage 5/16-18 UNC x 3/4 (AYP part number)

$7.49

$

In Stock, Qty 20+

0

5

Poulan 581090901

HUB.RUBBER.WHEEL
(Superseded to 588069201)

$37.99

$

In Stock, only 1 left!

0

6

Poulan 581091002

PLATE.RUBBER.WHEEL.BLACK

$12.99

$

Usually ships in 3-10 days

0

7

Poulan 812000022

E-Ring Truarc #5133-87 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 581121901

SHAFT SHAFT,7T REDUCTION

$62.99

$

Usually ships in 3-10 days

0

9

Poulan 580756101

RING RING, RETAINING RING (996
(Superseded to 580756102)

$4.99

$

In Stock, only 2 left!

0

10

Poulan 581091101

RING RUBBER

$12.99

$

Usually ships in 3-10 days

0

11

Poulan 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

12

Poulan 812000007

E-RING LT
(Superseded to 583607201)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 581732701

SPACER YOKE, TORSION SPRING

$4.99

$

In Stock, only 2 left!

0

14

Poulan 581315301

SPRING TORSION DRIVE

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 587193403

BRACKET.YOKE.ASSEMBLY.479
(Superseded to 581454203)

$

$

Not available

16

Poulan 581328401

PULLEY.FRICTION.DISC.COMBO

$37.99

$

Usually ships in 3-10 days

0

17

Poulan 581123001

ROD.TIP.PLATE
(Superseded to 581123002)

$9.49

$

In Stock, only 1 left!

0

18

Poulan 587703402

PLATE.SWING.FRICTION PULLEY.47

$26.99

$

Usually ships in 3-10 days

0

19

Poulan 532193885

SPRING LATCH

$6.49

$

In Stock, only 1 left!

0

20

Poulan 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0
