PR 241 (961920092-03) - Poulan Pro Snow Thrower (2018-04) CONTROL PANEL & DISCHARGE CHUTE 6 Parts Diagram

Snow Thrower

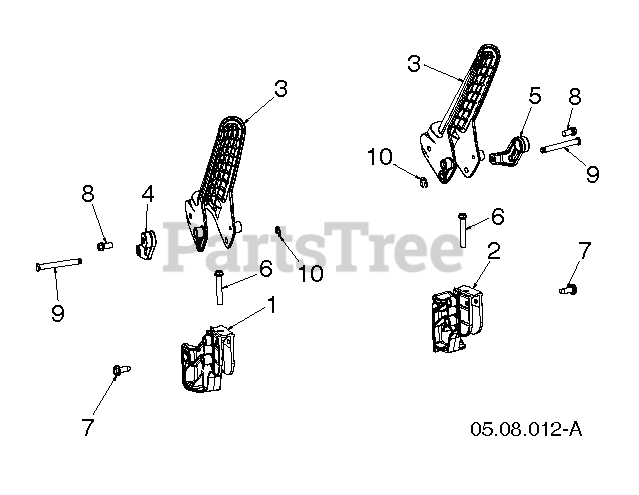

CONTROL PANEL & DISCHARGE CHUTE 6 Parts Diagram

  • Title
1

Poulan 587739601

HANDLE.LEVER.PIVOT.LHS.BLACK

$9.49

$

Usually ships in 3-10 days

0

2

Poulan 587739602

HANDLE.LEVER.PIVOT.RHS.BLACK

$14.99

$

Usually ships in 3-10 days

0

3

Poulan 587463001

LEVER CONTROL DSST OPP MPP

$13.99

$

In Stock, only 1 left!

0

4

Poulan 587739701

LEVER.CABLE.ARM.LHS.BLACK

$5.99

$

In Stock, only 1 left!

0

5

Poulan 587739702

LEVER.CABLE.ARM.RHS.BLACK

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 581329501

SCREW HEX_WASH_13-16 X 1.50_H

$5.99

$

In Stock, only 3 left!

0

7

Poulan 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 817411308

SCREW.HWH.13-16X.50

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 588147701

PIN.GROOVED

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 812000014

E-Ring (AYP part number)

$7.49

$

In Stock, only 1 left!

0
