PR 241 (961920092-03) - Poulan Pro Snow Thrower (2018-04) CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

Snow Thrower

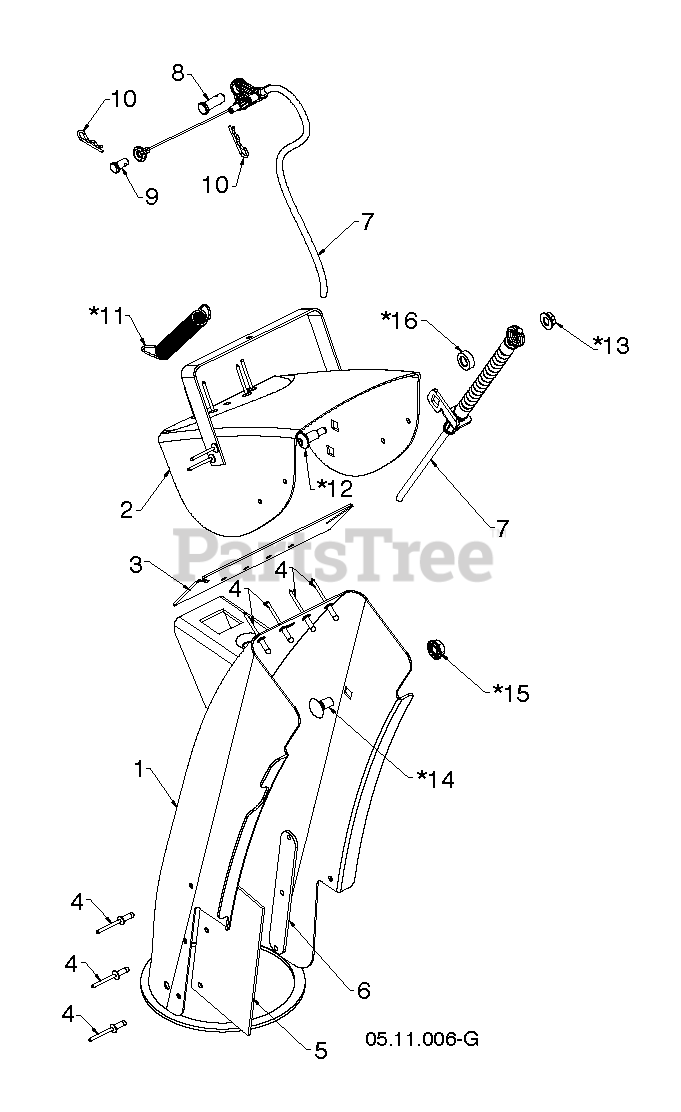

CONTROL PANEL & DISCHARGE CHUTE 5 Parts Diagram

  • Title

1

Poulan 588077803

ASM.CHUTE/DEFLECTOR.428

Note: INCLUDES KEY NUMBERS 1-6

$102.99

$

Usually ships in 3-10 days

0

2

Poulan 000000000

Note: DEFLECTOR

$

$

Not available

3

Poulan 000000000

Note: SEAL

$

$

Not available

4

Poulan 000000000

Note: POP RIVET

$

$

Not available

5

Poulan 000000000

Note: SHIELD

$

$

Not available

6

Poulan 000000000

Note: RETAINER

$

$

Not available

7

Poulan 590587001

CABLE.CONTROL.CHUTE.DEFLEC

$

$

Not available

8

Poulan 581329401

PIN CLEVIS 5/16X.875

$4.99

$

In Stock, only 2 left!

0

9

Poulan 585808301

PIN CLEVIS .25 X .31

$4.99

$

In Stock, Qty 5

0

10

Poulan 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$6.49

$

Usually ships in 3-10 days

0

*11

Poulan 532184505

SPRING.DEFLECTOR.REM.CHUTE

Note: INCLUDED IN BAG OF PARTS

$7.99

$

In Stock, Qty 11

0

*12

Poulan 501417301

BOLT.CARR.W.3125 SHLDR..25-20

Note: INCLUDED IN BAG OF PARTS

$5.99

$

In Stock, Qty 8

0

*13

Poulan 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, Qty 5

0

*14

Poulan 585832001

BOLT CAR BLK 5/16-18 X 5/8

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, only 1 left!

0

*15

Poulan 873970500

Locknut, Hex, Flange 5/16-18 (AYP part number)
(Superseded to 873800500)

Note: INCLUDED IN BAG OF PARTS

$3.99

$

In Stock, Qty 20+

0

*16

Poulan 501417401

WASHER.NYLON.326 X.625 X.205

Note: INCLUDED IN BAG OF PARTS

$4.99

$

In Stock, Qty 7

0
