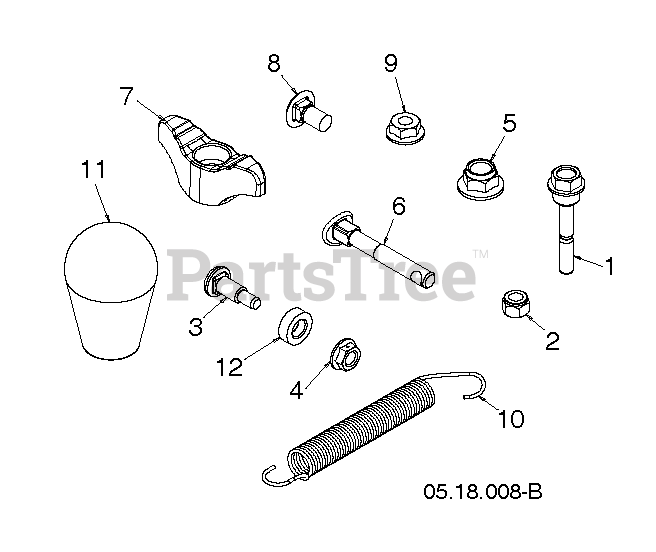

PR 241 (961920092-03) - Poulan Pro Snow Thrower (2018-04) ACCESSORIES 2 Parts Diagram

Snow Thrower

ACCESSORIES 2 Parts Diagram

  • Title
1

Poulan 588077501

BOLT.1/4-20 X 1-13/16 SHEAR
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

2

Poulan 873800400

Nut Lock, W/Insert 1/4 - 20 UNC (AYP part number)
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 501417301

BOLT.CARR.W.3125 SHLDR..25-20

$5.99

$

In Stock, Qty 7

0

4

Poulan 585691401

NUT.HEX.LRG.FLANGE.1/4-20.LOCK

$4.99

$

In Stock, only 3 left!

0

5

Poulan 588252901

NUT.HEX.FLANGE.INS.BLK.3/8-16

$4.99

$

In Stock, Qty 20+

0

6

Poulan 588059901

BOLT.CARRIAGE.5/16-18 X 2.25

$4.99

$

In Stock, only 2 left!

0

7

Poulan 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

8

Poulan 585832001

BOLT CAR BLK 5/16-18 X 5/8

$4.99

$

In Stock, only 1 left!

0

9

Poulan 873970500

Locknut, Hex, Flange 5/16-18 (AYP part number)
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

10

Poulan 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 7

0

11

Poulan 581697501

KNOB.SOFT.TOUCH.SLOTTED.428

$10.99

$

Usually ships in 3-10 days

0

12

Poulan 501417401

WASHER.NYLON.326 X.625 X.205

$4.99

$

In Stock, only 4 left!

0

Poulan 588077606

BAG.OF.PART.SHEAR.BOLT(2)REMLC

$

$

Not available
