PR 241 (961920092-00) - Poulan Pro Snow Thrower (2015-06) ACCESSORIES Parts Diagram

Snow Thrower

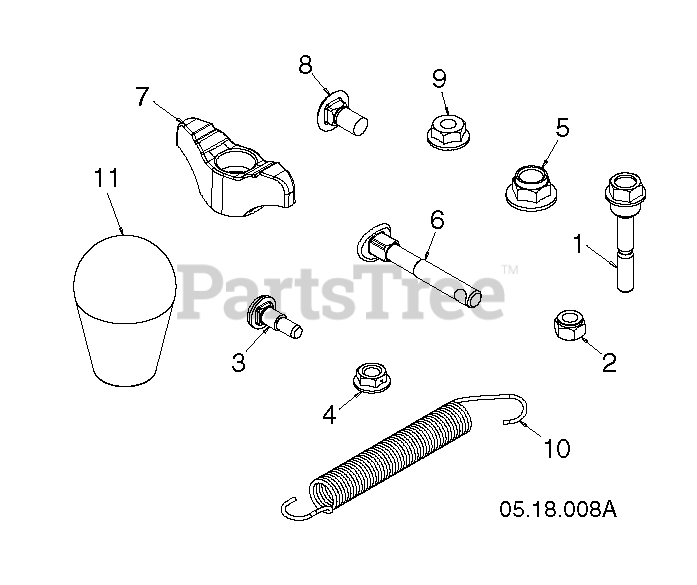

ACCESSORIES Parts Diagram

  • Title
1

Poulan 588077501

Hex Head Shear Bolt, 1/4-20 X 1-13/16
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

2

Poulan 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 585832201

Shoulder Bolt, 1/4

$3.49

$

In Stock, only 1 left!

0

4

Poulan 585691401

Flange Hex Lock Nut, 1/4-20 Large

$4.99

$

In Stock, only 3 left!

0

5

Poulan 588252901

Flange Hex Ins Nut, Black 3/8-16

$4.99

$

In Stock, Qty 20+

0

6

Poulan 588059901

Carriage Bolt, 5/16-18 X 2.25

$4.99

$

In Stock, only 2 left!

0

7

Poulan 532191938

(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

8

Poulan 585832001

Carriage Bolt, 5/16-18 X 5/8 Black

$4.99

$

In Stock, only 1 left!

0

9

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

10

Poulan 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, Qty 8

0

11

Poulan 581697501

KNOB.SOFT.TOUCH.SLOTTED.428

$10.99

$

Usually ships in 3-10 days

0

Poulan 588077606

BAG.OF.PART.SHEAR.BOLT(2)REMLC

$

$

Not available
