PR 20H46 STA - Electrolux/AYP Lawn Tractor CHASSIS/ENCLOSURES Parts Diagram

Lawn Tractor

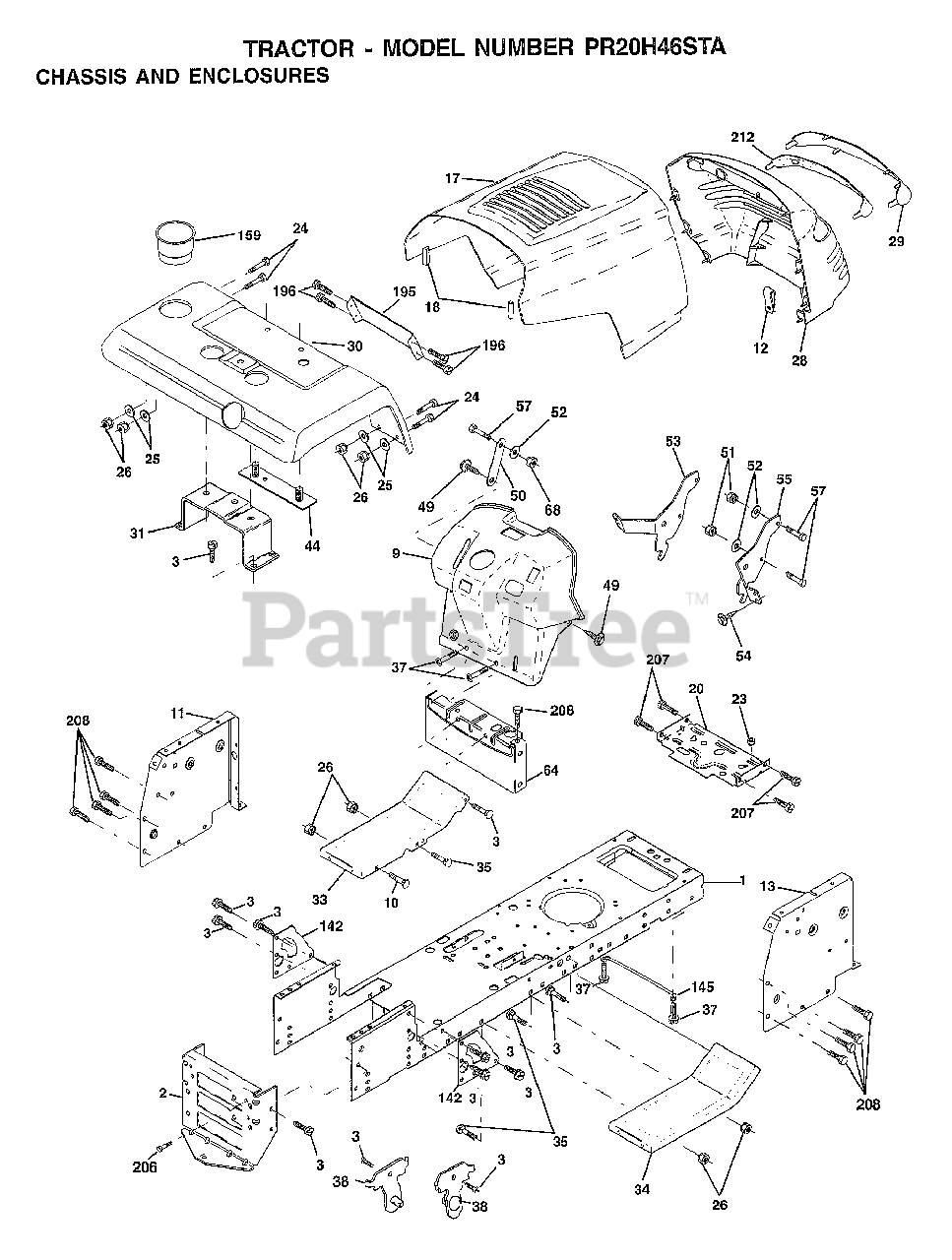

CHASSIS/ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 169830

CHASSIS
(Superseded to 532169830)

$

$

Not available

2

Electrolux/AYP 169061

DRAWBAR
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17060612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 170810

PANEL DASH
(Superseded to 583047901)

$6.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 145660

CLIP.TINNERMAN
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 172108

PANEL DASH
(Superseded to 532172108)

$

$

Not available

17

Electrolux/AYP 159639X428

"HOOD W/TRIM,MS428"
(Superseded to 532182408)

$80.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

20

Electrolux/AYP 156437

"PLATE-MTG,BATT/FU"
(Superseded to 180679)

$11.99

$

Usually ships in 3-10 days

0

23

Murray 124028X

SUB= 532124028

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 170474

GRILLE
(Superseded to 532179844)

$

$

Not available

29

Electrolux/AYP 170472X599

LENS
(Superseded to 532146654)

$

$

Not available

$88.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 137113

BRKT.ASM.FENDER
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 145244X428

FOOTREST PNT LH
(Superseded to 532182507)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 145243X428

FOOTREST.RH.LT/GT
(Superseded to 532182508)

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 169834

BRKT ASM PIVOT MOWER REAR
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 140675

STRAP ASM FENDER
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 142779

BRACE SUPT DASH
(Superseded to 532142779)

$

$

Not available

51

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144697

BRACKET.GRILLE.LH
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 161464

SCREW.HEX.WS.HD
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

BRACKET.GRILLE.RH
(Superseded to 532144696)

$

$

Not available

57

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

64

Electrolux/AYP 154798

DASH-LOWER
(Superseded to 532154798)

$20.99

$

Usually ships in 3-10 days

0

68

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

142

Electrolux/AYP 165867

PLATE.REINFORCEMENT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 163975X428

CUPHOLDER.YTGT
(Superseded to 583710501)

$12.99

$

Usually ships in 3-10 days

0

195

Electrolux/AYP 166822X428

PANEL PNT FENDER YT/GT

$34.99

$

Usually ships in 3-10 days

0

196

Electrolux/AYP 17580408

SCREW CRT
(Superseded to 817580408)

$

$

Not available

206

Electrolux/AYP 170165

BOLT SHOULDER
(Superseded to 532170165)

$4.99

$

In Stock, Qty 7

0

207

Electrolux/AYP 17670508

SCREW
(Superseded to 817670508)

$9.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 17670608

SCREW
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

212

Electrolux/AYP 156229

INSERT LENS REFLECT
(Superseded to 532174503)

$26.99

$

Usually ships in 3-10 days

0
