PR 18530 ES (961980049-04) - Poulan Pro Snow Thrower (2012-08) CHASSIS ENGINE PULLEYS Parts Diagram

Snow Thrower

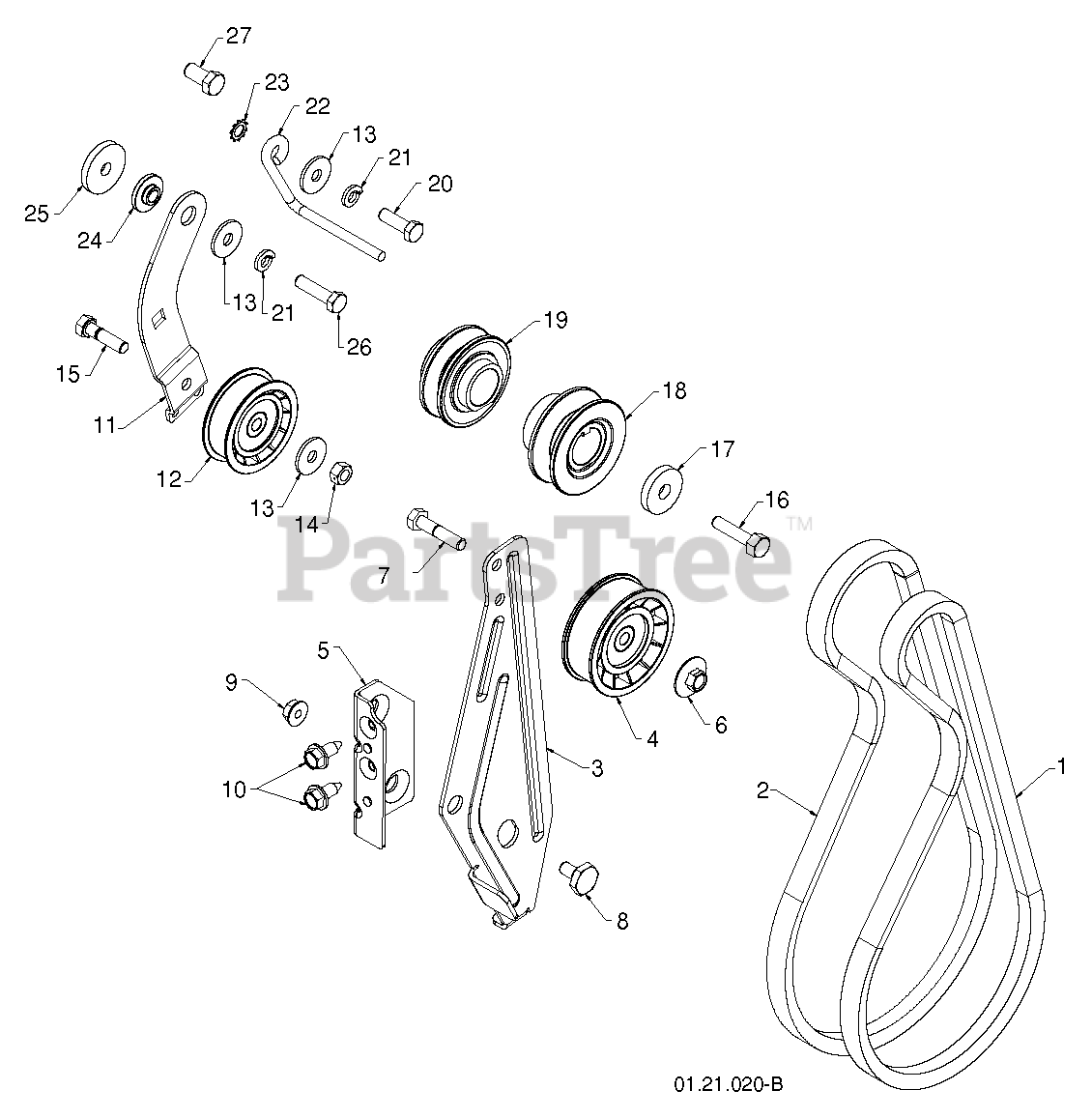

CHASSIS ENGINE PULLEYS Parts Diagram

  • Title
1

Poulan 532419888

V-BELT.IMPELLER

$60.99

$

Usually ships in 3-10 days

0

2

Poulan 532427304

TRACTION BELT

$34.99

$

Usually ships in 3-10 days

0

3

Poulan 532429271

RP ARM.IDLER.BRAKE.
(Superseded to 532423723)

$

$

Not available

4

Poulan 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

5

Poulan 532429270

RP BRACKET.IDLER.PIVOT
(Superseded to 532423990)

$6.49

$

Usually ships in 3-10 days

0

6

Poulan 532426589

NUT.FLANGE.HEX.5/16X18.BLACK

$6.49

$

In Stock, Qty 15

0

7

Poulan 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

8

Poulan 532424297

BOLT.SHOULDER.1/2X12

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

10

Poulan 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

11

Poulan 532427576

ARM.ASM.TRACTION.IDLER

$

$

Not available

12

Poulan 532180522

PULLEY.W/SPACER.2.25

$31.99

$

Usually ships in 3-10 days

0

13

Poulan 532059289

STEEL WASHER

$4.99

$

In Stock, only 2 left!

0

14

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

15

Poulan 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

17

Poulan 819132005

WASHER.400X1.25X5.

$6.99

$

Usually ships in 3-10 days

0

18

Poulan 532425934

PULLEY ENG IMPELLER

$34.99

$

In Stock, only 1 left!

0

19

Poulan 532425933

PULLEY.ASM.ENG.TRACTION.1.00

$

$

Not available

20

$4.99

$

In Stock, only 3 left!

0

21

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 532155452

Belt Guide, RH

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 811050500

(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

24

Poulan 532175331

BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

25

Poulan 819132005

WASHER.400X1.25X5.

$6.99

$

Usually ships in 3-10 days

0

26

Poulan 874610520

CAPSCREW.HEXHD.5/16X1.25.

$9.49

$

Usually ships in 3-10 days

0

27

Poulan 874760608

SCREW.3/8-16 X .750

$4.99

$

In Stock, only 1 left!

0
