PR 1842ST A - Poulan Pro Lawn Tractor (2002) Mower Lift Parts Diagram

Lawn Tractor

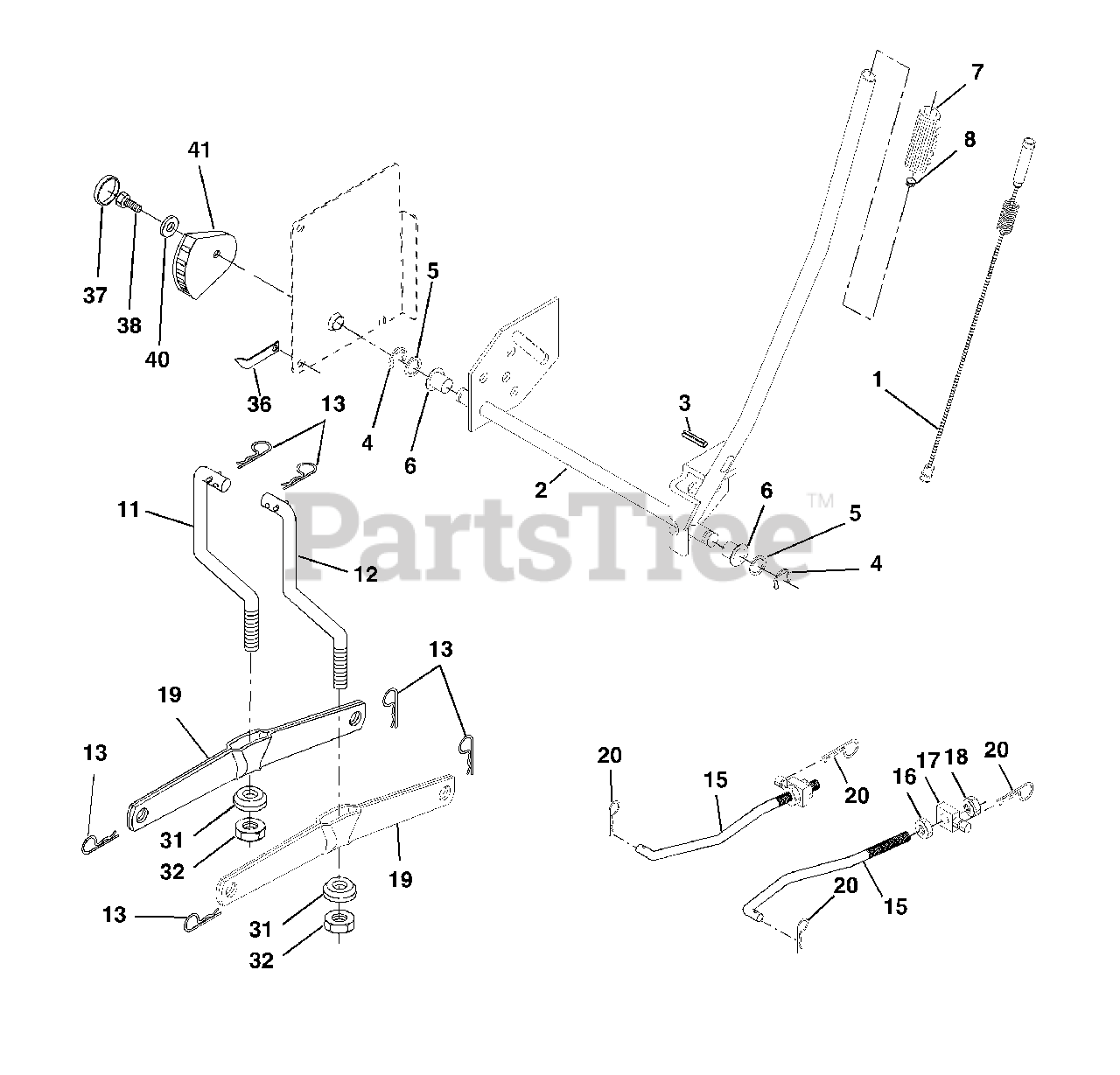

Mower Lift Parts Diagram

  • Title
1

Electrolux/AYP 159460

Wire Asm Inner/Sprg W/plunger LT
(Superseded to 532159460)

$26.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 159471

Shaft Asm Lift RH w/Inf
(Superseded to 532159471)

$54.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 105767X

Pin Groove 1 500 Zinc
(Superseded to 532105767)

$6.49

$

In Stock, only 3 left!

0

4

Electrolux/AYP 12000002

E Ring #5133-62

$

$

Not available

5

Electrolux/AYP 19211621

Washer 21/32 X 1 X 21 Ga
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

Bearing Nylon Blk 629 Id
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 125631X

Grip Handle
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 170770

Button Plunger Yellow
(Superseded to 583047801)

$

$

Not available

11

Electrolux/AYP 139865

Link Lift LH Fixed Length
(Superseded to 532151141)

$26.99

$

Usually ships in 3-10 days

0

12

Murray 139866

Link Lift RH Fixed Length
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Murray 4939M

Retainer Spring

$

$

Not available

15

Electrolux/AYP 173288

Link Front
(Superseded to 532173288)

$13.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 73350800

Nut Jam Hex 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 175689

Trunnion
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

Nut Lock w/Wsh 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

19

Electrolux/AYP 139868

Arm Suspension Rear
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 169865

Bearing Pvt Lift
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

Nut Crownlock 3/8 - 24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 155097

Pointer Height Indicator
(Superseded to 532155097)

$

$

Not available

37

Electrolux/AYP 123935X

Plug Hole Blk 1.485/1.515 Dia.
(Superseded to 532123935)

$5.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 17060516

Screw Thdrol 5/16-18 x 1
(Superseded to 817060516)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 19112410

Washer 11/32 x 1-1/2 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 155098

Indicator Height STLT
(Superseded to 532155098)

$6.49

$

Usually ships in 3-10 days

0
