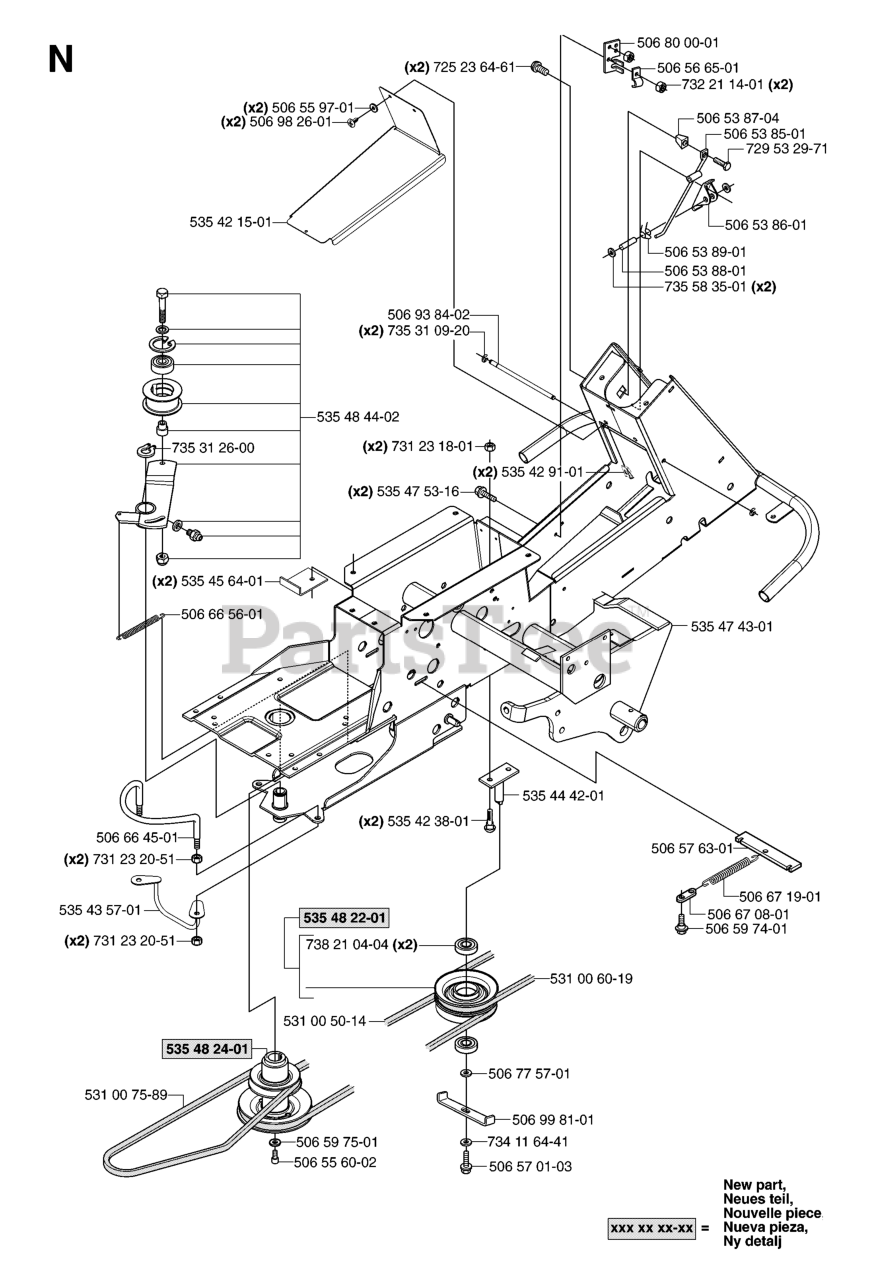

PR 18 (953521901) - Husqvarna Swedish Riding Mower (2007-03) CHASSIS / FRAME Parts Diagram

Swedish Riding Mower

CHASSIS / FRAME Parts Diagram

  • Title

51

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532124836

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

36

Husqvarna 532155099

BUSHING, STEERING
(Superseded to 532155106)

$10.99

$

In Stock, Qty 13

0

77

Husqvarna 873700600

NUT

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

6

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 819133808

WASHER T
(Superseded to 819133812)

$

$

Not available

1

Husqvarna 532124415

STEERING WHEEL

$

$

Not available

44

Husqvarna 532153720

EXT SHAFT STEERING
(Superseded to 532153721)

$

$

Not available

17

Husqvarna 532156546

SHAFT ASM STEERING
(Superseded to 531166901)

$49.99

$

In Stock, only 4 left!

0

18

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

13

Husqvarna 532154779

BEARING AXLE

$10.99

$

In Stock, only 1 left!

0

75

Husqvarna 532109851

JOINT.LH

$31.99

$

Usually ships in 3-10 days

0

22

Husqvarna 871200410

SCREW HEX SOCKET 1/4-20 X 5/8
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

78

Husqvarna 873360600

NUT

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532124416

INSERT,STR WHEEL

$

$

Not available

62

Husqvarna 532156594

KIT, STEERING ASSEMBLY
(Superseded to 584371701)

$136.99

$

In Stock, only 1 left!

0

27

Husqvarna 532136874

GEAR.SECTOR

$80.99

$

In Stock, only 1 left!

0

20

Husqvarna 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532154404

BEARING ARM

$6.49

$

In Stock, only 3 left!

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

3

Husqvarna 532157479

SPINDLE ASM LH

$

$

Not available

7

Husqvarna 819272016

WASHER

$6.49

$

In Stock, only 2 left!

0

32

Husqvarna 532137347

ROD ASSY/TIE BALL
(Superseded to 532186799)

$87.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532127501

SHAFT PITMAN
(Superseded to 532156365)

$

$

Not available

15

Husqvarna 873901000

NUT-LOC,FLANGE LT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532154406

BRACKET STEERING

$8.99

$

In Stock, only 1 left!

0

65

Husqvarna 532154780

SPACER AXLE

$9.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

40

Husqvarna 532124701

GRIPCO NUT
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

63

Husqvarna 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

43

Husqvarna 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532155092

BOOT, STEERING
(Superseded to 532145054)

$

$

Not available

54

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

68

Husqvarna 532154429

AXLE, BRACE

$21.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532137156

TIE ROD
(Superseded to 532186799)

$87.99

$

Usually ships in 3-10 days

0

29

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

74

Husqvarna 532109850

JOINT
(Superseded to 532121160)

$24.99

$

In Stock, only 1 left!

0

4

Husqvarna 532157478

SPINDLE ASM RH

$

$

Not available

10

Husqvarna 532154432

LINK.DRAG.DROPPED.LT

$93.99

$

Usually ships in 3-10 days

0

67

Husqvarna 874781044

Bolt, Hex 5/8 -11 x 2 - 3/4 Gr. 5

$

$

Not available

8

Husqvarna 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532137094

FRONT AXLE ASSY
(Superseded to 532178557)

$

$

Not available

531 00 75-89

Husqvarna 531007589

BELT
(Superseded to 580994701)

$28.99

$

In Stock, only 1 left!

0

731 23 20-51

Husqvarna 731232051

NUT
(Superseded to 731232001)

$6.49

$

In Stock, only 2 left!

0

506 56 65-01

Husqvarna 506566501

CLAMP

$3.49

$

Usually ships in 3-10 days

0

738 21 04-04

Husqvarna 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0

535 42 15-01

Husqvarna 535421501

NEEDS DESCRIPTION

$

$

Currently unavailable

506 55 60-02

Husqvarna 506556002

SCREW

$6.99

$

Usually ships in 3-10 days

0

506 98 26-01

Husqvarna 506982601

SCREW

$6.99

$

In Stock, Qty 6

0

506 66 56-01

Husqvarna 506665601

SPRING

$28.99

$

Usually ships in 3-10 days

0

725 23 64-61

Husqvarna 725236461

SCREW

$3.49

$

Usually ships in 3-10 days

0

732 21 14-01

Husqvarna 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

535 47 53-16

Husqvarna 535475316

SCREW

$

$

Not available

506 93 84-02

Husqvarna 506938402

NEEDS DESCRIPTION

$

$

Currently unavailable

594 97 80-01

Husqvarna 594978001

BELT

$84.99

$

In Stock, only 2 left!

0

506 66 45-01

Husqvarna 506664501

BELT GUIDE

$42.99

$

Usually ships in 3-10 days

0

735 31 26-00

Husqvarna 735312600

RETAINING RING SGA 25

$3.49

$

In Stock, only 1 left!

0

535 47 43-01

Husqvarna 535474301

NEEDS DESCRIPTION

$

$

Currently unavailable

535 48 24-01

Husqvarna 535482401

PULLEY

$79.99

$

Usually ships in 3-10 days

0

506 77 57-01

Husqvarna 506775701

WASHER

$5.99

$

In Stock, only 1 left!

0

506 53 85-01

Husqvarna 506538501

Arm

$

$

Not available

535 44 42-01

Husqvarna 535444201

NEEDS DESCRIPTION

$

$

Currently unavailable

735 31 09-20

Husqvarna 735310920

E-RING 5

$7.49

$

In Stock, Qty 8

0

506 80 00-01

Husqvarna 506800001

Bracket

$

$

Not available

531 00 50-14

Husqvarna 531005014

MAIN DECK BELT - 14 PRO/16
(Superseded to 589530501)

$

$

Not available

506 53 88-01

Husqvarna 506538801

Pin

$

$

Not available

535 45 64-01

Husqvarna 535456401

NEEDS DESCRIPTION

$

$

Currently unavailable

506 55 97-01

Husqvarna 506559701

WASHER

$5.99

$

In Stock, only 4 left!

0

506 57 01-03

Husqvarna 506570103

BOLT

$4.99

$

Usually ships in 3-10 days

0

506 57 63-01

Husqvarna 506576301

SPRING BRACKET

$

$

Not available

735 58 35-01

Husqvarna 735583501

CLIP

$14.99

$

Usually ships in 3-10 days

0

535 42 91-01

Husqvarna 535429101

NUT

$3.49

$

Usually ships in 3-10 days

0

506 59 75-01

Husqvarna 506597501

WASHER

$

$

Not available

506 53 89-01

Husqvarna 506538901

Spring

$

$

Not available

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

506 67 19-01

Husqvarna 506671901

SPRING

$40.99

$

In Stock, only 4 left!

0

506 67 08-01

Husqvarna 506670801

CONNECTOR

$7.99

$

Usually ships in 3-10 days

0

535 48 22-01

Husqvarna 535482201

PULLEY

$74.99

$

Usually ships in 3-10 days

0

729 53 29-71

Husqvarna 729532971

Screw

$

$

Not available

535 42 38-01

Husqvarna 535423801

BOLT

$5.99

$

Usually ships in 3-10 days

0

506 53 87-04

Husqvarna 506538704

KNOB, RED

$

$

Not available

506 53 86-01

Husqvarna 506538601

Bracket

$

$

Not available

506 99 81-01

Husqvarna 506998101

BELT GUIDE

$

$

Not available

535 43 57-01

Husqvarna 535435701

NEEDS DESCRIPTION

$

$

Currently unavailable

734 11 64-41

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

506 59 74-01

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

535 48 44-02

Husqvarna 535484402

TENSIONER

$68.99

$

Usually ships in 3-10 days

0
