PR 1742STF - Poulan Pro XT Lawn Tractor (2002-01) MOWER DECK / CUTTING DECK Parts Diagram

XT Lawn Tractor

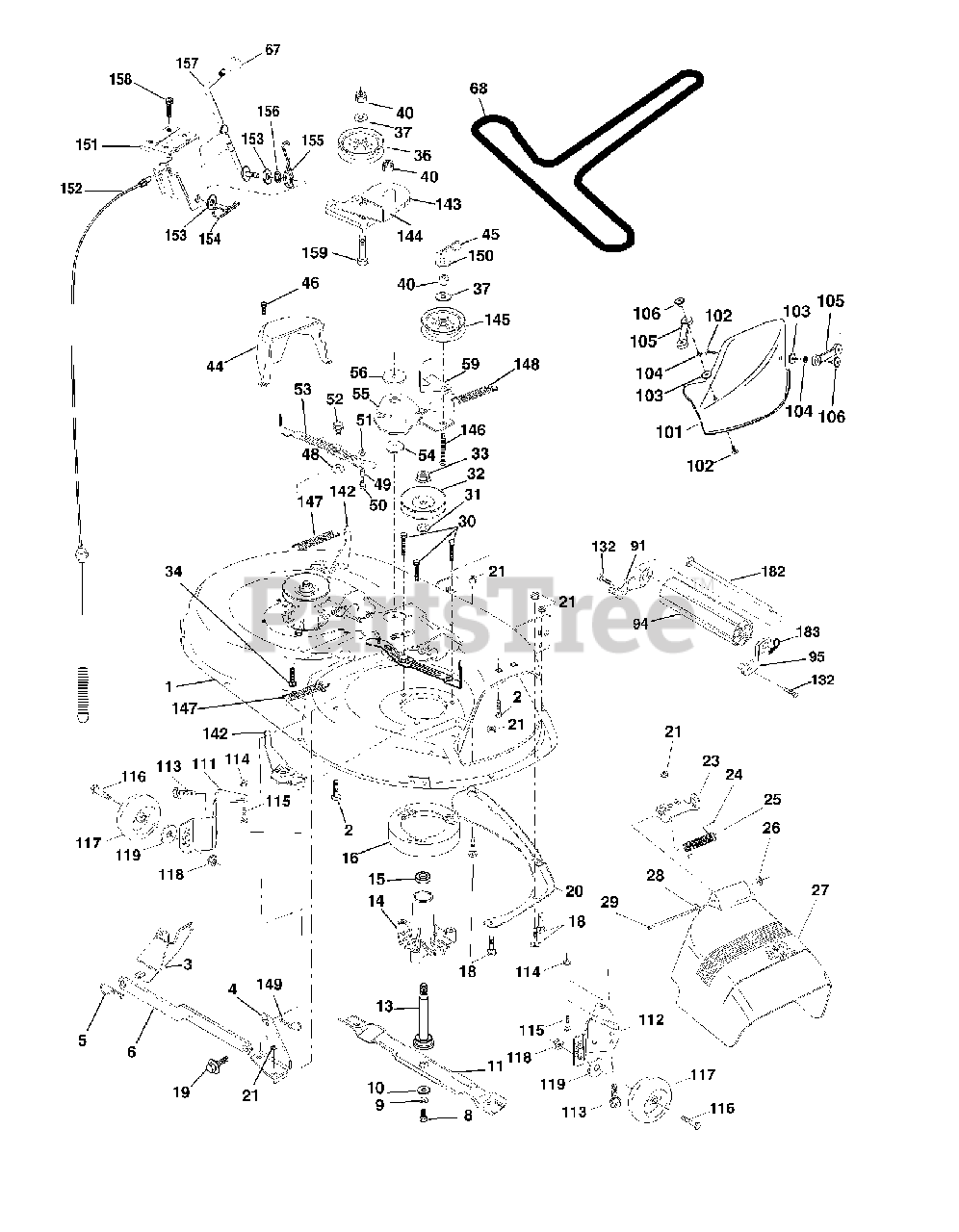

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Poulan 532437078

$

$

Not available

2

Poulan 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Poulan 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

4

Poulan 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

In Stock, only 1 left!

0

5

Poulan 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Poulan 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

8

Poulan 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

9

Poulan 810030600

(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

10

Poulan 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

11

Poulan 532134149

BLADE.42".MULCH

$

$

Not available

Poulan 532131323

BLADE 42" LOW-LIFT VENT DECK

$

$

Not available

13

Poulan 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Poulan 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

15

Poulan 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

16

Poulan 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 532066238

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Poulan 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Poulan 532159770

BAFFLE.VORTEX

$

$

Not available

21

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Poulan 532177563

BRKT, DEFL. MOWER

$

$

Not available

24

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Poulan 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

26

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Poulan 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Poulan 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Poulan 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Poulan 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Poulan 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

33

Poulan 532178342

Flange Lock Nut, 9/16-18 Thread Nyloc ZD
(Superseded to 532400234)

$4.99

$

In Stock, Qty 12

0

34

Poulan 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

36

Poulan 532173438

PULLEY.IDLER.FLAT
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Poulan 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

40

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

44

Poulan 532134236

MANDREL GUARD LH
(Superseded to 532140088)

$34.99

$

In Stock, Qty 10

0

45

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Poulan 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

48

Poulan 532133944

WASHER

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 532174284

ROLLER ASM CAM FOLLOWER

$10.99

$

In Stock, only 4 left!

0

50

Poulan 532131340

BOLT
(Superseded to 131340)

$

$

Not available

51

Poulan 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

52

Poulan 532105529

BOLT, SHOULDER LT
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

53

Poulan 532131845

(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Poulan 532133943

(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Poulan 532155046

ARM IDLER 42" MOWER LT/YT

$15.99

$

Usually ships in 3-10 days

0

56

Poulan 532122052

(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

59

Poulan 532173442

GUARD TUV IDLER
(Superseded to 532141043)

$

$

Not available

67

Poulan 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Poulan 532144959

BELT V SECONDARY

$43.99

$

In Stock, Qty 20+

0

91

Poulan 532180532

BRACKET ASM NOSEROLLER LH

$4.99

$

Usually ships in 3-10 days

0

94

Poulan 539132264

MANUAL, OPERATOR

$

$

Not available

95

Poulan 532180533

BRACKET ASM NOSEROLLER RH

$6.49

$

Usually ships in 3-10 days

0

101

Poulan 532136420

COVER MULCH 42"
(Superseded to 954040501)

$29.99

$

In Stock, only 2 left!

0

102

Poulan 871081010

SCREW

$6.49

$

Usually ships in 3-10 days

0

103

Poulan 819061216

WASHER

$4.99

$

Usually ships in 3-10 days

0

104

Poulan 532001863

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 11

0

105

Poulan 532160793

LATCH ASSY

$

$

Not available

106

Poulan 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

111

Poulan 532183074

$

$

Not available

112

Poulan 532183075

$

$

Not available

113

Poulan 817060510

SCREW.3/8-16X.625

$

$

Not available

114

Poulan 873310500

NUT

$3.99

$

Usually ships in 3-10 days

0

115

Poulan 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

116

Poulan 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Poulan 532165746

WHEEL.GAUGE.STANDARD

$

$

Not available

118

Poulan 532005394

LOCKNUT
(Superseded to 873930600)

$3.99

$

Usually ships in 3-10 days

0

119

Poulan 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

132

Poulan 817060612

(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

142

Poulan 532165890

ARM SPRING BRAKE MOWER

$

$

Not available

143

Poulan 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

144

Poulan 532173441

KEEPER BELT 42" CLUTCH

$9.99

$

In Stock, only 1 left!

0

145

Poulan 532173437

PULLEY.IDLER.FLAT.PLATED

$28.99

$

In Stock, only 3 left!

0

146

Poulan 532173443

BOLT CARRIAGE IDLER

$7.49

$

In Stock, Qty 6

0

147

Poulan 532131335

SPRING EXTENSION
(Superseded to 532179748)

$5.99

$

In Stock, Qty 7

0

148

Poulan 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 6

0

149

Poulan 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

150

Poulan 819091216

WASHER PM
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

151

Poulan 532169670

BRACKET.CLUTCH.CABLE

$

$

Not available

152

Poulan 532169676

Clutch Cable Kit
(Superseded to 532175067)

$45.99

$

In Stock, only 4 left!

0

153

Poulan 532169674

WASHER FLAT 3/8"
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Poulan 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

155

Poulan 532169671

SPRING RETENTION LEVER

$6.49

$

Usually ships in 3-10 days

0

156

Poulan 532169672

SPACER CLUTCH CABLE

$6.49

$

Usually ships in 3-10 days

0

157

Poulan 532169669

ROD CLUTCH CABLE 3/8"

$

$

Not available

158

Poulan 817240408

SCREW

$7.49

$

Usually ships in 3-10 days

0

159

Poulan 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

182

Poulan 532179126

ROD ROLLER NOSE STANDARD

$

$

Not available

183

Poulan 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

Poulan 532130794

MANDREL ASM, LH 5PT STAR

Note: (Includes Housing Shaft and Shaft Hardware Only-Pulley Not Included)

$56.99

$

In Stock, only 4 left!

0

Poulan 532172559

DECK COMP. 42"
(Superseded to 532169583)

$848.99

$

Usually ships in 3-10 days

0
