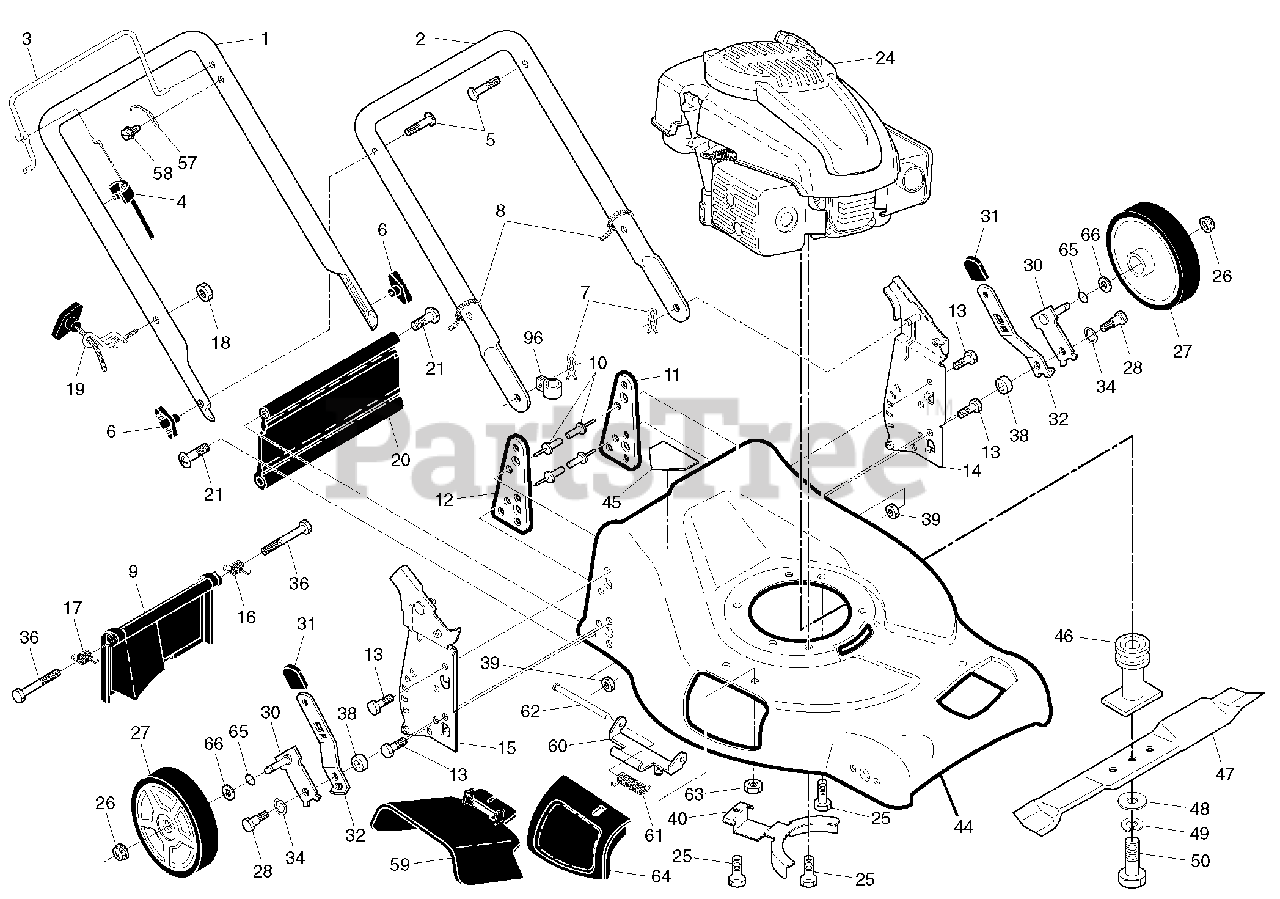

PR 173Y22RP (961420071-00) - Poulan Pro Walk-Behind Mower (2010-02) Frame Parts Diagram

Walk-Behind Mower

Frame Parts Diagram

  • Title
1

Electrolux/AYP 194200X479

Upper Handle
(Superseded to 532427738)

$30.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 151721X479

Lower Handle
(Superseded to 532175245)

$

$

Not available

3

Electrolux/AYP 194199X421

Control Bar
(Superseded to 532414806)

$21.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 183567

Engine Zone Control Cable
(Superseded to 532183567)

$17.99

$

In Stock, only 3 left!

0

5

Electrolux/AYP 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 189713X428

Handle Knob
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 401812X428

Rear Door Assembly
(Superseded to 532401812)

$34.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 406573X479

Support Bracket, LH
(Superseded to 532406573)

$7.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 406574X479

Support Bracket, RH
(Superseded to 532410542)

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 17060410

Screw 1/4-20 x 5/8
(Superseded to 817060410)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 175082X479

Handle Bracket Assembly, LH
(Superseded to 532434563)

$27.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 175081X479

Handle Bracket Assembly, RH
(Superseded to 532434562)

$

$

Not available

16

Electrolux/AYP 405417

Spring, Rear Door, LH
(Superseded to 532405417)

$9.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 405418

Spring, Rear Door, RH
(Superseded to 532405418)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 132004

Keps Locknut 1/4-20

$

$

Not available

19

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 413159

Rear Skirt
(Superseded to 532413159)

$17.99

$

In Stock, only 3 left!

0

21

Electrolux/AYP 88652

Hinge Screw 1/4-20 x 1-1/4
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

24

Engine, Kohler, Model Number XT173-0084-EA

Note: (For engine service and replacement parts, call Kohler at 1-800-544-2444)

$

$

Not available

25

Electrolux/AYP 150406

Screw, Hex Head, Thread Rolling 3/8-16 x 1-1/8
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 409149

Hex Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 400248X428

Wheel & Tire Assembly
(Superseded to 532435276)

$

$

Not available

28

Electrolux/AYP 401638

Shoulder Bolt 5/16-18 x .33
(Superseded to 596203801)

$4.99

$

In Stock, Qty 9

0

30

Electrolux/AYP 401178X004

Axle Arm Assembly, Rear
(Superseded to 583735501)

$7.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 701037X421

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

32

Electrolux/AYP 401623X004

Selector Spring
(Superseded to 532401623)

$4.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 401630

Washer, Curved, Cylindrical
(Superseded to 532401630)

$4.99

$

In Stock, only 2 left!

0

36

Electrolux/AYP 184193

Bolt
(Superseded to 532184193)

$

$

Not available

38

Electrolux/AYP 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

39

Electrolux/AYP 155377

Nut, Hex
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

40

$

$

Not available

44

Electrolux/AYP 430491

Kit, Lawn Mower Housing
(Superseded to 583459501)

Note: (Includes Key Numbers 10, 11, 12 and 45)

$188.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 421176

Blade Adapter / Pulley
(Superseded to 532421176)

$28.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 406712

Blade, 21"
(Superseded to 532406712)

$20.99

$

In Stock, Qty 5

0

48

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, Qty 7

0

49

Electrolux/AYP 850263

Helical Washer
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 850733X004

Upstop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

58

Electrolux/AYP 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

59

Electrolux/AYP 175071

Discharge Deflector
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 175735

Hinge Bracket
(Superseded to 532175735)

$

$

Not available

61

Electrolux/AYP 193000

Spring
(Superseded to 532193000)

$7.49

$

In Stock, only 4 left!

0

62

Electrolux/AYP 175650

Rod, Hinge
(Superseded to 532175650)

$7.49

$

In Stock, Qty 11

0

63

Electrolux/AYP 73800400

Nut, Hex
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 175066

Mulcher Door
(Superseded to 532175066)

$11.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 197480

O-Ring
(Superseded to 532197480)

$7.49

$

In Stock, only 1 left!

0

66

Electrolux/AYP 88348

Washer, Flat 1/2
(Superseded to 532088348)

$7.49

$

In Stock, Qty 5

0

96

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

96

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0
