PR 17 AWD (965192301) - Husqvarna Swedish Riding Mower (2009-04) 103CM CUTTING DECK Parts Diagram

Swedish Riding Mower

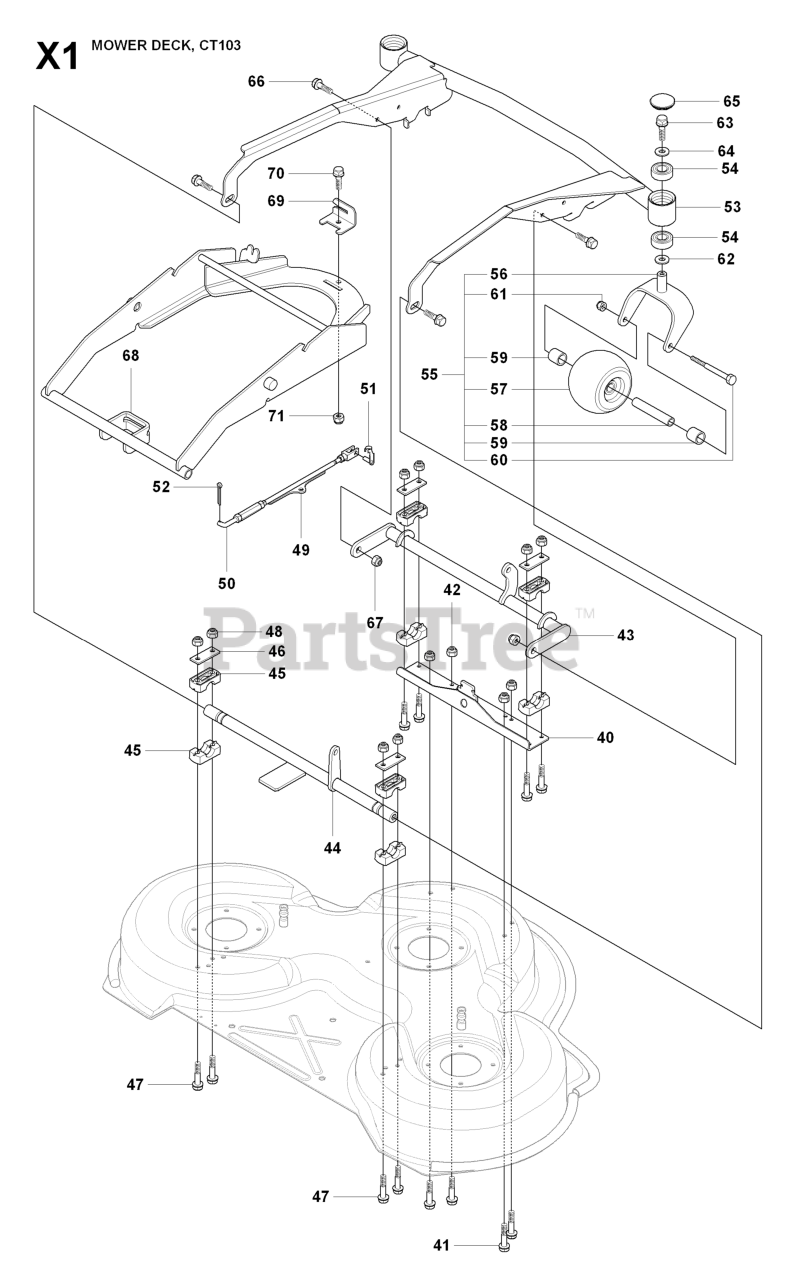

103CM CUTTING DECK Parts Diagram

  • Title

67

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

58

Husqvarna 506810802

PIPE

$9.49

$

In Stock, only 2 left!

0

50

Husqvarna 502642301

PARALLEL ROD

$

$

Not available

57

Husqvarna 506963001

DECK ROLLER, FRONT

$62.99

$

In Stock, Qty 14

0

63

Husqvarna 506570104

BOLT

$6.49

$

In Stock, only 1 left!

0

70

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

40

Husqvarna 502642102

NEEDS DESCRIPTION

$

$

Currently unavailable

44

Husqvarna 502641902

NEEDS DESCRIPTION

$

$

Currently unavailable

41

Husqvarna 725245171

SCREW

$1.49

$

In Stock, Qty 5

0

52

Husqvarna 721618301

Split Pin

$

$

Not available

43

Husqvarna 502641802

$

$

Currently unavailable

48

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

66

Husqvarna 506597401

BOLT

$6.99

$

In Stock, only 1 left!

0

54

Husqvarna 738210404

BALL BEARING 6004-2RS1

$103.99

$

In Stock, Qty 20+

0

56

Husqvarna 535504601

CLEVIS

$

$

Not available

51

Husqvarna 506839803

NEEDS DESCRIPTION

$

$

Currently unavailable

59

Husqvarna 506874102

SPACER

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 535505901

PIVOT WHEELS

$

$

Not available

42

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

64

Husqvarna 734116441

SPACER

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 502642002

NEEDS DESCRIPTION

$

$

Currently unavailable

62

Husqvarna 506504805

WASHER

$4.99

$

In Stock, Qty 5

0

47

Husqvarna 725246151

BOLT

$5.99

$

In Stock, only 1 left!

0

71

Husqvarna 732211801

LOCKNUT M8

$4.99

$

In Stock, Qty 12

0

46

Husqvarna 506813801

PLATE

$6.99

$

Usually ships in 3-10 days

0

60

Husqvarna 725251951

BOLT

$12.99

$

In Stock, only 1 left!

0

65

Husqvarna 544017001

HUB CAP PIVOT WHEEL

$

$

Not available

61

Husqvarna 732212051

NUT
(Superseded to 732212001)

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 502639501

NEEDS DESCRIPTION

$

$

Currently unavailable

45

Husqvarna 506869601

BEARING

$

$

Not available

49

Husqvarna 504812701

NEEDS DESCRIPTION

$

$

Currently unavailable

69

Husqvarna 502642401

NEEDS DESCRIPTION

$

$

Currently unavailable
