PR 160Y21RDP (961420045-00) - Poulan Pro Walk-Behind Mower (2008-01) Frame Parts Diagram

Walk-Behind Mower

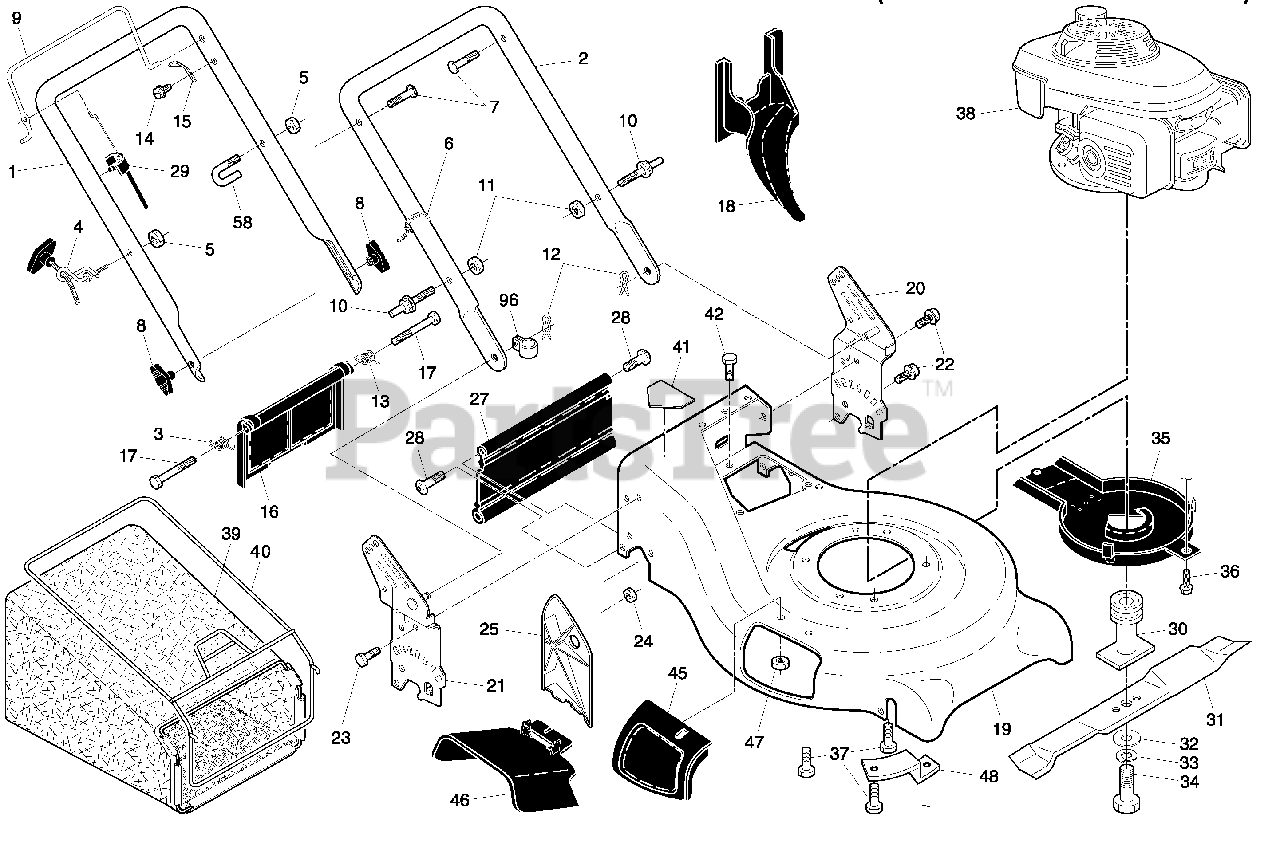

Frame Parts Diagram

  • Title

1

Electrolux/AYP 194577X479

Handle, Upper
(Superseded to 584379101)

$21.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 193664X479

Handle, Lower
(Superseded to 583716401)

$30.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 405416

Spring, Rear Door, RH
(Superseded to 532405416)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Electrolux/AYP 132004

Nut, Hex, with Lockwasher Insert 1/4-20

$

$

Not available

6

Electrolux/AYP 66426

Wire, Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 191574

Bolt, Handle 5/16-18 x 2-5/8
(Superseded to 532191574)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 189713X428

Knob, Handle
(Superseded to 532185577)

$9.49

$

In Stock, Qty 18

0

9

Electrolux/AYP 194580X421

Control Bar
(Superseded to 583721301)

$

$

Not available

10

Electrolux/AYP 188821

Pin, Handle Adjustment
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 751153

Nut, Hex
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

12

Electrolux/AYP 51793

Cotter, Hairpin
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 405415

Spring, Rear Door, LH
(Superseded to 532405415)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

15

Electrolux/AYP 850733X004

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 401815X428

Rear Door Assembly
(Superseded to 532401815)

$18.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

18

Electrolux/AYP 198170

Plug, Mulcher
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 413292

Kit, Housing

$99.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 193917X479

Handle Bracket Asembly, LH
(Superseded to 532193917)

$

$

Not available

21

Electrolux/AYP 193916X479

Handle Bracket Assembly, RH

$

$

Not available

22

Electrolux/AYP 150078

Screw, Hex Washer Head
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

23

Electrolux/AYP 163183

Bolt, Hex Head 5/16-18 x 5/8
(Superseded to 532163183)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 73800500

Nut, Hex, with Lockwasher Insert 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 161333

Baffle, Side
(Superseded to 532161333)

$11.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 163409

Screw, Hi-Lo Thread #12 x 5/8
(Superseded to 532163409)

$7.49

$

In Stock, Qty 6

0

27

Electrolux/AYP 408442

Skirt, Rear
(Superseded to 532408442)

$10.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 88652

Screw, Hinge 1/4-20 x 1.25
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 191221

Cable, Operator Presence
(Superseded to 532191221)

$22.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 189179

Blade Adapter / Pulley
(Superseded to 532421176)

$28.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 406712

Blade, 21"
(Superseded to 532406712)

$20.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 851074

Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 850263

Washer, Lock
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 851084

Bolt, Hex Head
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

35

Electrolux/AYP 405843

Debris Shield
(Superseded to 585472601)

$31.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 192325

Bolt
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 150406

Bolt, Engine
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

38

Engine, Honda, Model Number GCV160-LAS3A (For engine service and replacement parts, call Honda Engines at 1-800-426-7701)

$

$

Not available

39

Electrolux/AYP 411061

Grassbag
(Superseded to 532410668)

$

$

Not available

40

Electrolux/AYP 411951

Frame, Grassbag
(Superseded to 532411951)

$

$

Not available

41

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 54583

Screw
(Superseded to 532054583)

$

$

Not available

45

Electrolux/AYP 183058X428

Mulcher Door
(Superseded to 583702501)

$

$

Not available

46

Electrolux/AYP 169699X428

Discharge Guard
(Superseded to 583690501)

$

$

Not available

47

Electrolux/AYP 88349

Nut, Hex
(Superseded to 532088349)

$7.49

$

In Stock, only 1 left!

0

48

Electrolux/AYP 188839X004

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 182003

Clip, Packaging
(Superseded to 532182003)

$6.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

96

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 193733

Operator's Manual, English
(Superseded to 917193733)

$

$

Not available

96

Electrolux/AYP 193736

Operator's Manual, French

$

$

Not available
