PR 160 Y22RB (961480041-01) - Poulan Pro Walk-Behind Mower (2014-02) DRIVE Parts Diagram

Walk-Behind Mower

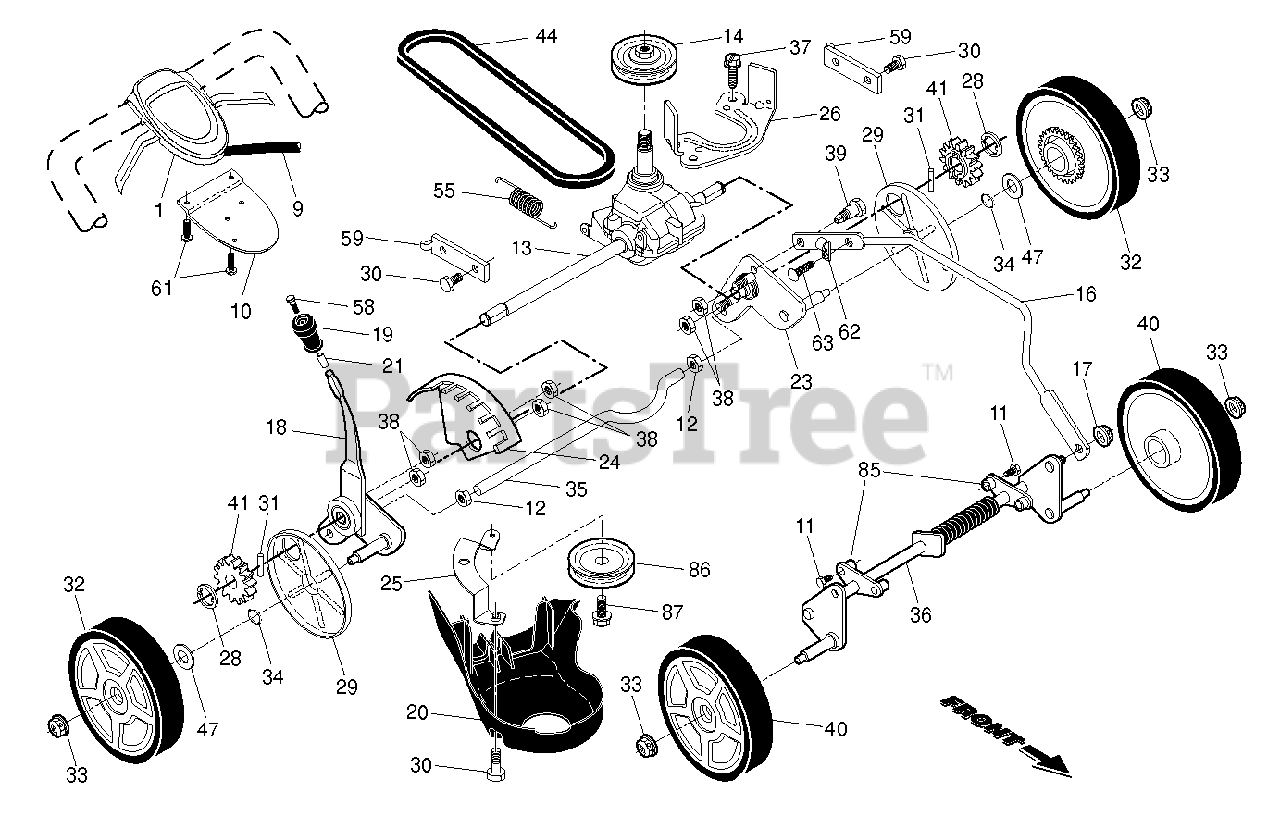

DRIVE Parts Diagram

  • Title

1

Poulan 581950506

CONTROL.EZ2.22+RG.ST.BLK/BLACK

Note: Includes Cable

$96.99

$

In Stock, only 1 left!

0

9

Poulan 581952101

CABLE.DRIVE.RWD.WALK.

Note:

$34.99

$

In Stock, Qty 20+

0

10

Poulan 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

Note:

$

$

Not available

11

Poulan 817411312

SCREW.HX.13X.750

Note:

$7.49

$

In Stock, Qty 20+

0

12

Poulan 873940800

NUT.HEX.1/2-20

Note:

$7.49

$

In Stock, only 4 left!

0

13

Poulan 581680801

TRANSMISSION.22+AWD.WALK.MOWER
(Superseded to 532434564)

Note:

$148.99

$

In Stock, Qty 20+

0

14

Poulan 532194128

PULLEY

Note:

$20.99

$

In Stock, Qty 10

0

16

Poulan 532430030

ROD.CONNECTING.RGD.22+.HW.BLAC

Note:

$20.99

$

In Stock, only 1 left!

0

17

Poulan 532751153

NUT.LOCK.5/16-18

Note:

$4.99

$

In Stock, only 2 left!

0

18

Poulan 532436445

Note:

$

$

Currently unavailable

19

Poulan 532433996

KNOB.SEL.SPRING.22+.SP.RIB.BLK

Note:

$6.99

$

Usually ships in 3-10 days

0

20

Poulan 580806901

COVER.REAR.DRIVE.22+2013

Note:

$31.99

$

In Stock, only 1 left!

0

21

Poulan 532435242

SCREW.PLASTIC.ANCHOR.5/16

Note:

$5.99

$

Usually ships in 3-10 days

0

23

Poulan 532432432

Note:

$

$

Currently unavailable

24

Poulan 532433511

BRACKET.WHL.ADJ.9.POS.W/PAD

Note:

$15.99

$

Usually ships in 3-10 days

0

25

Poulan 581313802

BRACKET.DRIVE.COVER.RGD.

Note:

$11.99

$

Usually ships in 3-10 days

0

26

Poulan 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

Note:

$

$

Not available

28

Poulan 812000058

E-RING 7/16 RE

Note:

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 581840401

COVER.DUST.WHEEL.INNER.WALK

Note:

$6.99

$

In Stock, only 3 left!

0

30

Poulan 817000510

BOLT.5/16HEX.WHS.HD

Note:

$7.49

$

In Stock, Qty 12

0

31

Poulan 532404845

PAWL, DRIVE

Note:

$5.99

$

In Stock, only 3 left!

0

32

Poulan 581685501

Wheel, 8" X 1.75 5-Spoke Rad3.Black

Note:

$24.99

$

Usually ships in 3-10 days

0

33

Poulan 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

Note:

$4.99

$

In Stock, Qty 20+

0

34

Poulan 532197480

O-RING..070X.487.NEOPRENE

Note:

$7.49

$

Usually ships in 3-10 days

0

35

Poulan 532430598

AXLE.REAR.RGD

Note:

$45.99

$

Usually ships in 3-10 days

0

36

Poulan 532447189

AXLE.ASM.FRT.RGD.BZP
(Superseded to 583762601)

Note:

$

$

Not available

37

Poulan 532163409

SCREW

Note:

$7.49

$

In Stock, Qty 6

0

38

Poulan 532191730

NUT.HEX.FLANGE.1/4

Note:

$7.49

$

In Stock, Qty 5

0

39

Poulan 532407059

SHOULDER BOLT SEMI GIMLET PT.

Note:

$6.49

$

In Stock, only 1 left!

0

40

Poulan 581009408

WHEEL.8X1.75.CF5SPK.RAD3.BLACK
(Superseded to 532435691)

Note:

$24.99

$

In Stock, only 2 left!

0

41

Poulan 532404835

PINIION.14.TOOTH.RGD

Note:

$6.99

$

In Stock, Qty 9

0

44

Poulan 532406557

BELT.DRIVE.RGD.SS.WALK
(Superseded to 580364604)

Note:

$13.99

$

In Stock, Qty 9

0

47

Poulan 532067725

WASHER FLUT

Note:

$7.49

$

In Stock, Qty 20+

0

55

Poulan 581351301

SPRING.RETURN.AUTO.

Note:

$10.99

$

In Stock, Qty 5

0

58

Poulan 532435241

SCREW.12-14X1.500

Note:

$4.99

$

Usually ships in 3-10 days

0

59

Poulan 532442113

BRACKET.SUPPORT.22+RWGD.BZP

Note:

$

$

Not available

61

Poulan 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

Note:

$7.49

$

In Stock, Qty 6

0

62

Poulan 532197991

CLIP.CABLE.BLK

Note:

$7.49

$

In Stock, Qty 6

0

63

Poulan 532428124

FASTENER.PUSH.O.250X0.783

Note:

$6.49

$

In Stock, only 2 left!

0

85

Poulan 532439077

BRACKET.FRT.AXLE.SUPPORT

Note:

$26.99

$

Usually ships in 3-10 days

0

86

Poulan 580364301

PULLEY.AWD.IDLER
(Superseded to 587969201)

Note:

$14.99

$

In Stock, only 4 left!

0

87

Poulan 581127601

SCREW

Note:

$7.99

$

In Stock, Qty 10

0
