PR 121 ES (961820017-02) - Poulan Pro Snow Thrower (2018-01) ENGINE Parts Diagram

Snow Thrower

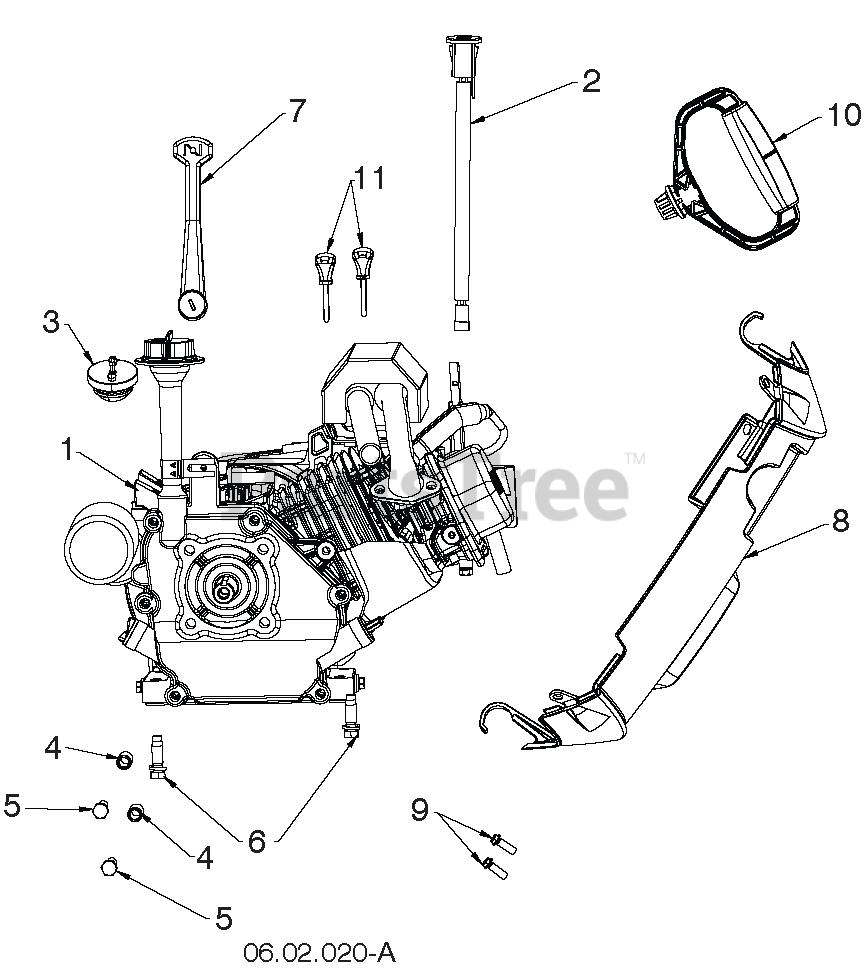

ENGINE Parts Diagram

  • Title
1

Poulan 580810801

ENGINE.LCT.208CC.US.SST

Note: LCT PW3HK1865018E

$854.99

$

Usually ships in 3-10 days

0

2

Poulan 532435407

KEY HOUSING
(Superseded to 532424954)

$28.99

$

In Stock, Qty 6

0

3

Poulan 532436235

RP BULB.PRIMER
(Superseded to 532424949)

$13.99

$

Usually ships in 3-10 days

0

4

Poulan 532434857

SPACER.ENGINE

$6.99

$

Usually ships in 3-10 days

0

5

Poulan 532435578

SCREW. 5/16-24 X 2.00"HHCS

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 (AYP part number)

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 532434874

LEVER.CHOKE

$5.99

$

Usually ships in 3-10 days

0

8

Poulan 532437658

COVER REAR.LOWER.SSST.BLACK

$43.99

$

Usually ships in 3-10 days

0

9

Poulan 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

10

Poulan 532436276

RP HANDLE.STARTER
(Superseded to 532443899)

$17.99

$

Usually ships in 3-10 days

0

11

Poulan 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

Usually ships in 3-10 days

0
