PR 121 ES (961820017-02) - Poulan Pro Snow Thrower (2018-01) DRIVE Parts Diagram

Snow Thrower

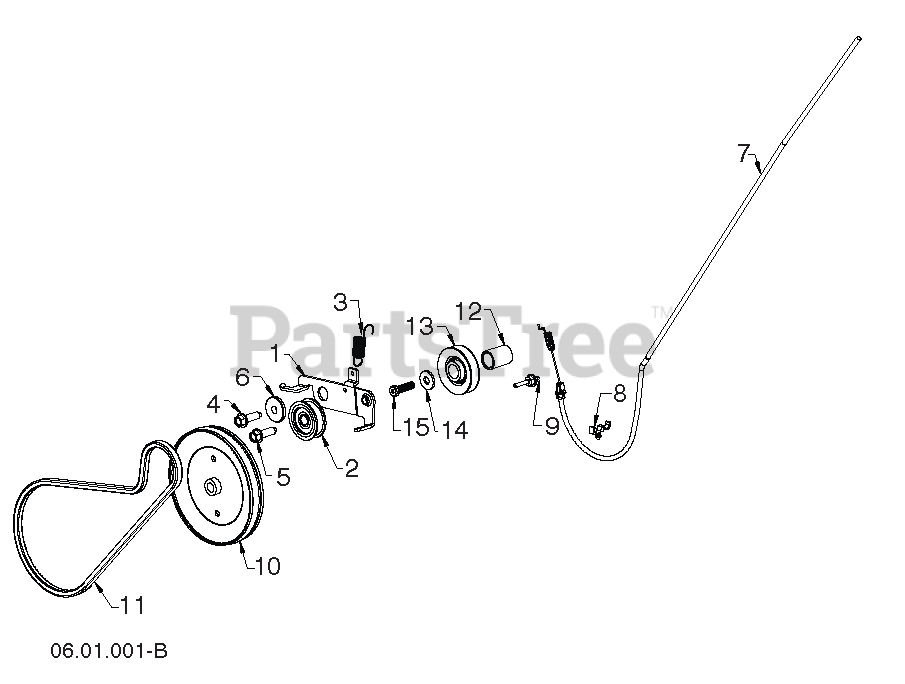

DRIVE Parts Diagram

  • Title

1

Poulan 580855301

ARM.IDLER.PNT

$20.99

$

Usually ships in 3-10 days

0

2

Poulan 532166043

IDLER PULLEY

$31.99

$

In Stock, only 2 left!

0

3

Poulan 532434859

SPRING.EIDLER.PULLEY.RETURN

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 817060620

SCREW.3/8-16

Note: TORQUE 13-18 FT-LBS

$7.49

$

In Stock, Qty 11

0

5

Poulan 817060620

SCREW.3/8-16

Note: TORQUE 22-27 FT-LBS

$7.49

$

In Stock, Qty 11

0

6

Poulan 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

7

Poulan 532443018

CABLE.CLUTCH.SSST.SHORT

$31.99

$

In Stock, Qty 7

0

8

Poulan 532145006

Clip, Push-In Hinged (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 532434502

KEEPER.ENGINE.BELT

$6.99

$

Usually ships in 3-10 days

0

10

Poulan 532435383

PULLEY.DRIVEN

$62.99

$

Usually ships in 3-10 days

0

11

Poulan 532437261

BELT.4L.1/2X35
(Superseded to 532413592)

$34.99

$

In Stock, only 2 left!

0

12

Poulan 532434860

SPACER.ENGINE.CRANK

$4.99

$

Usually ships in 3-10 days

0

13

Poulan 532426490

PULLEY.ENG.TRACTION

$15.99

$

Usually ships in 3-10 days

0

14

Poulan 532851074

Washer, Hardened (AYP part number)

$4.99

$

In Stock, only 4 left!

0

15

Poulan 532430817

BOLT, SCKT HD 3/8-24 X 1 .25

$4.99

$

Usually ships in 3-10 days

0
