PR 121 ES (961820017-02) - Poulan Pro Snow Thrower (2018-01) COVER Parts Diagram

Snow Thrower

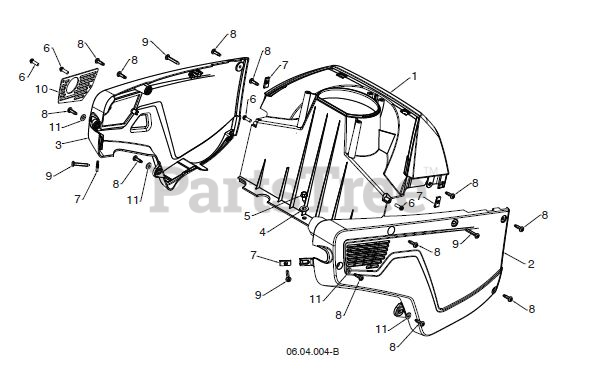

COVER Parts Diagram

  • Title
1

Poulan 584990303

PLENUM.AUGER.SS.SNO.POULAN PRO

$68.99

$

Usually ships in 3-10 days

0

2

Poulan 584989906

COVER.NON-DRIVE.SIDE.POUL PRO

Note: NON-DRIVE SIDE

$

$

Not available

3

Poulan 584990006

COVER.DRIVE SIDE.POULAN PRO

Note: DRIVE SIDE

$

$

Not available

4

Poulan 819131316

Washer 13/32 x 1-3/16 x 12 Gauge (AYP part number)

$4.99

$

In Stock, Qty 5

0

5

Poulan 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

6

Poulan 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

$4.99

$

In Stock, only 3 left!

0

8

Poulan 532442250

SCREW.PAN.HD.TORX.1/4-20X.750

$6.49

$

Usually ships in 3-10 days

0

9

Poulan 532444262

SCREW.1/4-20.PAN.HEAD.TORX.

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 580833501

PLATE.EXHAUST.SINGLE.STAGE.SNO

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 819091016

Washer 9/32 x 5/8 x 16 Gauge (AYP part number)
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0
