PR 121 ES (961820017-00) - Poulan Pro Snow Thrower (2014-07) ENGINE Parts Diagram

Snow Thrower

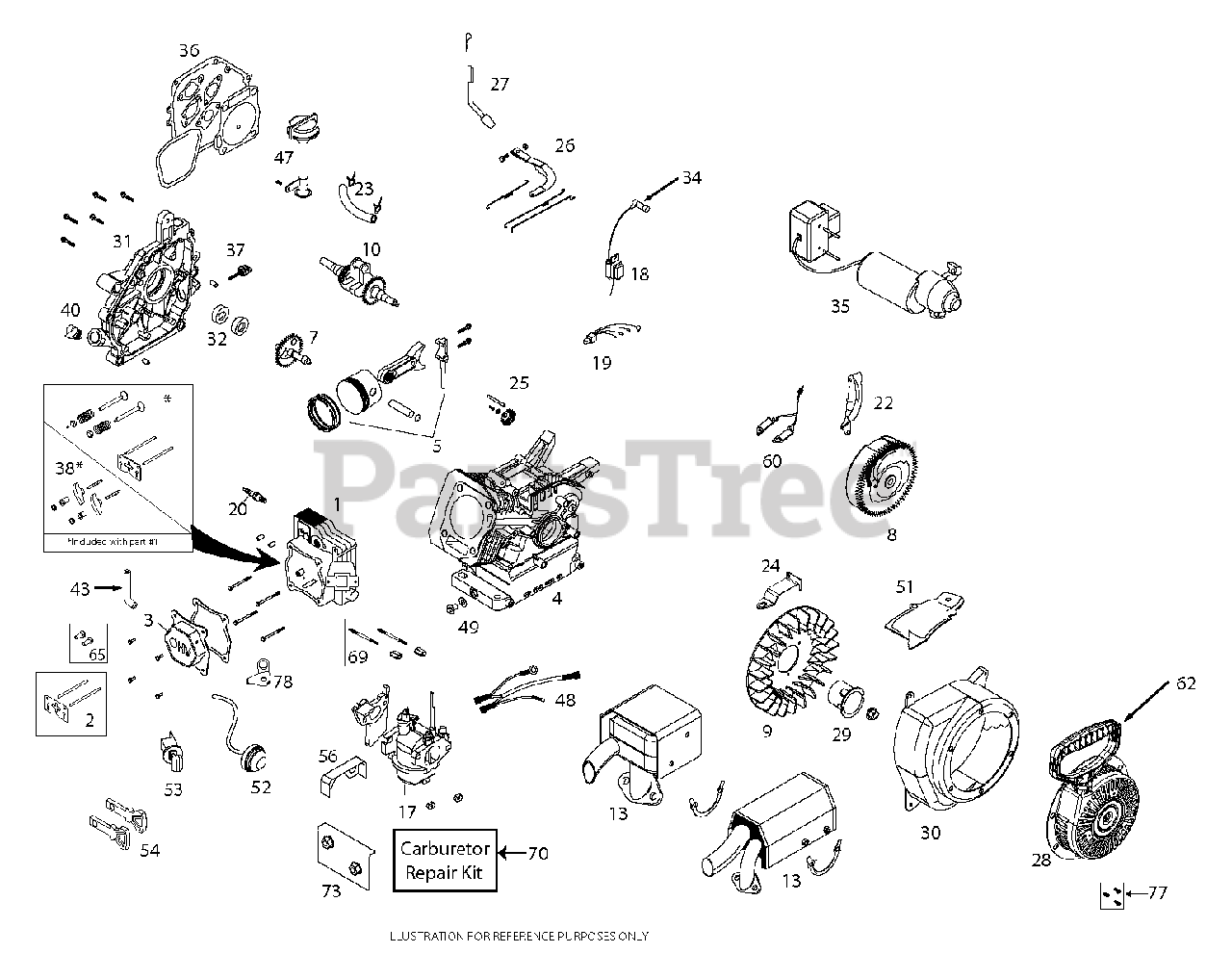

ENGINE Parts Diagram

  • Title

1

Poulan 532438006

HEAD.CYLINDER.ASSEM.LCT.136CC

$

$

Not available

2

Poulan 532438011

KIT.PUSH.ROD.LCT.136CC

$

$

Not available

3

Poulan 580941501

COVER.VALVE.ASSEM.LCT.136CC

$

$

Not available

4

Poulan 532438012

CYLINDER.ASSEM.LCT.136CC

$

$

Not available

5

Poulan 532438007

PISTON.&.ROD.ASSEM.LCT.136CC

$91.99

$

Usually ships in 3-10 days

0

7

Poulan 532438005

CAMSHAFT.LCT.136CC.

$

$

Not available

8

Poulan 532437999

FLYWHEEL.MAN.START.136CC.LCT

$

$

Not available

9

Poulan 532438001

FAN.FLYWHEEL.LCT.SING/STAGE.SN

$

$

Not available

10

Poulan 532438009

CRANKSHAFT.LCT.136CC

$250.99

$

Usually ships in 3-10 days

0

13

Poulan 532437989

MUFFLER.LCT.SINGLE/STAGE.SNOW.

$78.99

$

In Stock, only 1 left!

0

17

Poulan 532437990

CARBURETOR.SNOW.LCT.136CC
(Superseded to 585020404)

$79.99

$

Usually ships in 3-10 days

0

18

Poulan 580941301

Ignition Coil, LCT

$74.99

$

Usually ships in 3-10 days

0

20

Poulan 532424939

SPARK.PLUG(2083810)

$31.99

$

In Stock, only 3 left!

0

22

Poulan 532437996

$

$

Not available

23

Poulan 532438014

KIT.FUEL.HOSE.208CC.SING/STAGE

$12.99

$

Usually ships in 3-10 days

0

24

Poulan 532429259

SPEED.CTRL.BRKT.(SKSN0150)

$13.99

$

Usually ships in 3-10 days

0

25

Poulan 532429646

GOVENOR.GEARS ASM(SK2082900)

$39.99

$

Usually ships in 3-10 days

0

26

Poulan 532438003

ARM.ASM.GOVNR.LCT.136CC

$

$

Not available

27

Poulan 532438004

SHAFT.GOVERNOR.LCT.136CC

$

$

Not available

28

Poulan 532436967

RECOIL.STRT.ROUND(BLK) SNOW

$53.99

$

Usually ships in 3-10 days

0

29

Poulan 532437991

CUP.STARTER.LCT.136CC.SNOW

$

$

Not available

30

Poulan 532437993

HOUSING.BLOWER.MANUAL.136CC

$

$

Not available

31

Poulan 580941201

CRANKCASE COVER.LCT.SKSN1360.1

Note: THREADED OIL-FILL TUBE

$79.99

$

Usually ships in 3-10 days

0

31

Poulan 581363501

COVER.CRANKCASE.LCT.136CC

Note: PRESS-IN OIL-FILL TUBE (SERIAL 1240H0519257)

$

$

Not available

32

Poulan 532438008

KIT.ENGINE.SEAL.LCT.136CC

$

$

Not available

34

Poulan 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$17.99

$

In Stock, only 1 left!

0

36

Poulan 532438013

KIT.GASKET.LCT.136CC

$

$

Not available

37

Poulan 532420961

DIPSTICK SMALL

$12.99

$

Usually ships in 3-10 days

0

38

Poulan 532438010

KIT ROCKER.ARM.LCT

$

$

Not available

40

Poulan 532429598

NON REMOVABLE PLUG

$13.99

$

Usually ships in 3-10 days

0

43

Poulan 580353401

TUBE.BREATHER.LCT.208

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 532444091

HIGH OIL-FILL TUBE ASSY

Note: THREADED OIL-FILL TUBE

$20.99

$

Usually ships in 3-10 days

0

47

Poulan 581007201

High Oil Fill Tube Assembly

Note: PRESS-IN OIL-FILL TUBE (SERIAL 1240H0519257)

$10.99

$

Usually ships in 3-10 days

0

48

Poulan 580941401

WIRING HARNESS LCT.SKSN0162.1

$

$

Not available

49

Poulan 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 3 left!

0

51

Poulan 580941101

CYLINDER COVER

$

$

Not available

52

Poulan 532437123

BULB.FUEL.PRMR.W/HOSE(SKSNO306
(Superseded to 532424949)

$13.99

$

Usually ships in 3-10 days

0

53

Poulan 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$28.99

$

In Stock, Qty 6

0

54

Poulan 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

In Stock, only 1 left!

0

56

Poulan 532429260

SHIELD.VAPOR.SNOW

$17.99

$

In Stock, only 1 left!

0

62

Poulan 532424968

STARTER.GRIP.SNOW.LCT.SKSN0603
(Superseded to 532443899)

$17.99

$

Usually ships in 3-10 days

0

69

Poulan 532424951

CARB.STUDS & COUPLING KIT.SNOW

$21.99

$

Usually ships in 3-10 days

0

70

Poulan 580353601

CARB.REPAIR.KIT.LCT.SK9900.1

$120.99

$

Usually ships in 3-10 days

0

73

Poulan 532444275

SHIELD.INTAKE.(LCT.SKSN0140.1)

$20.99

$

Usually ships in 3-10 days

0

77

Poulan 532432688

BOLT.KIT.RECOIL.LCT.ALL.ENGINE

$4.99

$

In Stock, only 2 left!

0
